XL Portrait Wall Mount For Ultrawide Displays

BT9923

For 21:9 Displays




The BT9923 is designed to mount XL ultrawide displays to a wall in portrait orientation. The mount is supplied with adaptor arms with vertical vesa fixings up to 1500mm; making it compatible with a wide selection of 21:9 ratio ultrawide displays. The low profile design mounts the display at a depth of 57.5mm (with adaptors) from the wall for a neat and tidy install whilst also allowing easy access to the connectors.






  • Ideal for wall mounting 21:9 ratio widescreens in a portrait orientation

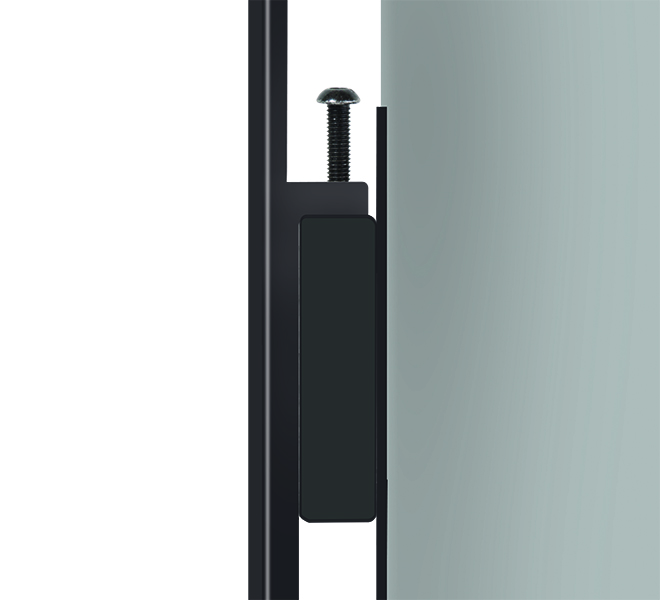

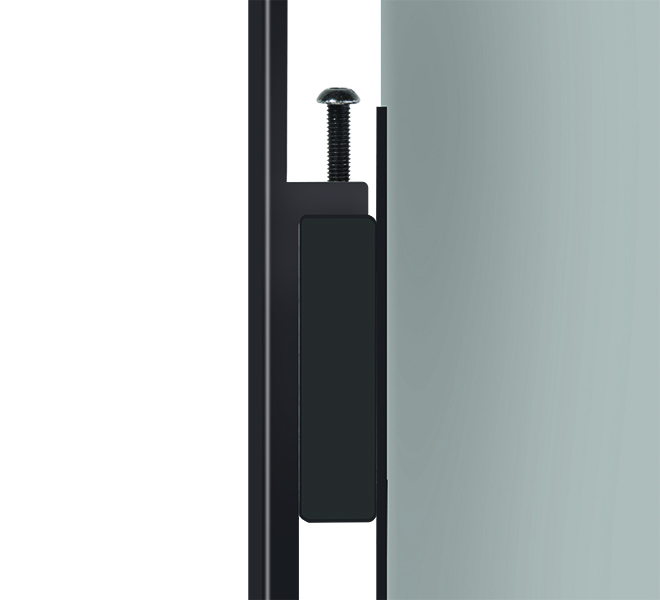

  • Arms feature levelling screws to adjust the screen height
  • Suitable for screens with VESA 400x1000, 600x1000mm & 600x1500mm fixings
  • Safety screws help prevent unauthorised removal of screens
  • High end aesthetic quality with stylish end caps for a neat
    and tidy install
  • All mounting hardware included
  • Screen size: 105"-120" (267cm-305cm)
  • Max load: 200kg (440lbs)
  • Max VESA® fixings: 1500 x 600
  • Dimensions (Without adaptors): W:705mm (27.7") x H:1256mm (49.5") x D:51.5mm (2.02")
  • Colour: Black

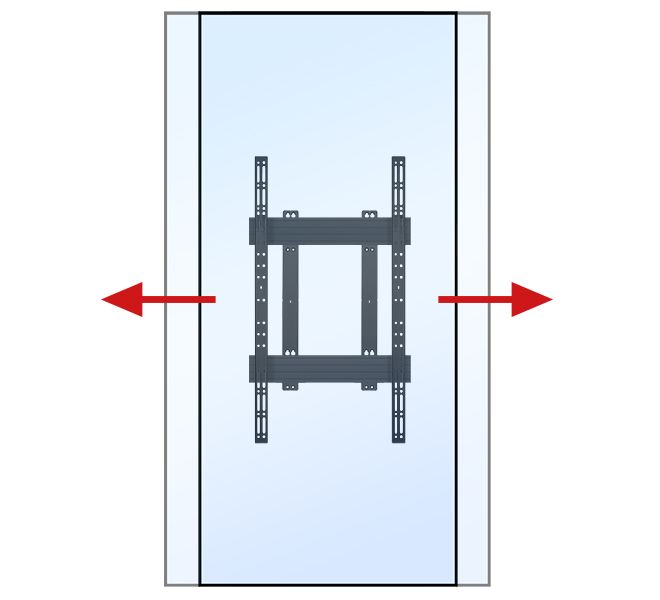

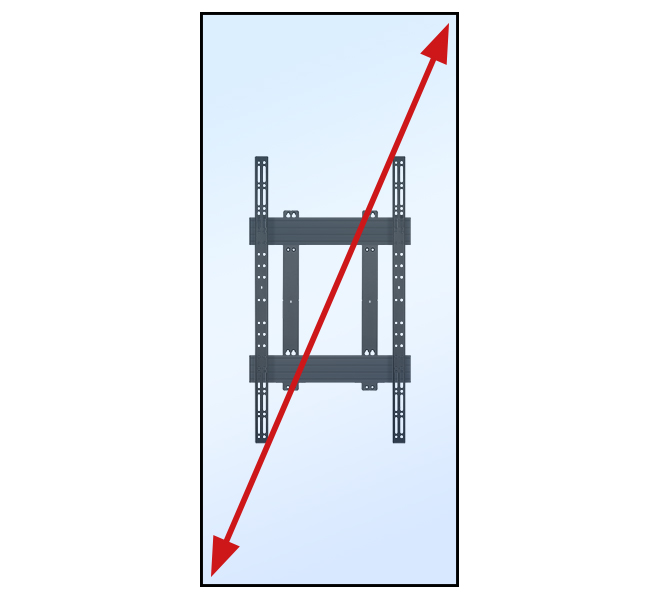

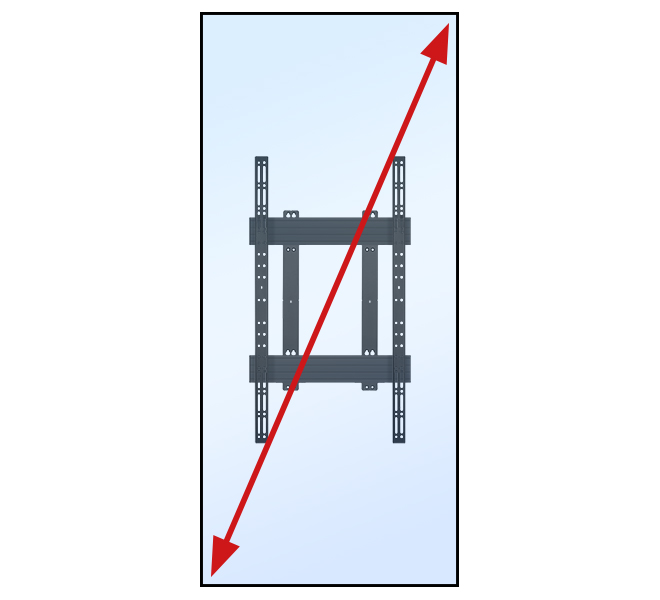

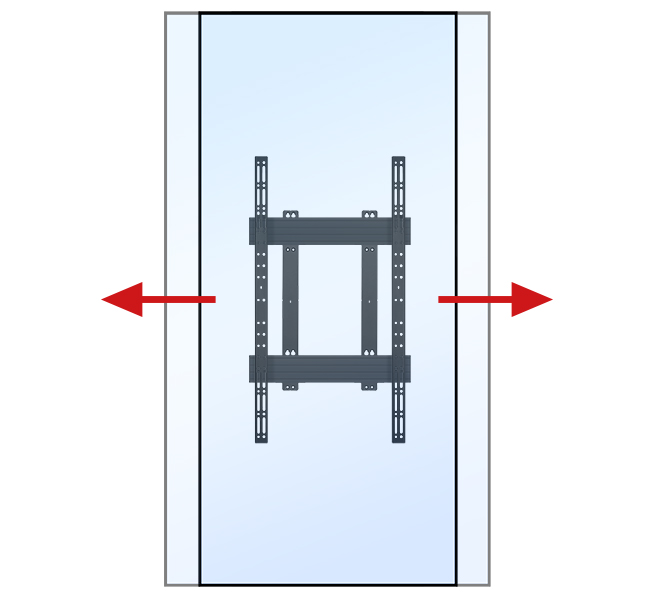

Low profile design for a close to the wall installation Arms feature levelling screws to adjust the screen height Mounts screens up to 120 Easy lateral adjustment of the screen once mounted

Specification Sheet

Specification Sheet (PDF) - English



Technical Drawing

Technical Drawing (PDF)
