Flat Screen Wall Mount

BTV514

With Double Arm

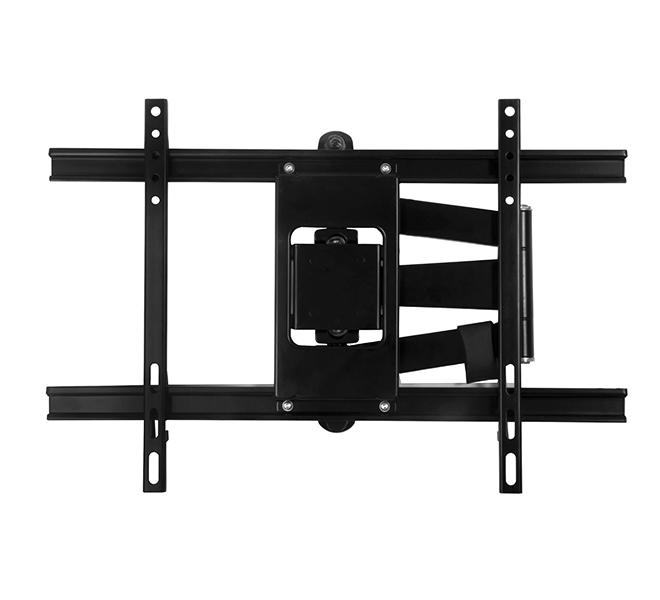

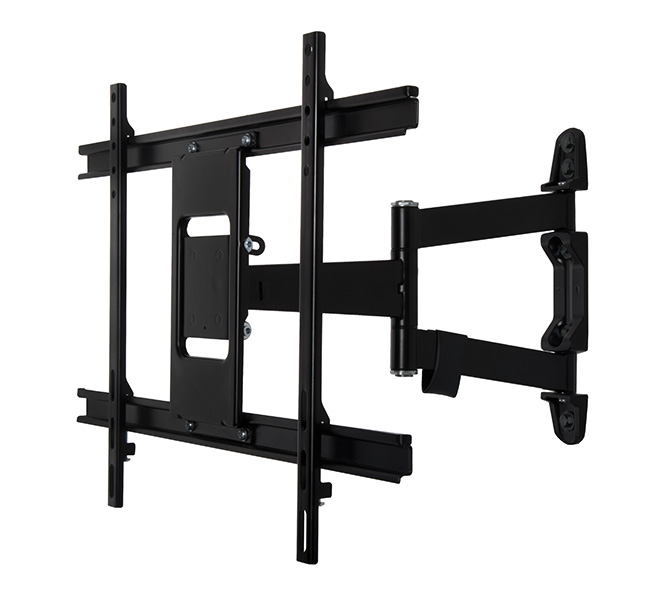

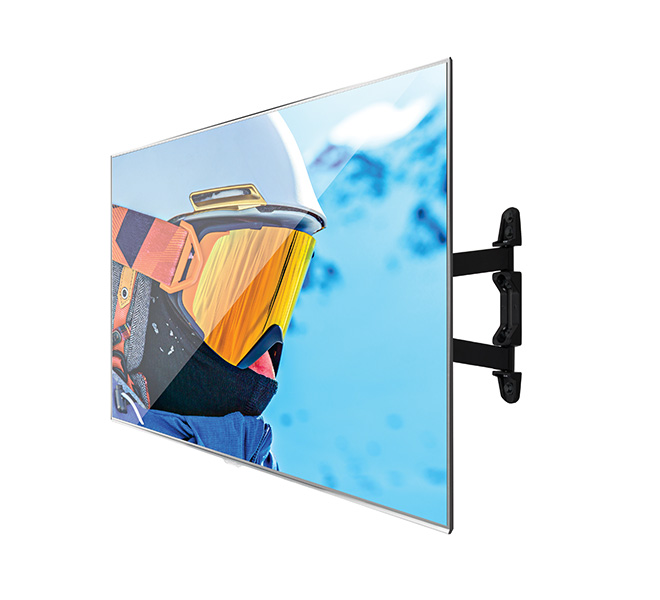

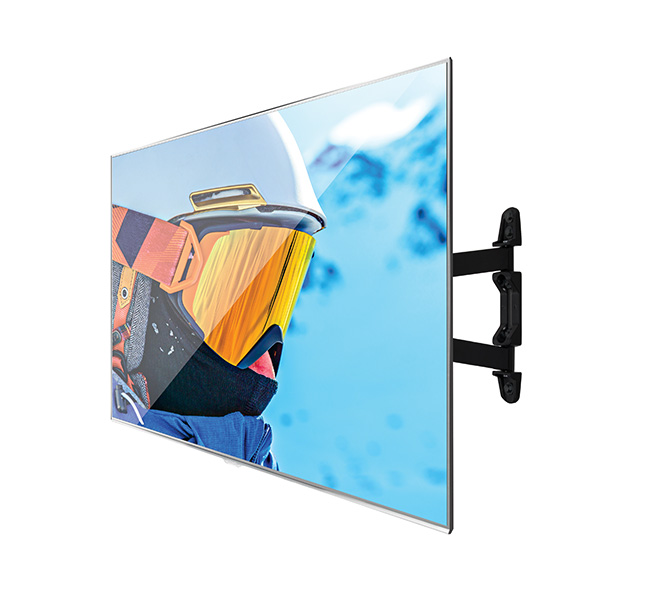

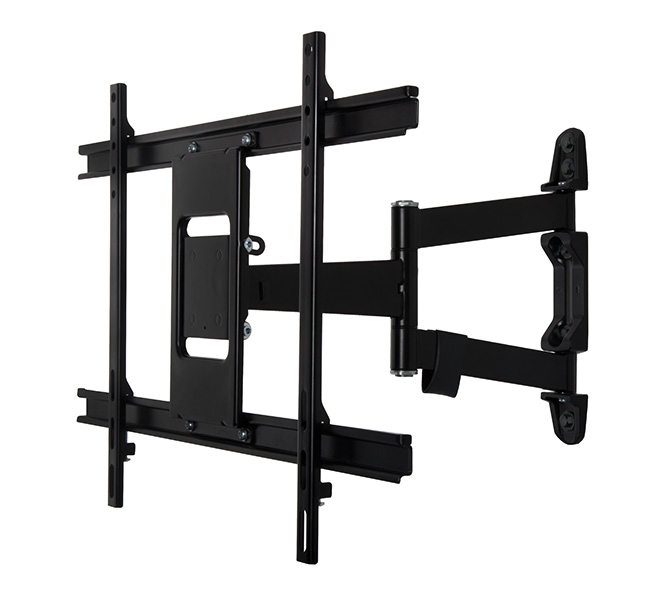

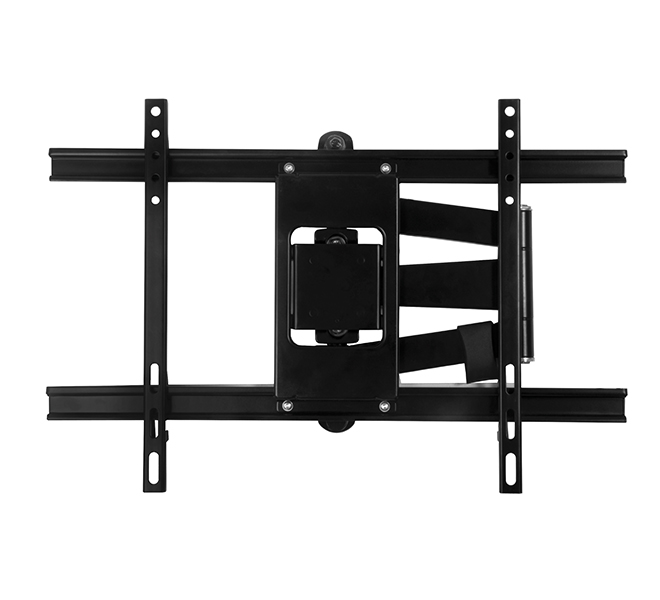

Designed to mount large sized screens, this ultra-slim wall mount with double arm features a tilting interface and three swivel points, allowing quick and easy repositioning of screens, whether folded flat to the wall or at maximum extension. Cable management is included to help make a neat and tidy mounting solution which is ideal for home installations as well as commercial applications.



  Ventry™ Ultra-Slim Double Arm Flat Screen Wall Mount with Tilt and Swivel
  • Universal screen interface suitable for all screens
  • Ultra-slim design allows close to the wall installation when folded flat
  • Double arm for extended reach - ideal for corner mounting
  • Lateral adjustment of screen once mounted
  • Cable management clip included
  • Simple 'hook-on' installation
  • All mounting hardware included
  • Recommended screen size: up to 60" (152cm)
  • Max load: 35kg (77lbs)
  • VESA® & non-VESA fixings: up to 600 x 400mm
  • Tilt: +10°/-2°
  • Swivel: 180°
  • Distance from wall: Min: 40mm (1.6”) - Max: 450mm (17.7”)

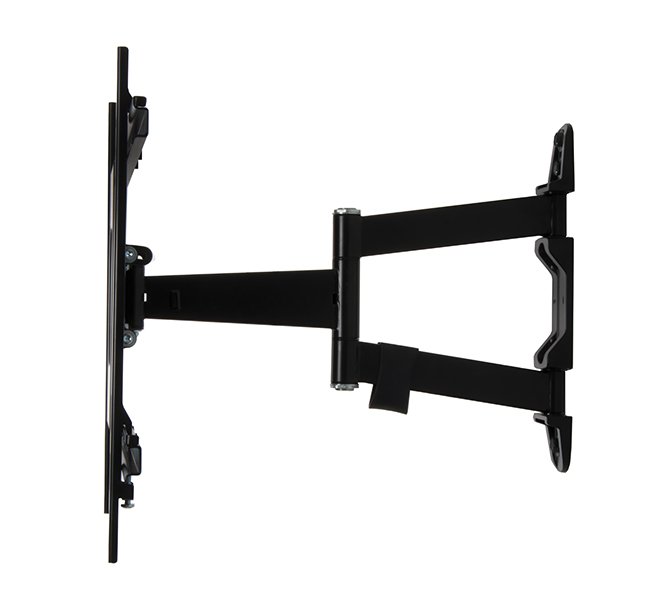

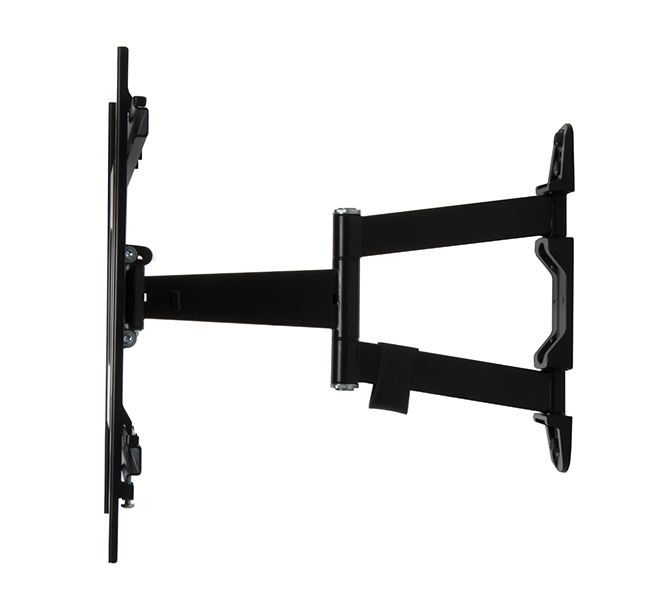

Double arm for extended reach Ultra-slim design mounts screen only 40mm from wall when folded flat 3 pivot points for easy screen positioning Cable management clip included

Specification Sheet

Specification Sheet (PDF)

Technisches Datenblatt - Deutsch (PDF)

产品规格书 — 中文(PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

BTV514 - Technical Drawing (PDF)

BTV514 - Technical Drawing (DXF)
