Universal Flat Screen Wall Mount

BTV520

For Extra-Large Screens




Designed to mount large sized screens just 20mm from the wall, with its low-profile design the BTV520 is ideal for home installations. Suitable for concrete, brick or stud walls up to 32”, this mount features a simple ‘hook-on’ installation and post installation screen alignment to make screen mounting as quick and simple as possible. The BTV520 also features a security locking bar to help prevent un-authorised removal of the screen. All mounting hardware included.

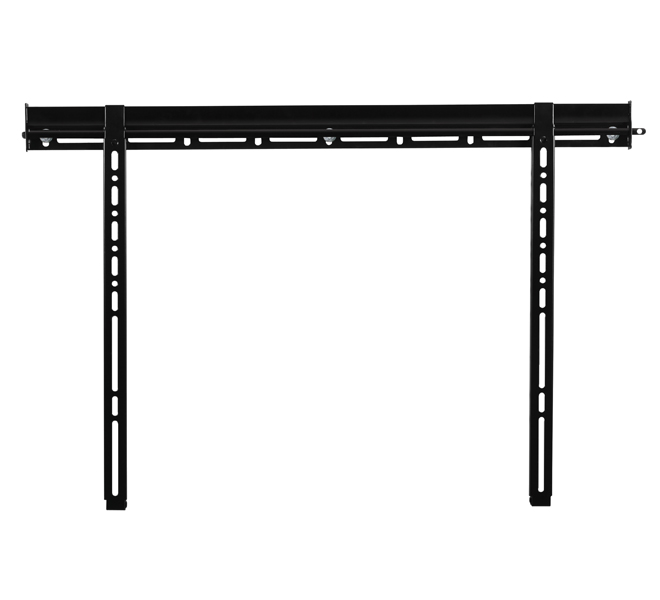

  BTV520 Ventry™ Flat Screen Wall Mount - Front View
  • Low profile design for a close to the wall installation
  • Post installation screen alignment for perfect screen positioning
  • Security locking bar to prevent unauthorised screen removal
  • Suitable for concrete, brick or stud walls up to 32”
  • Simple ‘hook-on’ installation
  • All mounting hardware included
  • Recommended screen size: up to 65” (165cm)
  • Max load: 70kg (154lbs)
  • VESA® & non-VESA fixings: up to 825 x 500
  • Distance from wall: 20mm (0.8”)
  • Colour: Black

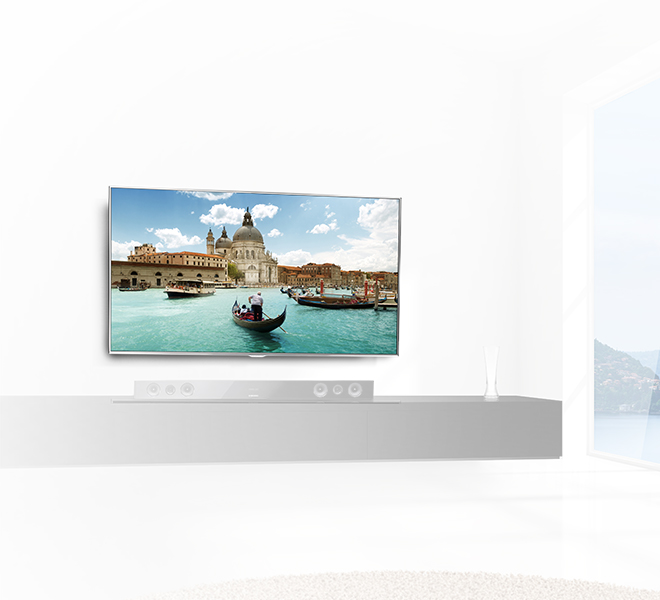

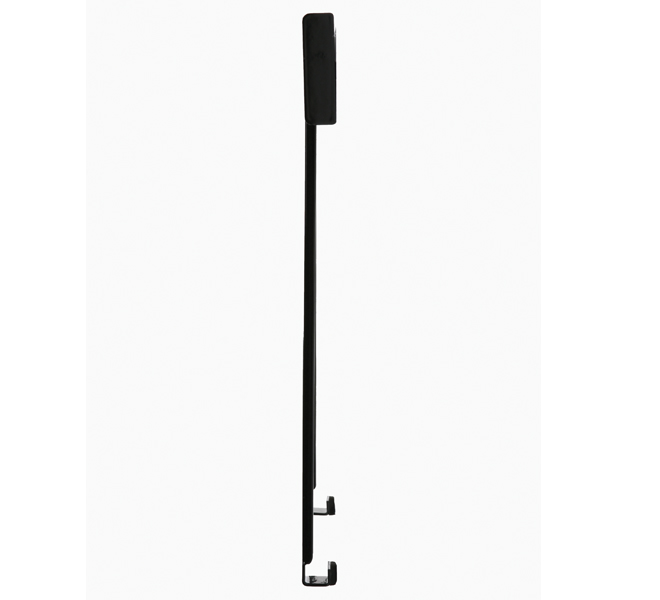

BTV520 - Extra Large Flat Screen Wall Mount - Front View BTV520 Extra Large Flat Screen Wall Mount - Security Locking Bar BTV520 Extra Large Flat Screen Wall Mount - Low Profile Design BTV520 Extra Large Flat Screen Wall Mount - Lifestyle Image

Specification Sheet

Specification Sheet (PDF)



Installation Guide

Installation Guide (PDF)

Instrucciones de Instalación – Español (PDF)



Technical Drawings

Technical Drawings (DXF)



Greensheet

Greensheet (PDF)

You must log in to view this content
