Flat Screen Articulating Wall Mount For Screens Up To 75”

XRWALLA

Ideal For Screens Up To 80kg




Designed for medium and large sized screens, the XRWALLA supports weights up to 80kg and features a low-profile design that mounts screens just 73mm from the wall. The universal interface accommodates mounting patterns up to 600 x 400mm and comes with adjustment screws which allow the screen to be levelled once mounted.






  • Twin arms with three swivel points for a multitude of positioning options
  • Folds flat to the wall
  • Central keyhole fixing point for an easy fix and level adjustment
  • Six cable management clips supplied to ensure a tidy install
  • All fixing points are concealed behind attractive coverplates to hide fixings
  • Mount has a 699mm extension range from the wall
  • Turn screens from left to right
  • Levelling screws allow adjustment of screen height
  • Security fixings prevent unauthorised removal
  • Padlock tabs on arms for additional security (padlock not included)
  • Recommended screen size: 32” (81cm) up to 75” (190cm)
  • Max load: 80kg (176lbs)
  • VESA compatibility: 200mm x 100 up to 600mm x 400mm
  • Distance from wall (flat): 73mm (2.9”)
  • Distance from wall (extended): 699mm (27.5")
  • Swivel: 120°
  • Colour: Black

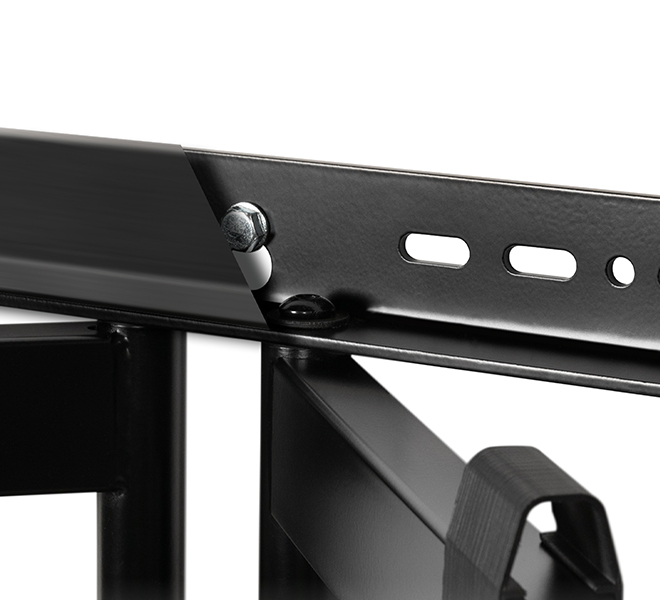

XRWALLA - Twin arms with three swivel points for a multitude of positioning options XRWALLA - Padlock tabs on arms for additional security (padlock not included) XRWALLA - Six cable management clips supplied to ensure a tidy install XRWALLA - All fixing points are concealed behind attractive coverplates to hide fixings

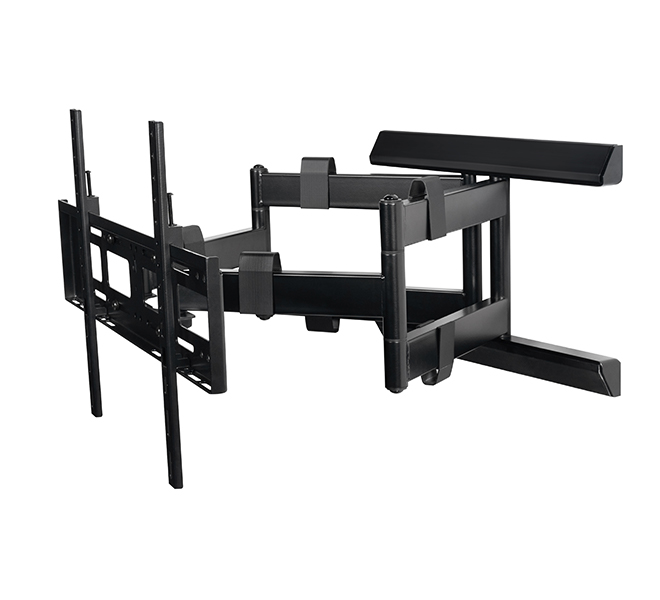

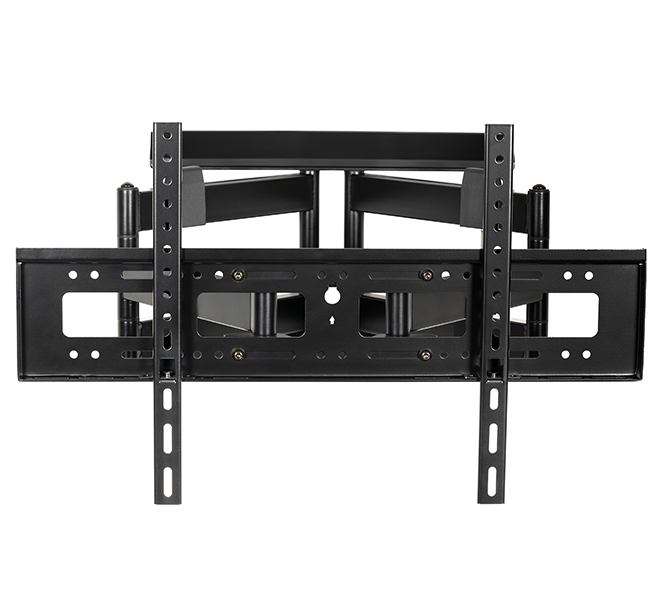

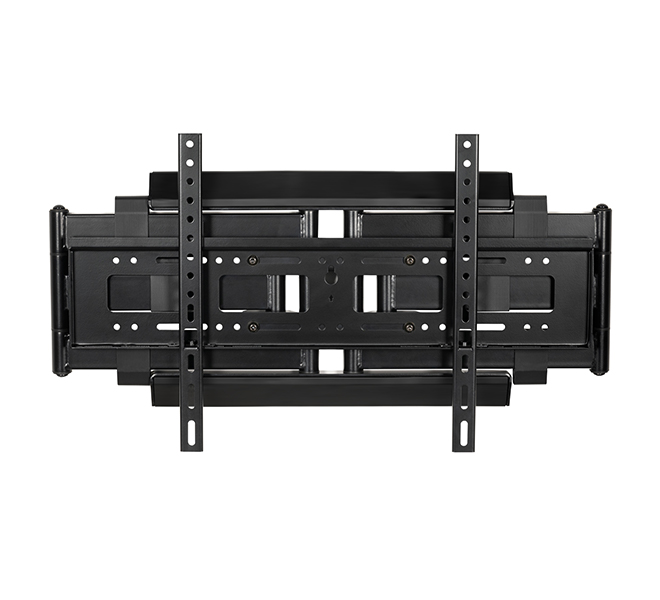

XRWALLA - Front three quarter view open XRWALLA - Front three quarter view closed XRWALLA - Front view open XRWALLA - Front view closed

Product Overview Video


Specification Sheet

Specification Sheet - English (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)

You must log in to view this content
