System X™ Collar Mounting Bracket

BT8390-CFK

For pole mounted installations




The BT8390-CFK bracket allows BT8390 horizontal mounting rails to be fitted to B-Tech accessory collars, for use in a variety of different pole mounted configurations such as ceiling mounted menu boards and video walls. The 5mm thick steel plate is capable of supporting heavy loads and can be mounted to any B-Tech accessory collar for use in single sided or back-to-back installs (additional BT8390-CFK required).

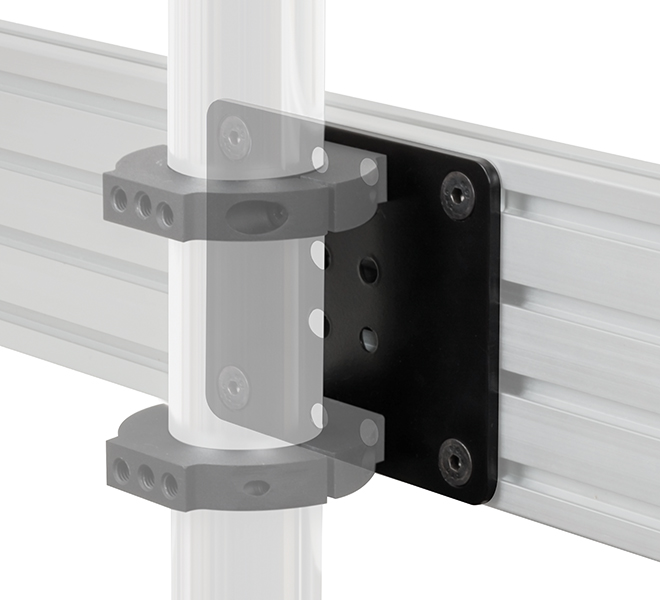

  • Use with B-Tech accessory collars to attach a BT8390 mounting rail to a pole

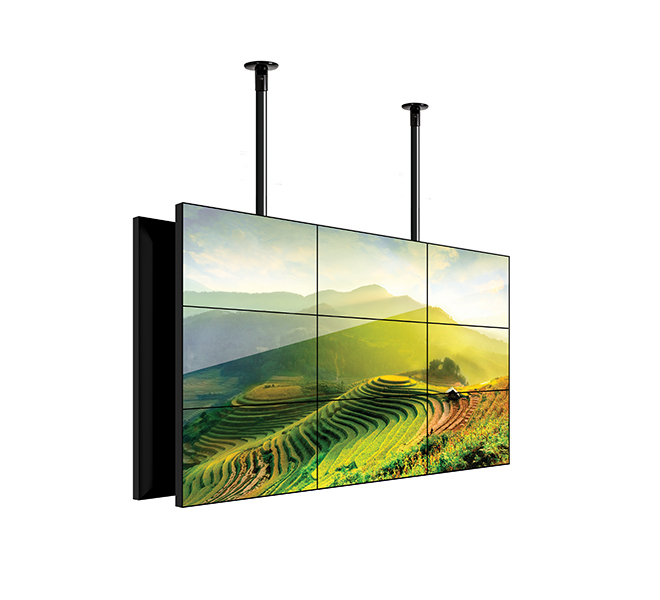

  • Ideal for ceiling mounted menu boards and videowall installations
  • Heavy duty steel plate capable of supporting heavy loads
  • Countersunk fixing holes keep the install looking neat and tidy
  • Suitable for back-to-back configurations (multiple brackets required)
  • Compatible with B-Tech’s 050mm and 060mm Accessory Collars

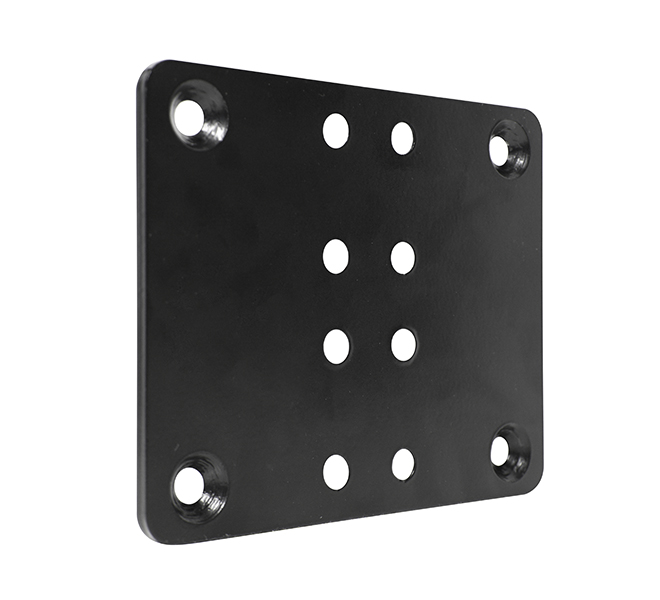

  • Steel thickness: 5mm
  • Brackets supplied per pack: 1

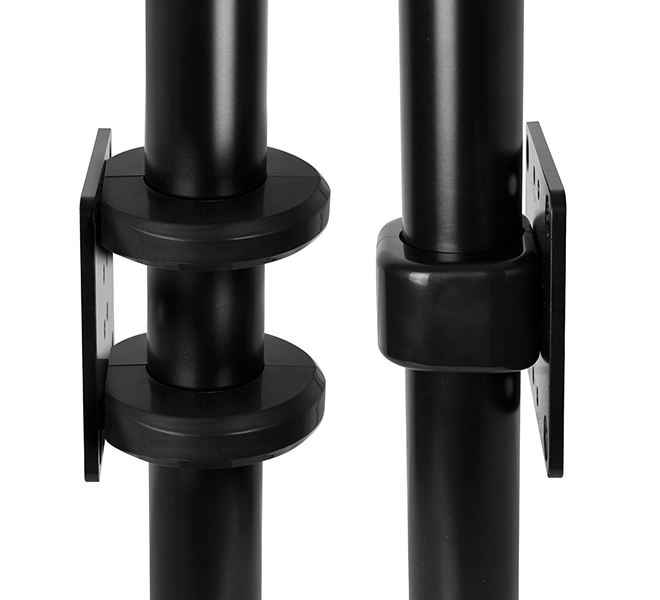

BT8390-CFK - System X™ Collar Mounting Bracket For use with 2x BT7841 2-Piece Collars or 1x BT7051 Countersunk fixing holes keep the install looking neat and tidy Heavy duty steel plate capable of supporting heavy loads

Specification Sheet (PDF)

Installation Guide (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)
