Flat Screen Ceiling / Desk Mount

BT7553

For Floor, Ceilings or Desktop Installs




The BT7553 is a flat screen mounting solution which can be used to mount screens up to 23kg from the ceiling, floor, or to a desktop. With easy tool-less adjustment of tilt, swivel and screen rotation, this mount is ideal for landscape or portrait screen mounting and makes it quick and simple to switch between the two. The BT7553 is available with a choice of Black or Chrome poles in a variety of different lengths to suit your need.





   BT7553 - Flat Screen Ceiling / Desk Mount
  • Mounts screens from the ceiling, floor or desktop
  • Available in 6 pole lengths:
    BT7553-025: 25cm Pole
    BT7553-050: 50cm Pole
    BT7553-100: 1m Pole
    BT7553-150: 1.5m Pole
    BT7553-200: 2m Pole
    BT7553-300: 3m Pole
  • Easy tool-less tilt, swivel and screen rotation mechanism
  • Quick and easy 'hook-on' installation
  • Supplied with a safety bolt for secure pole mounting
  • Included grub screws allow micro-adjustment of pole angle
  • Integrated cable management
  • All mounting hardware and fixings included
  • Recommended screen size: up to 28"
  • Max load: 23kg
  • VESA® compatibility: 75 x 75 and 100 x 100
  • Tilt as a ceiling mount: +90° / -15°
  • Tilt as a desk / floor mount: +15° / -90°
  • Swivel: 360°
  • Screen rotation: 360°
  • Pole lengths available: 0.25m, 0.5m, 1m, 1.5m, 2m and 3m
  • Colour (Ceiling/Floor Plate): Black
  • Colour (Poles): Black or Chrome
  • Colour (Interface Plate): Black

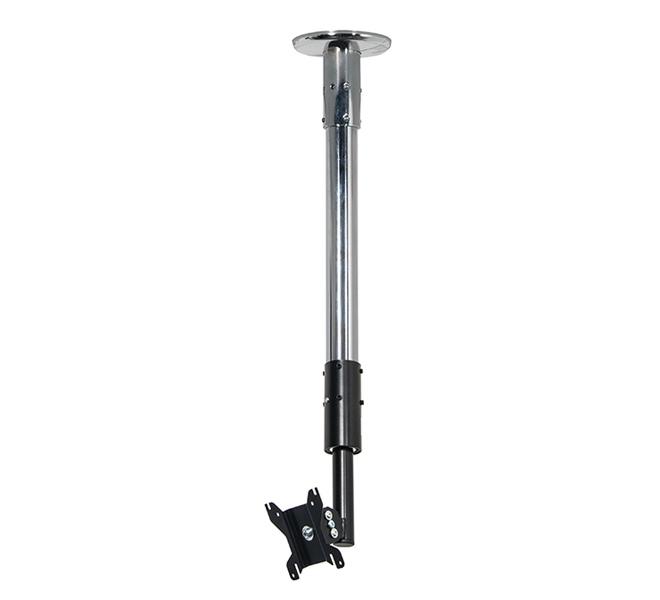

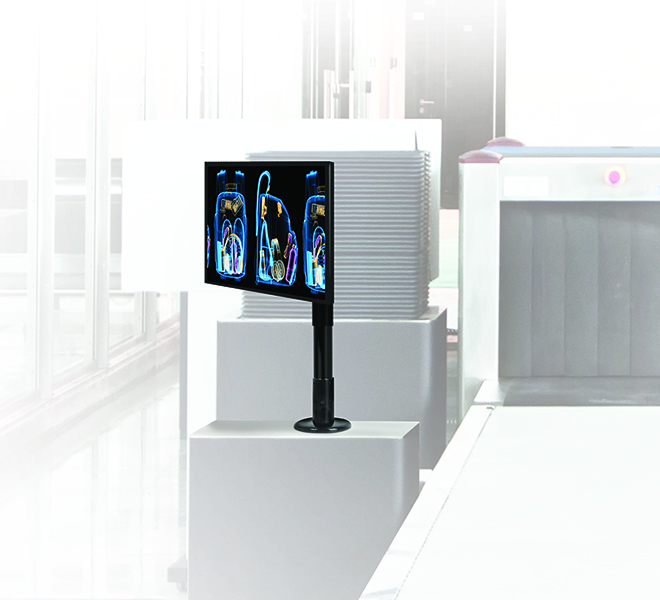

BT7553 - Flat Screen Ceiling / Desk Mount - Ideal for mounting screens from the ceiling, floor or to a desktop BT7553 - Flat Screen Ceiling / Desk Mount - Ideal for mounting screens from the ceiling, floor or to a desktop BT7553 - Flat Screen Ceiling / Desk Mount - Integrated Cable Mangement throughout the mount for a neat and tidy installation BT7553 - Flat Screen Ceiling / Desk Mount - Ceiling Mounted with Screen

Assembly Leaflet (PDF)

Specification Sheet (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)
