VESA Adaptor Arms

BT7540






Designed to increase the VESA mounting pattern of smaller mounts to accommodate larger screens, the BT7540 allows VESA 200 fixings to be increased to VESA 300 or 400. These adaptor arms keep the depth of the install to a minimum and can be used with a large variety of existing B-Tech products. All mounting hardware included.






  • Adaptor arms to mount screens with VESA 400 x 200mm, 300 x 200mm or 200 x 300mm fixings
  • For 200 x 300 use with any 200 x 200 mount as above plus 200 x 100 mount
  • Use 2 x BT7540 with any 200 x 200 mount to achieve 400 x 400 VESA fixings
  • M8 screen fixing screws included
  • Arms can also mount to a VESA 100mm mount if necessary
  • VESA® compatibility: 300 x 200 and 400x 200
  • Max load: Dependent on mount to which the BT7540 is attached
  • Depth increase to the install: 7mm
  • Colour: Black

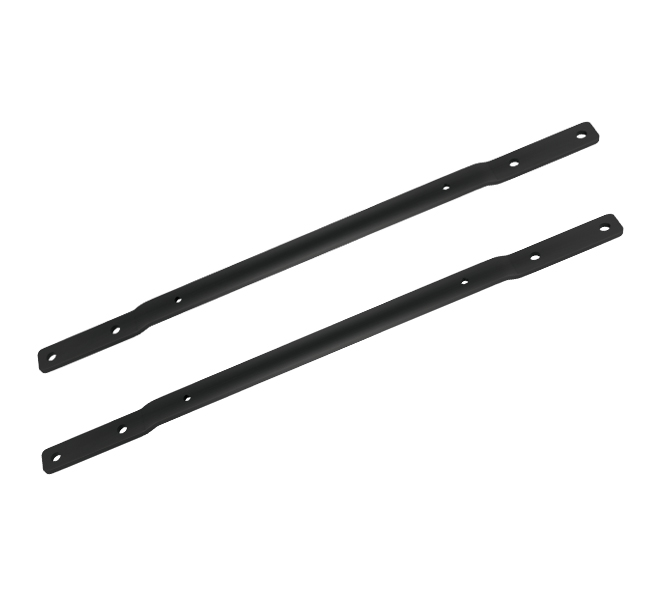

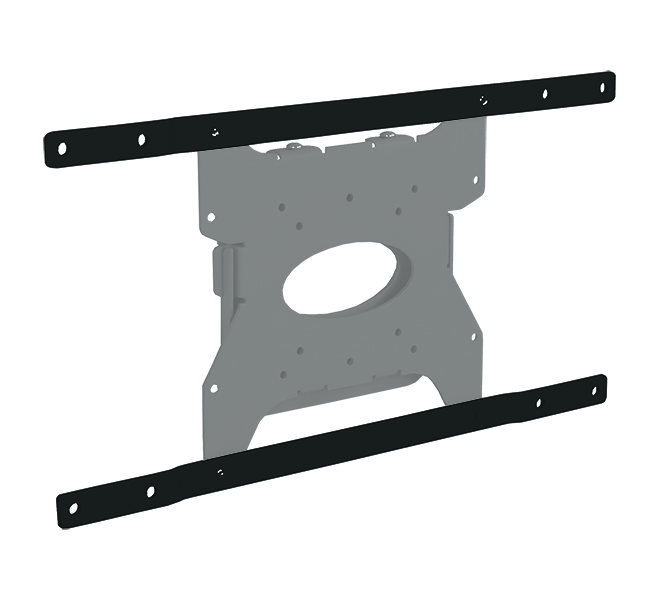

BT7540 - VESA Adaptor Arms - Front View BT7540 - VESA Adaptor Arms - with BT7532
