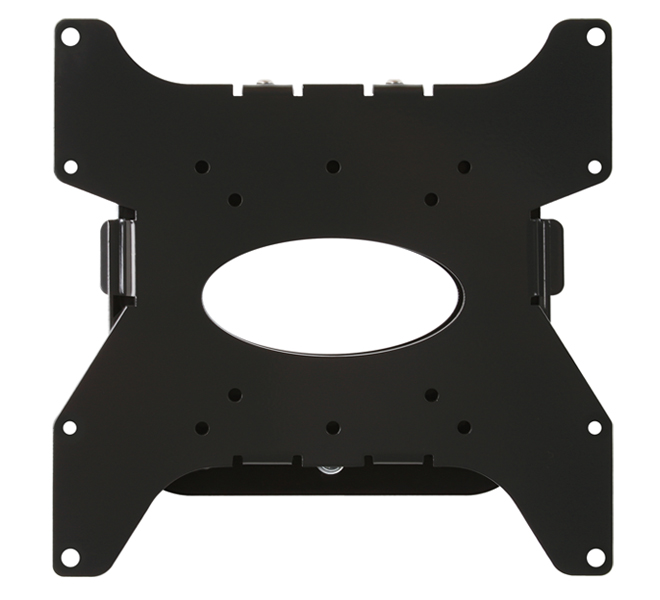

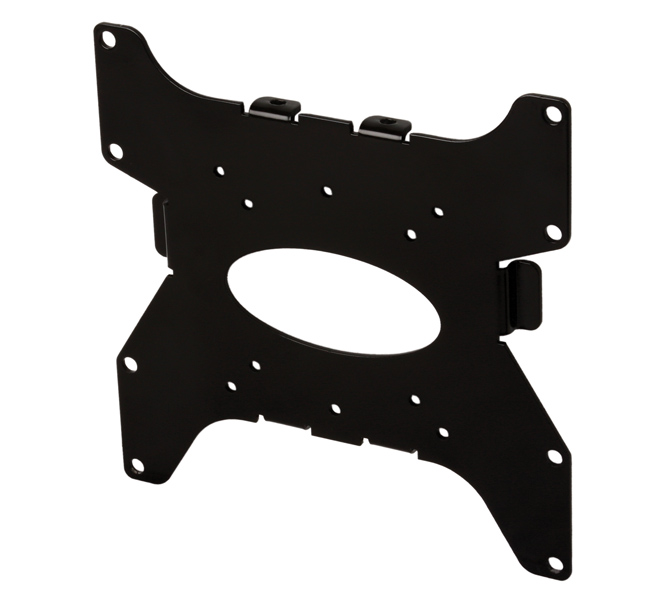

• Designed for screens up to 47” (120cm) / 40kg (88lbs)
• Fits screens with VESA mounting patterns:
  75mm x 75mm, 100mm x 100mm, 200mm x 100mm and 200mm x 200mm

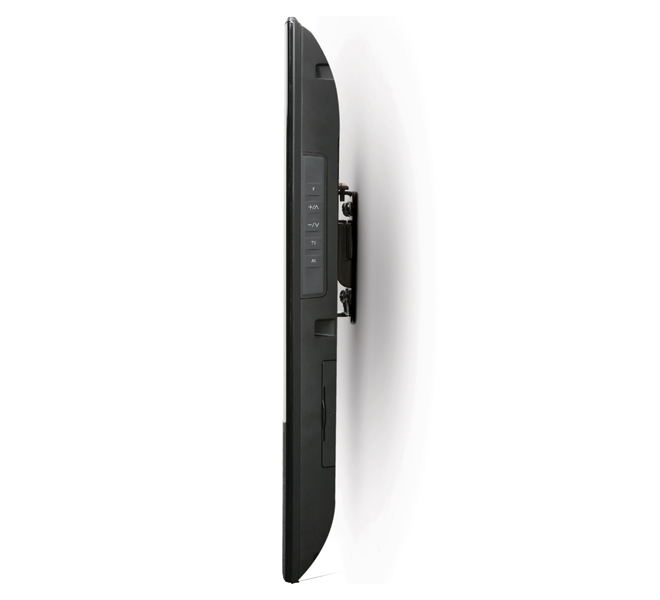

• Ultra-slim design mounts screen only 15mm (0.6”) from wall
• Security locking screws and Allen key provided for secure installation
• Features ‘OWLS’™ On Wall Levelling System
• Simple ‘hook-on’ installation with all mounting hardware included

• Screen Size: up to 47”
• Max. Weight: 40kg (88lbs)
• Distance from Wall: 15mm (0.6”)
• VESA Compatibility: 75 x 75, 100 x 100, 200 x 100, 200 x 200
• Features ‘OWLS’™ On Wall Levelling System
• Community Design Number: 001713280-0013

Assembly Leaflet (PDF)

Specification Sheet (PDF)

BT7532 - Technical Drawing (PDF)

BT7532 - Technical Drawing (DXF)
