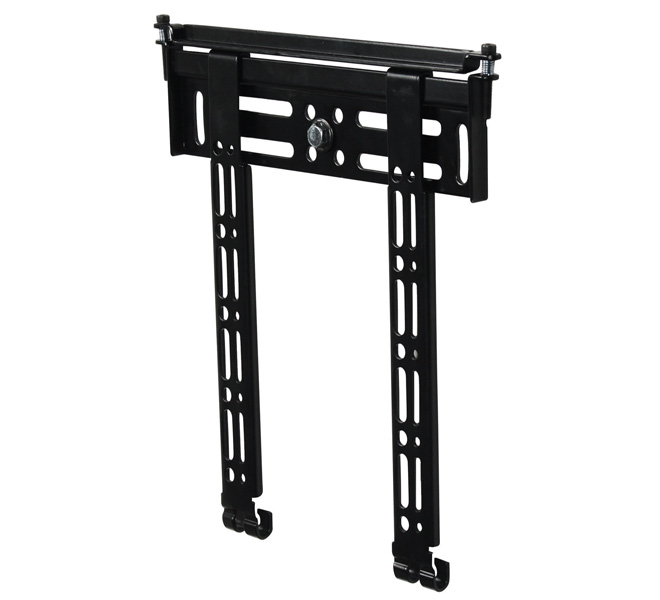

Ultra-Slim Universal Flat Screen Wall Mount

BT8200

For Medium Screens



  • Designed for flat screens up to 47” (119.3cm) / 40kg (88lbs)
  • Fits screens with mounting patterns up to:
    H: 240mm (9.6”) x V: 200mm (7.9”) including VESA:
    75 x 75mm, 100 x 100mm, 200 x 100mm and 200mm x 200mm
  • Ultra-slim design mounts screen only 14mm (0.6”) from wall
  • Contemporary mounting solution, ideal for the latest generation
    of LED and 3D TVs
  • Simple ‘hook-on’ installation with all mounting hardware included



Maximum weightMaximum screen size
40kg (88lbs) 47" (119.3cm)
  BT8200 Ultra-Slim Flat Screen Wall Mount - Side View
  • Designed for flat screens up to 47” (119.3cm) / 40kg (88lbs)
  • Fits screens with mounting patterns up to 230mm (9.6”) x 200mm (7.9”) including VESA:
    75 x 75mm, 100 x 100mm, 200 x 100mm and 200 x 200mm
  • Ultra-slim design mounts screen only 14mm (0.6”) from wall
  • Features ‘OWLS’™ On Wall Levelling System
  • Features unique ‘Torsion Lock’™ security
  • Suitable for concrete or brick walls
  • Security locking screws, Allen key and locking bar provided for secure installation
  • Universal screen fixing kit supplied, including M4, M5, M6, M8 screws and spacers
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Screen Size: up to 47”
  • Dist from Wall: 14mm (0.6”)
  • VESA Compatibility: 75 x 75, 100 x 100, 200 x 100, 200 x 200
  • Community Design: 001713280-0037
  • Patent Number: 2416050
BT8200-PRO Ultra-Slim Flat Screen Wall Mount BT8200-PRO Ultra-Slim Flat Screen Wall Mount - with Screen BT8200-PRO Ultra-Slim Flat Screen Wall Mount - Ultra-Slim design BT8200-PRO - Ultra-Slim Flat Screen Wall Mount - Lifestyle Image

Product Specification Sheet (PDF)

Assembly Leaflet (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)
