Heavy Duty Twin Cantilever Arm Flat Screen Wall Mount

BT8228

With Tilt and Swivel




Designed to for large screens, this universal heavy duty twin cantilever arm wall mount combines strength and versatility with effortless usability. B-Tech's UltraGlide Tilt technology allows users to reposition displays up to 125kg with a simple touch, securely holding the tilt in place. Featuring three swivel points at the wall, arm and interface, the mount enables quick and smooth screen adjustments, whether folded flat against the wall or fully extended. Featuring cover plates and integrated cable management for a tidy mounting solution, the BT8228 is ideal for both commercial and home installations.









BT8228


  • B-Tech's UltraGlide Tilt technology allows easy, secure screen adjustment
  • Printed template for wall drilling makes installation quick and easy
  • Integrated cable management
  • Attractive cover plates hide fixings
  • Easy tool-less tilt and swivel adjustments
  • Slim-line design allows close to the wall installation when folded flat
  • Suitable for portrait and landscape mounting
  • Lateral adjustment of the screen once mounted
  • Tool-less screen levelling
  • Safety screws help prevent unauthorised removal of screens
  • Simple 'hook-on' installation with all mounting hardware included
  • 100% plastic free packaging
  • Recommended screen size: 65" (165cm) up to 120" (305cm)
  • Max load: 125kg (275lbs)
  • VESA® compatibility: 300 x 200 up to 800 x 600
  • Tilt: -3°/+15°
  • Swivel: 180°
  • Distance from wall: Min: 90mm (3.5") - Max: 628mm (25")

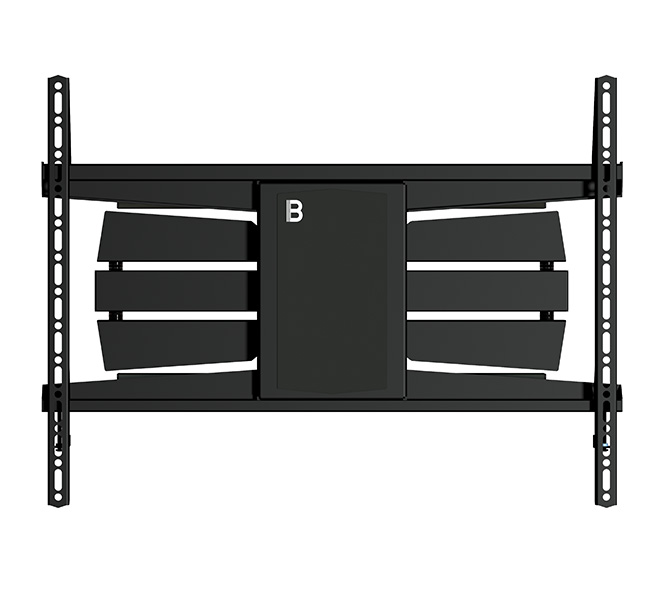

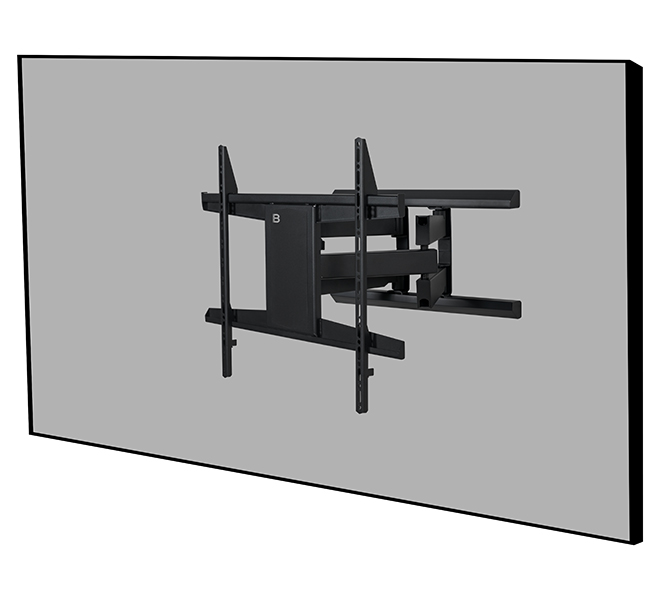

BT8228 - Font three-quarter view BT8228 - Space saving - folds flat to the wall BT8228 - Screen and mount BT8228 - Printed template for wall drilling makes installation quick and easy
BT8228 - Attractive cover plates hide fixing BT8228 - Lifestyle BT8228 - Easy toolless tilt and swivel adjustments BT8228 - Integrated cable management

Product Overview Video



Produktübersichtsvideo

Specification Sheet

Specification Sheet (PDF)

Technisches Datenblatt - Deutsch (PDF)

Specification Sheet US (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)

Technical Drawing (DXF)



Greensheet

Greensheet (PDF)
