• Designed for screens up to 55” (139cm) / 35kg (77lbs)
• Suitable for screens with VESA and non-VESA fixings with universal screen mounting kit
  including M4, M5, M6 & M8 screws
• Maximum distance between mounting holes: H:465mm (18.3") x V:400mm (15.7")
• Compatible with VESA® mounting patterns:
  75 x 75mm, 100 x 100mm, 200 x 100mm, 200 x 200mm,
  300 x 200mm, 300 x 300mm, 400 x 200mm, 400 x 300mm and 400 x 400mm

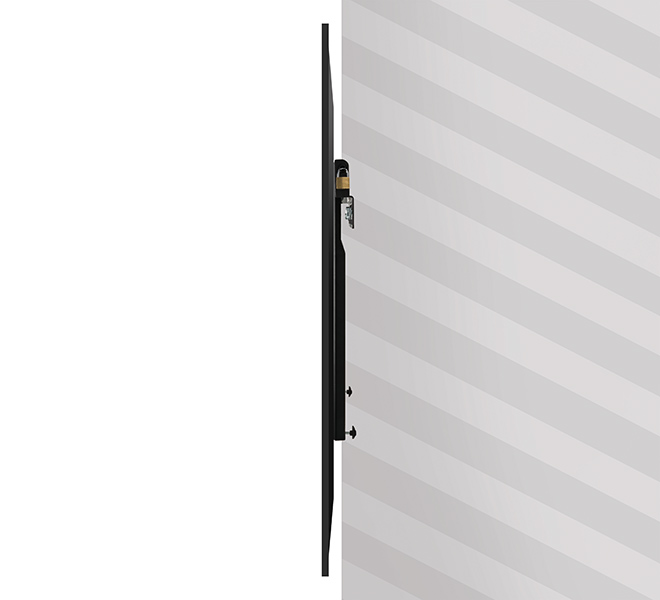

• Low profile design mounts screen only 30mm (1.2”) from wall

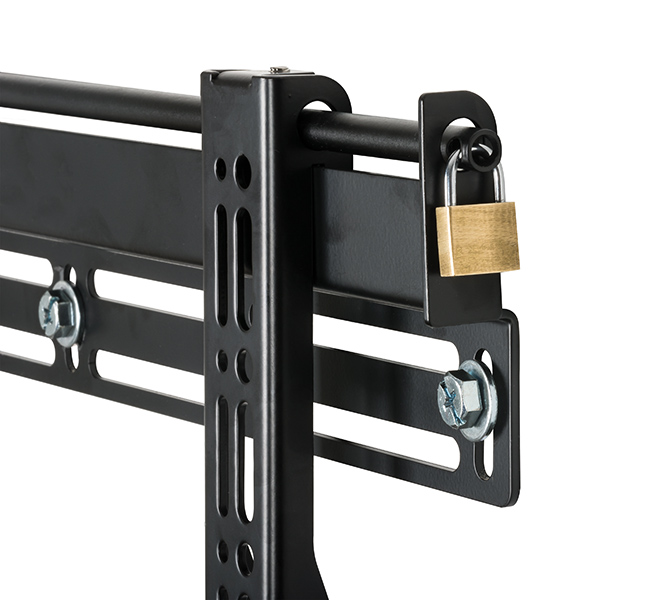

• Locking bar included for secure installation
• Suitable for concrete/brick or up to 16” stud walls
• Features ‘OWLS’™ On Wall Levelling System
• Simple ‘hook-on’ installation with all mounting hardware included

• Screen Size: up to 55” (139lbs)
• Max. Weight: 35kg (77lbs)
• Dist from Wall: 30mm (1.2”)
• Max Dist between Fixings: H: 465mm (18.3”) V: 400mm (15.7”)
• VESA Compatibility:
  75 x 75, 100 x 100, 200 x 100, 200 x 200, 300 x 200,
  200 x 300, 300 x 300, 400 x 200, 400 x 300, 400 x 400
• Community Design: 001713280-0033

Assembly Leaflet (PDF)

Specification Sheet English (PDF)

Especificationes Technicas - Español (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)
