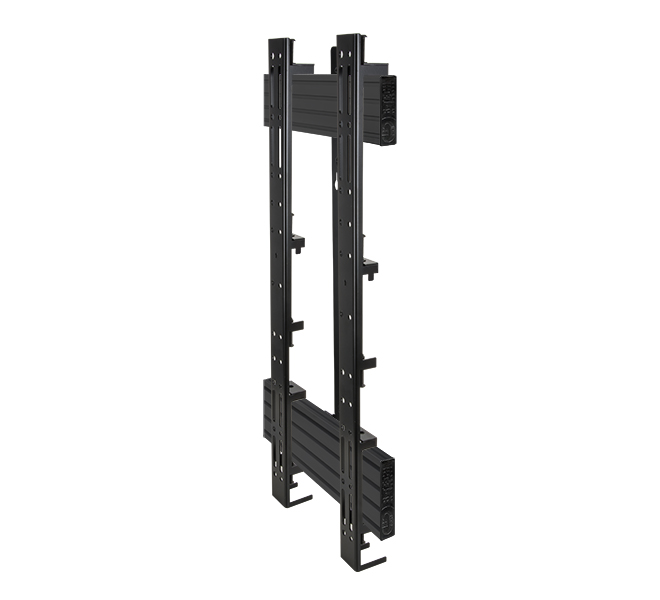

System X™ Ultra Stretch Signage Mount

BT9906

For LG 86BH5C




BT9906 is a System X mounting solution that is ideal for portrait mounting LG's 86BH5C Ultra Stretch Signage to a wall. At a depth of just 65mm, the finished install is close to the wall but still allows enough room for easy access to connectors. Safety screws come as standard to help prevent unauthorised removal of the screen and height adjustment screws allow the screen to be levelled perfectly after installation.





   BT9906 - System X Ultra Stretch Signage Mount

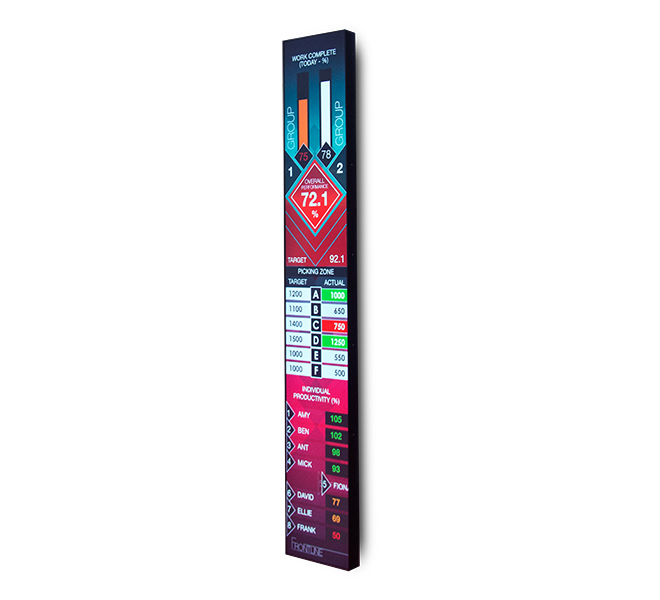

  • Designed for use with the LG 86BH5C 86", 58:9 Ultra-Stretch Signage

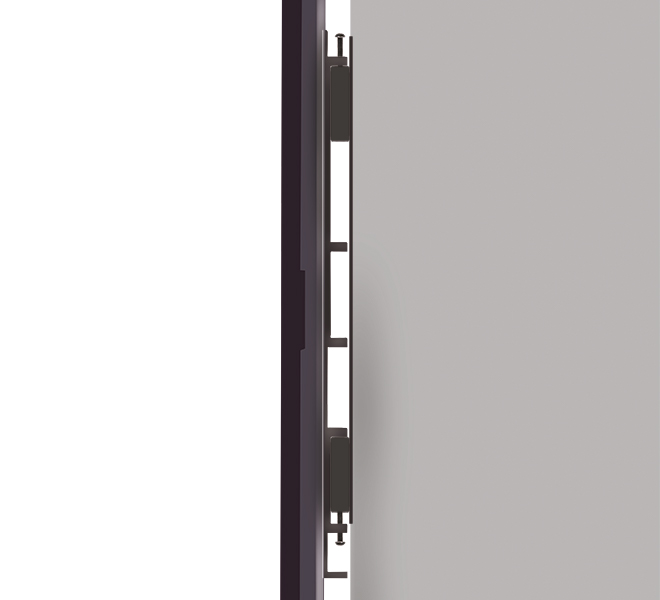

  • Mounts screen just 65mm from wall whilst still allowing easy access to connectors
  • Ideal for portrait mounting

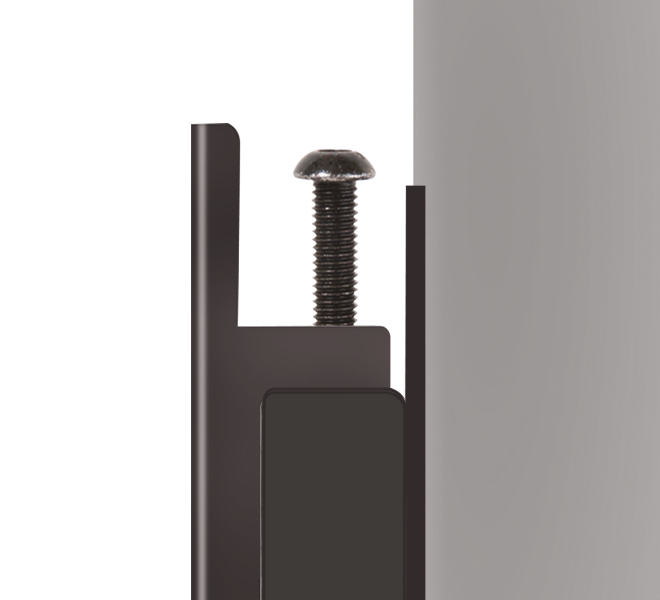

  • Arms feature levelling screws to adjust the screen height
  • Pole mounted version for ceiling and floor mounting is available on request
  • Safety screws help prevent unauthorised removal of screens
  • High end aesthetic quality with stylish end caps for a neat and tidy install
  • Landscape mounted solution also available, please see BT9905
  • All mounting hardware included
  • Recommended screen size: 86"
  • Max load: 50kg
  • Max VESA® fixings: 800 x 200
  • VESA® fixings when mounting LG's 86BH5: 600 x 200
  • Distance from wall: 65mm
  • Dimensions: L: 305mm x H: 886mm x D: 65mm
  • Colour horizontal rail: Silver
  • Colour interface arms: Black
BT9906 - System X Ultra Stretch Signage Mount BT9906 - System X Ultra Stretch Signage Mount - Ideal for LG's 86BH5C Ultra Strech Signage BT9906 - System X Ultra Stretch Signage Mount - Mounts the screen 65mm from the wall BT9906 - System X Ultra Stretch Signage Mount - Arms feature levelling screws to adjust the height

Specification Sheet (PDF)

Assembly Leaflet (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)
