Double Arm Flat Screen Wall Mount with Tilt and Swivel

BTV114

For Small Screens



Designed to wall mount small sized screens, this double arm wall mount features a tilting interface and three swivel points, allowing quick and easy repositioning of screens as required - whether folded flat against the wall at a depth of 77mm or at maximum extension. Cable management is included to help make a neat and tidy mounting solution which is ideal for home installations as well as commercial applications.



Maximum screen sizeMaximum weight
28" 15kg

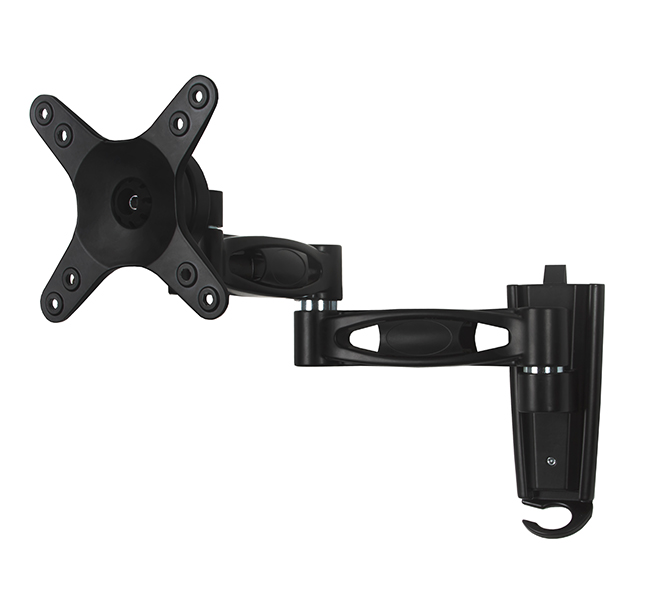

  BTV114 Ventry™ Double Arm Flat Screen Wall Mount with Tilt and Swivel

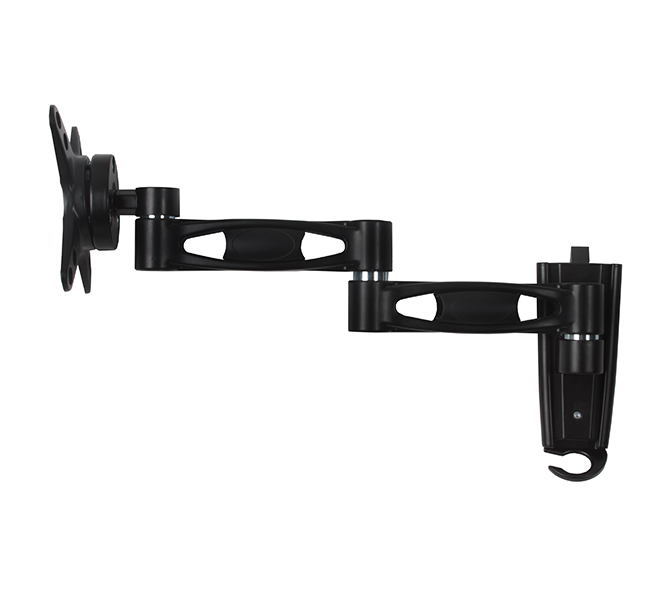

  • Double arm for extended reach - ideal for corner mounting

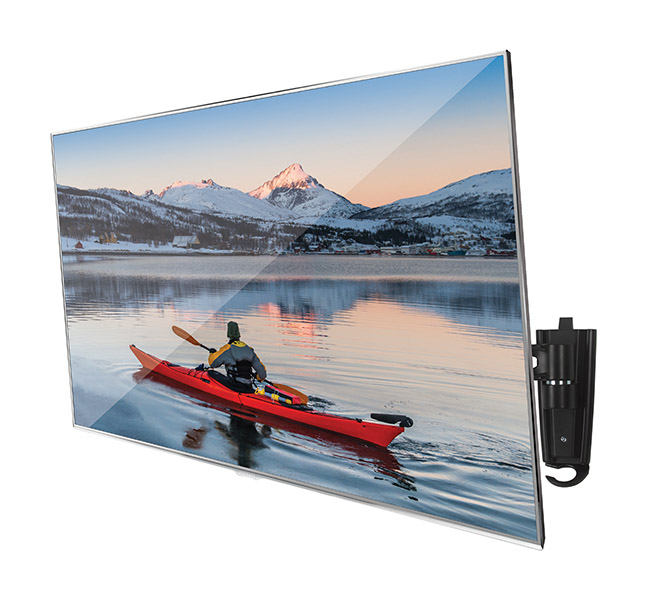

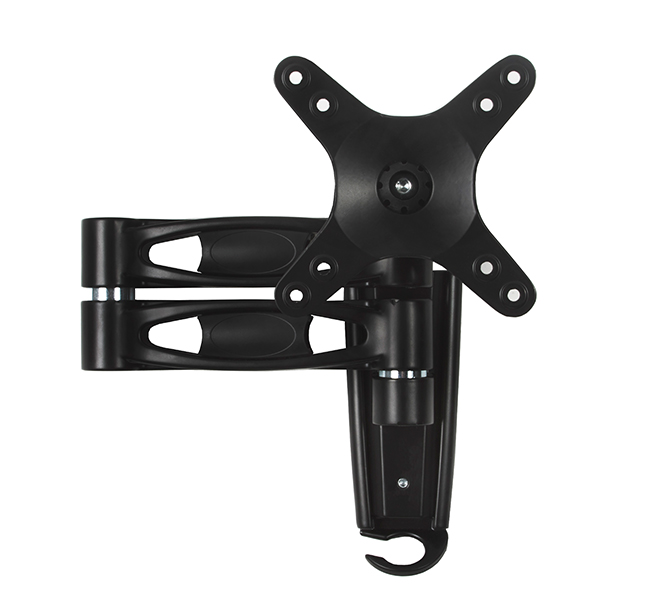

  • Folds flat to the wall
  • Interface features tilt, swivel and screen rotation
  • Integrated cable management
  • Integrated spirit level for easy wall plate levelling during installation
  • Simple 'hook-on' installation
  • All mounting hardware included
  • Screen size: up to 28”
  • Max. weight: 15kg
  • Dist. from wall: Min:77mm Max: 385mm
  • VESA compatibility: 75 x 75mm, 100 x 100mm
  • Screen Rotation: 360°
  • Tilt: +/-15°
  • Swivel: 180°
Integrated Cable Management and Spirit Level Included Folds flat to the wall with a distance of only 77mm Features up/down tilt plus 3 pivot points Interface allows screen rotation of 360°
