Universal Flat Screen Wall Mount

BTV500

For Medium Screens




Designed to mount medium sized screens just 20mm from the wall, with its low-profile design the BTV500 is ideal for home installations. This mount features a simple ‘hook-on’ installation and post installation screen alignment to make screen mounting as quick and simple as possible. The BTV500 also features a security locking bar to help prevent un-authorised removal of the screen. All fixings and mounting hardware included.





  BTV500 Medium Flat Screen Wall Mount
  • Low profile design for a close to the wall installation
  • Lateral adjustment of screen once mounted
  • Security locking bar to prevent unauthorised screen removal
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recommended screen size: up to 47”
  • Max load: 40kg
  • VESA® & non-VESA fixings: up to 225 x 200
  • Distance from wall: 20mm

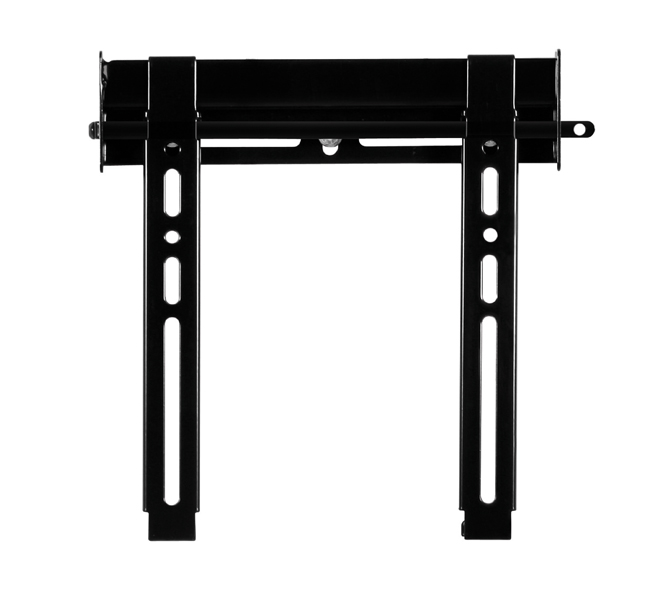

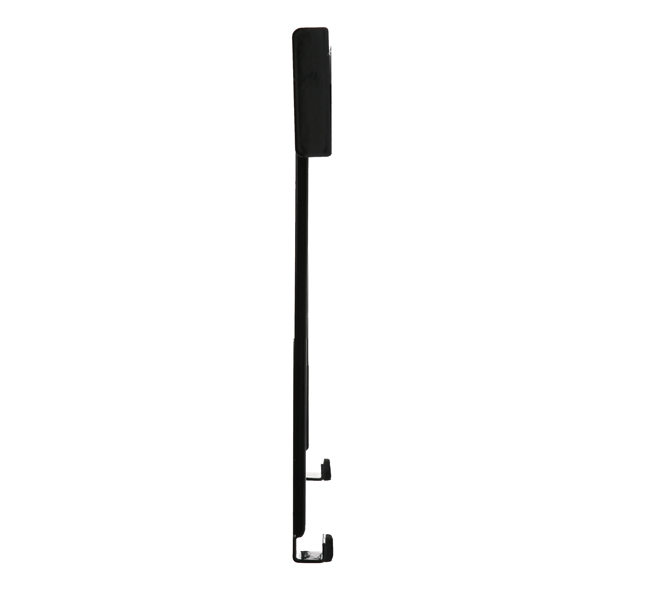

BTV500 Medium Flat Screen Wall Mount - Front View BTV500 Medium Flat Screen Wall Mount - Security Locking Bar BTV500 Medium Flat Screen Wall Mount -  Low Profile Design BTV500 Medium Flat Screen Wall Mount - Lifestyle Image

Specification Sheet (PDF)

Installation Guide (PDF)

Instrucciones de Instalación – Español (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)
