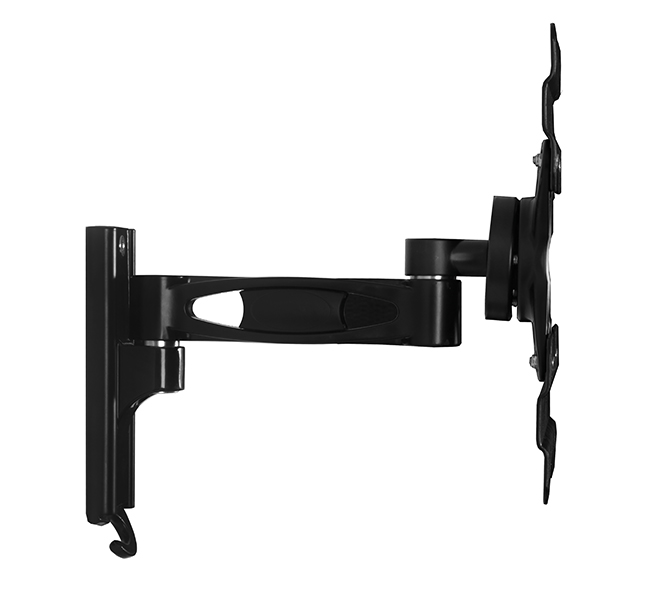

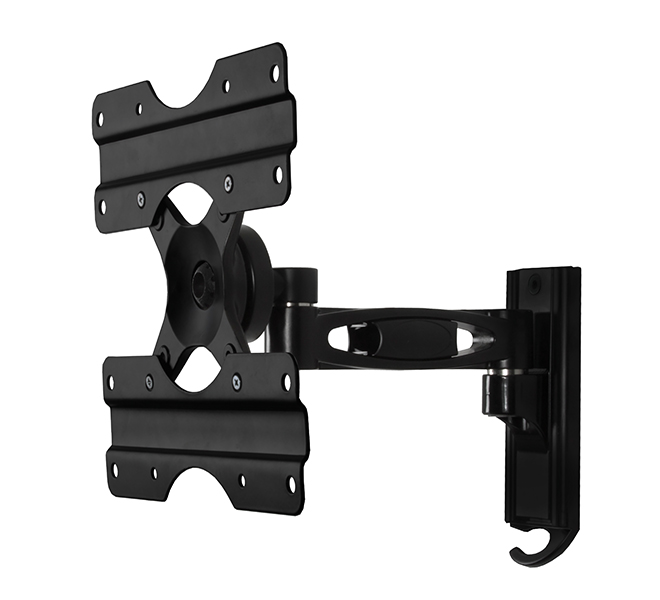

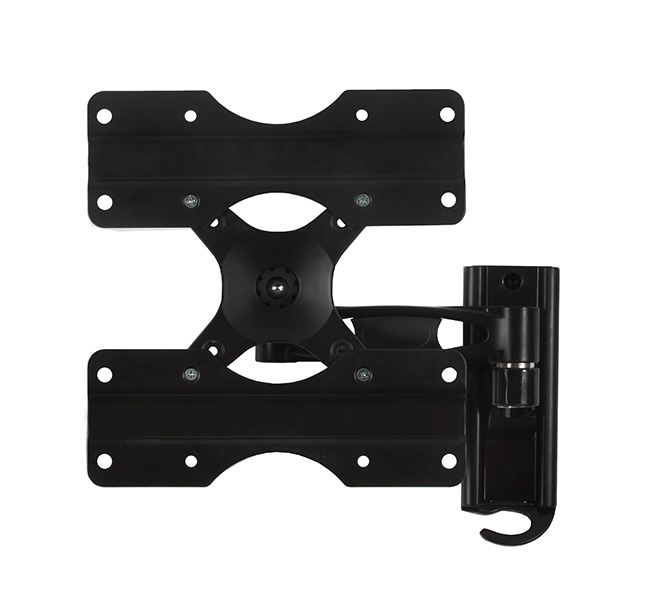

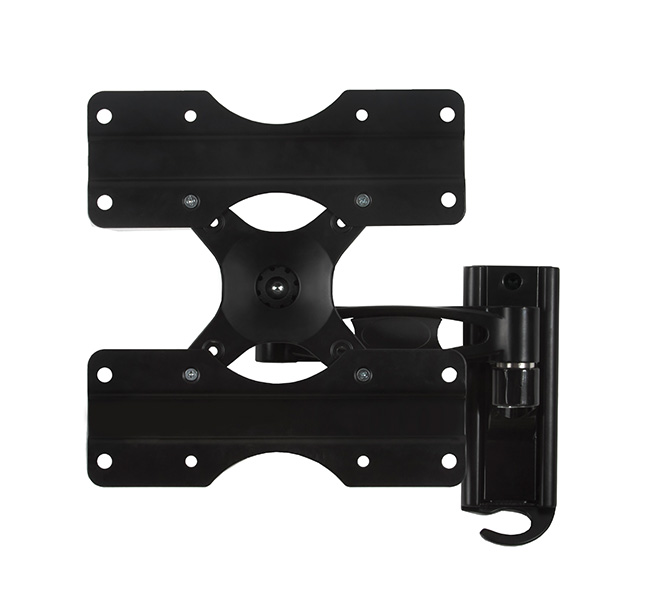

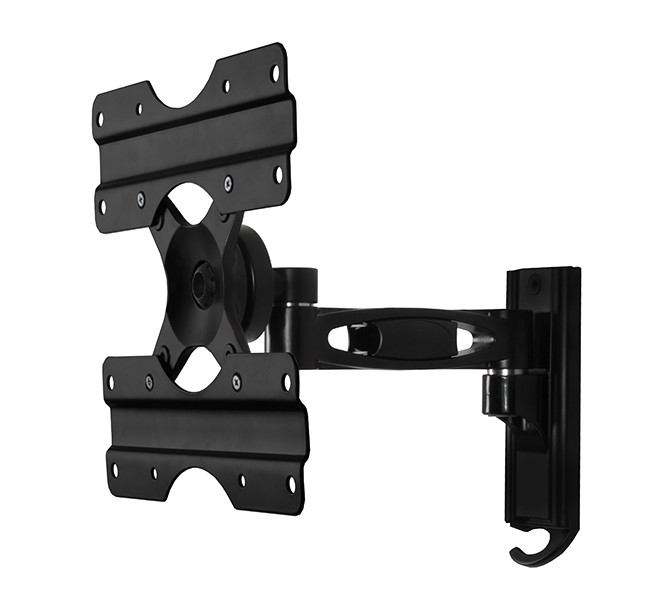

Single Arm Flat Screen Wall Mount

BTV503

With Tilt and Swivel




Designed to wall mount small to medium sized screens, this single arm wall mount features a rotating interface with tilt and swivel, allowing quick and easy repositioning of screens as required - the mount can display the screen folded flat against the wall or up to its maximum extension of 240mm. Cable management is included to help make a neat and tidy mounting solution which is ideal for home installations as well as commercial applications.





  BTV503 Ventry™ Single Arm Flat Screen Wall Mount with Tilt and Swivel
  • Easy tilt and swivel adjustment
  • Features two swivel points: 180° at wall and 240° at interface
  • Screen rotation allows screen to mounted in landscape or portrait orientation

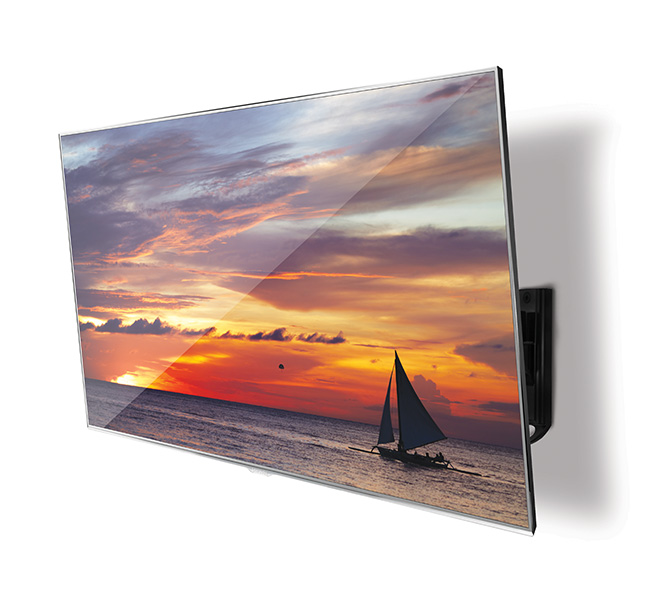

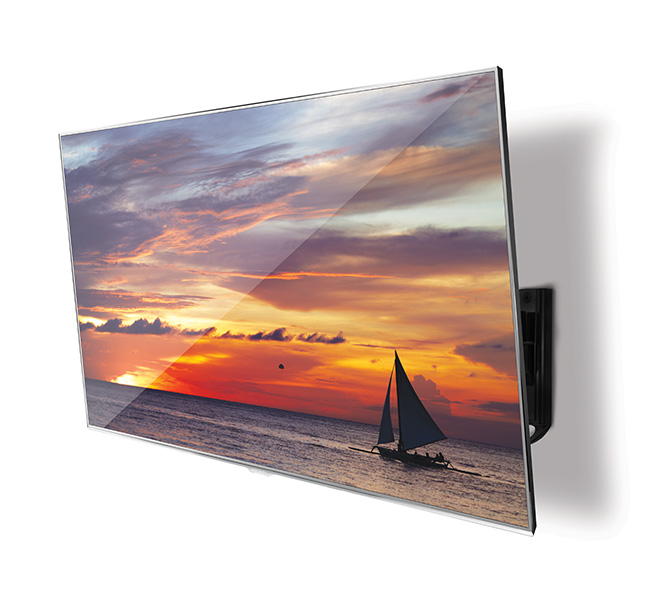

  • Folds flat to the wall
  • Integrated cable management
  • Integrated spirit level for easy wall plate levelling during installation
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recommended screen size: up to 47”
  • Max load: 25kg
  • VESA® compatibility: up to 200 x 200
  • Tilt: +/-15°
  • Swivel: 180°
  • Screen rotation: 360°
  • Distance from wall: 79 - 240mm
Integrated Cable Management and Spirit Level Included Folds flat to the wall with a distance of only 79mm Features up/down tilt plus 2 pivot points Interface allows screen rotation of 360°
