Flat Screen Wall Mount


With Tilt


Designed to mount medium sized screens, this wall mount is simple to install and features a tilt function that allows easy positioning of the screen. Suitable for screens with VESA patterns up to 200 x 200mm, this neat and tidy mounting solution is ideal for commercial applications as well as home installations. The BT7523 is also collar compatible for alternative mounting solutions. Security screws are are provided to help prevent unauthorized removal of the screen.



  • Fits screens with VESA mounting patterns: 75 x 75mm, 100 x 100mm, 200 x 100mm and 200 x 200mm
  • Easy tilt adjustment
  • Mounts screen only 52mm from the wall
  • Features ‘OWLS’ On Wall Levelling System
  • Includes security locking screws and Allen key to prevent unauthorised removal of the screen
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Compatible with B-Tech accessory collars
  • Recommended screen size: up to 47” (119cm)
  • Max load: 25kg (55lbs)
  • VESA® Compatibility: up to 200 x 200
  • Extension: 52mm (2”)
  • Tilt wall mounted: + /- 15˚
  • Tilt pole mounted: + /- 40˚
  • Colour: Black

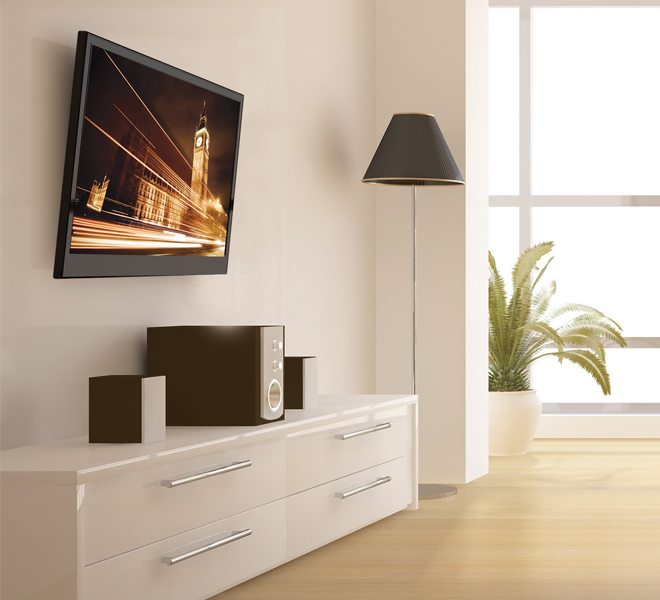

BT7523 Adjustable Tilt Flat Screen Wall Mount - Side View BT7523 Tilt and Swivel Flat Screen Wall Mount - With Screen BT7523 Tilt and Swivel Flat Screen Wall Mount - Lifestyle Image

Specification Sheet

Specification Sheet (PDF)


Installation Guide

Installation Guide (PDF)
