Corner Wall Mounting Bracket


For Ø50mm Poles

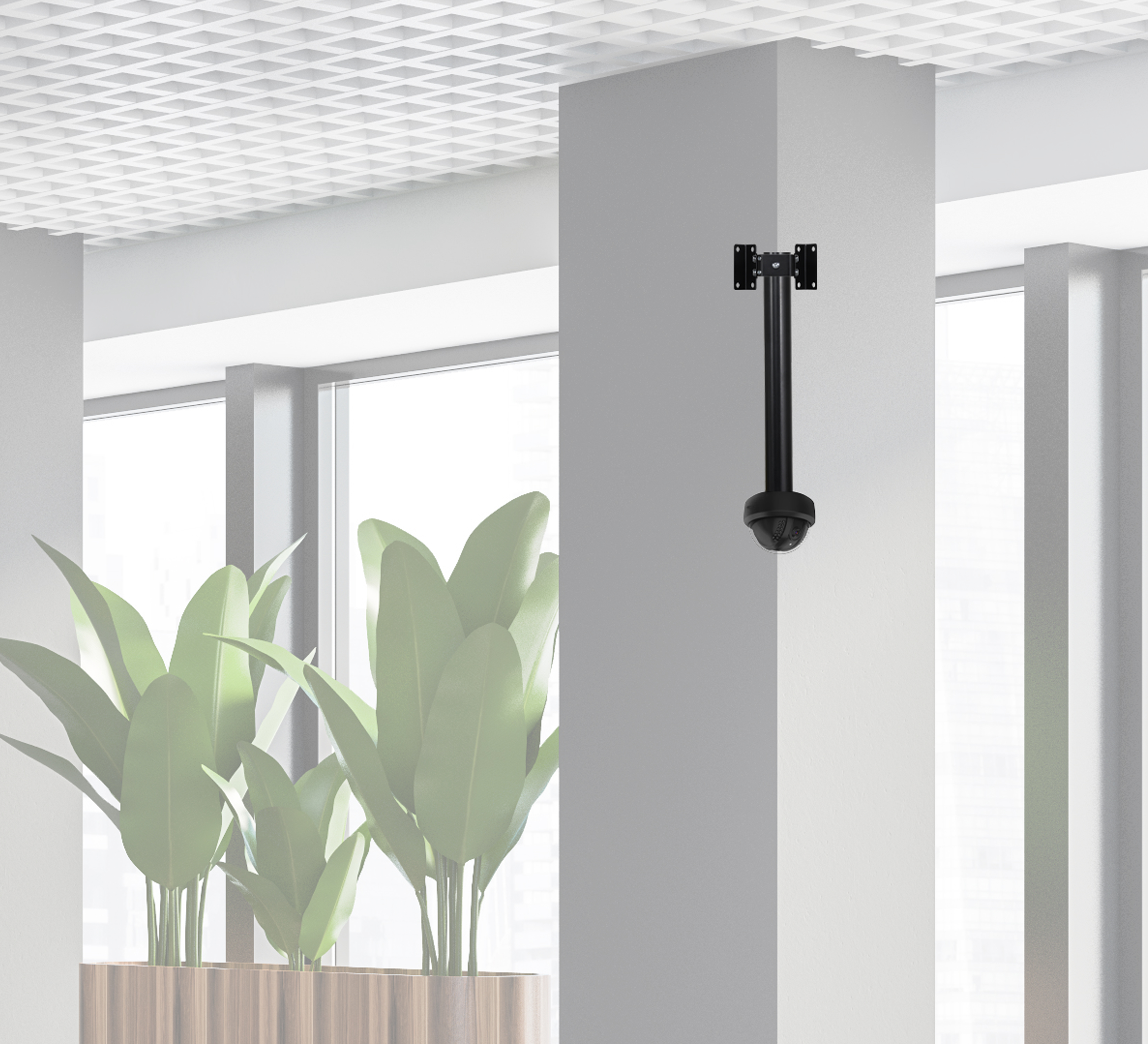

Designed to mount a Ø50mm pole onto an external or internal corner of a wall, the BT7833 is ideal for installing CCTV cameras, motion sensors, small screen displays and other AV equipment at locations where it is not required or possible to fix onto the side of a wall. Supplied with a BT7051 collar and safety bolt for a secure installation, the brackets mount easily on the inside or outside corner of a wall and works in conjunction with other B-Tech mounts for a simple mounting solution.

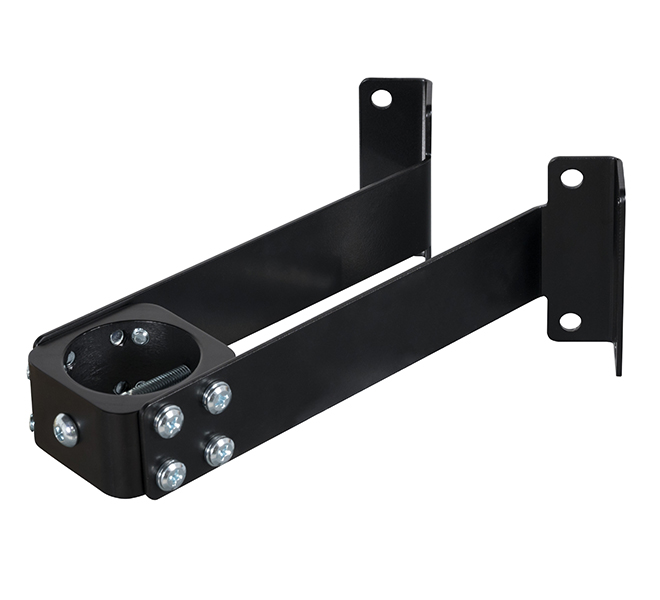

BT7833 - Corner Wall Mounting Bracket for Ø50mm Poles

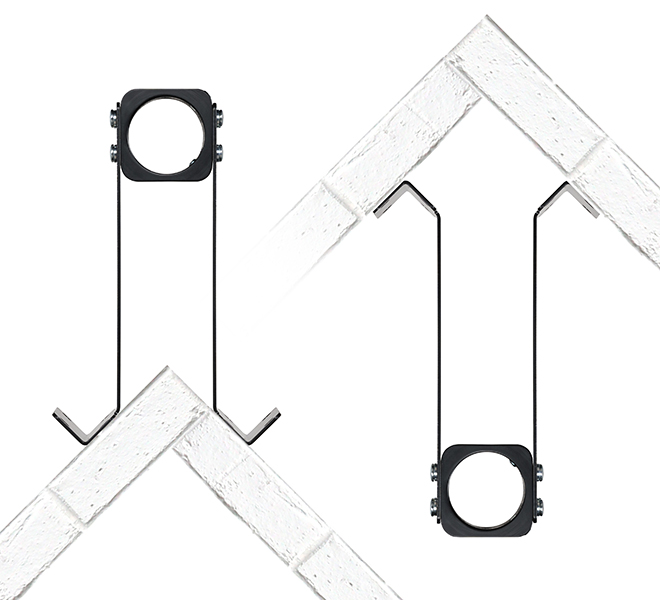

  • The product can also be used on both internal and external corner mounting
  • Designed to be used with any length Ø50mm pole
  • Designed for use with System 2 solutions
  • Security bolt included
  • All fixings included
  • Max Load: 3kg (6.6lbs)
  • Distance from wall: 213mm (8.5") to centre of pole
  • Colour: Black

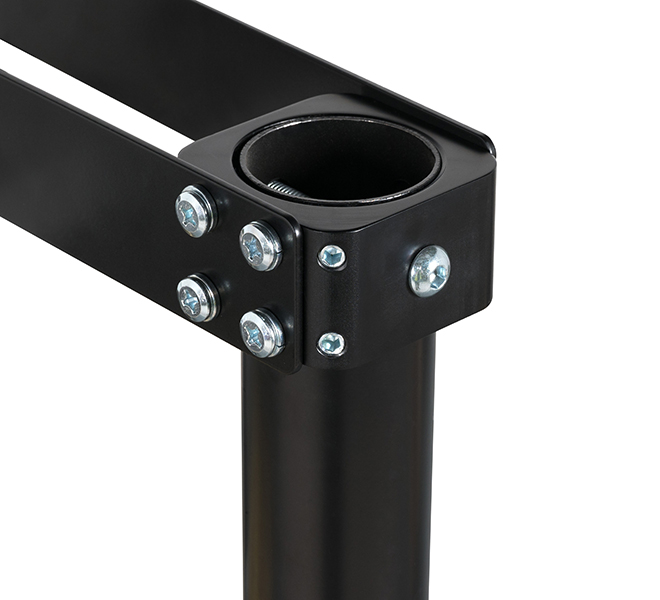

BT7833 - Corner Wall Mounting Bracket for Ø50mm Poles BT731 - Compatible with B-Tech Ø50mm Poles BT7831 - Includes safety bolt and grub screws for extra safety BT7831 - Ideal for creating multi-screen pole mounted installations - such as video walls

Specification Sheet

Specification Sheet (PDF)


Installation Guide

Installation Guide (PDF)


Technical Drawing

Technical Drawing (PDF)
