Side-Clamping Speaker Wall Mounts (Pair)

BT77

 With Tilt & Swivel




Suitable for most speakers including curved front types, the BT77 wall mount features a padded, adjustable side clamping design which grips medium to large sized speakers without marking them. The mounts are easy to install with tilt and swivel adjustments that allow for optimal speaker positioning once mounted. Supplied in pairs, the BT77 also includes cover plates for a neat and tidy finish.






  • Adjustable clamp to accommodate larger speaker sizes
  • Side-clamping design is padded and does not mark the speaker
  • Tilt and swivel adjustment allows perfect positioning
  • Can also be mounted directly to System X vertical columns or onto B-Tech collars for pole mounting
  • Supplied with cover plate and screw cap for a neat and tidy finish
  • Quick and easy installation
  • All mounting hardware included
  • Supplied in pairs
  • Max load: 25kg (55lbs)
  • Adjustable clamp size: 135mm (5.3") - 280mm (11")
  • Tilt: +/-10°
  • Swivel: 360°
  • Colour option: Black or White
BT77 - Side Clamping Loudspeaker Wall Mount with Tilt and Swivel Adjustable clamp to accommodate larger speaker sizes

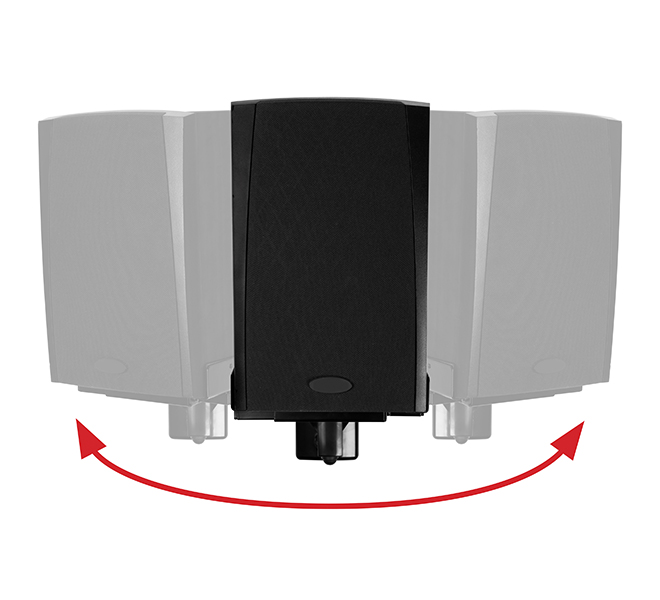

Tilt and swivel adjustment allows perfect positioning

Can also be mounted directly to System X vertical columns

Specification Sheet

Specification Sheet - English (PDF)

Specification Sheet - Polski (PDF)



Installation Guide

Installation Guide - English (PDF)

Installation Guide - German (PDF)



Technical Drawing

Technical Drawing (PDF)

Technical Drawing (DXF)
