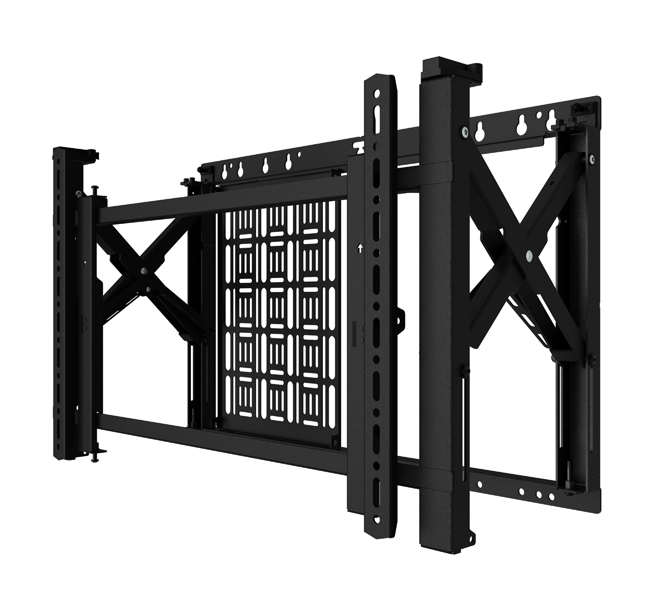

Pull-Out Flat Screen Wall Mount with In-Wall AV Storage Tray

BT7896

Easy Access to AV Equipment


	The BT7896 is a versatile pull-out wall mount for medium to large screens, combining service-friendly design with adaptable functionality. Push-to-release arms allow quick rear access without removing the screen, while adjustable depth, tilt, and swivel provide precise positioning. The integrated AV tray can be removed, re-positioned laterally inside the wall bracket, or mounted to the side to avoid mains sockets and cable inputs etc. Its slim profile is ideal for low-profile or recessed installations, and features such as cable management and levelling adjustment ensure a clean, professional finish.

Pull-to-release arms provide simple service access without screen removal

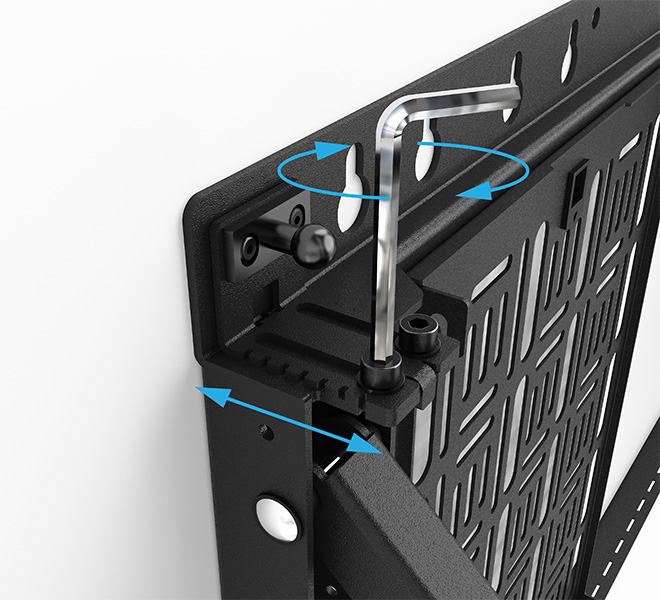

Lockable depth adjustment ensures a precise fit in recesses of different sizes

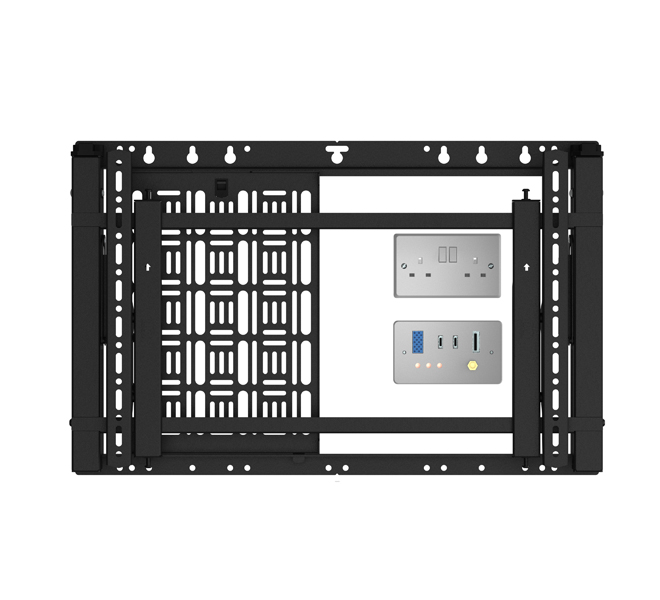

Integrated AV tray can be repositioned to the side to of the mount to avoid obstructions
(Max load of tray increases to 10kg)

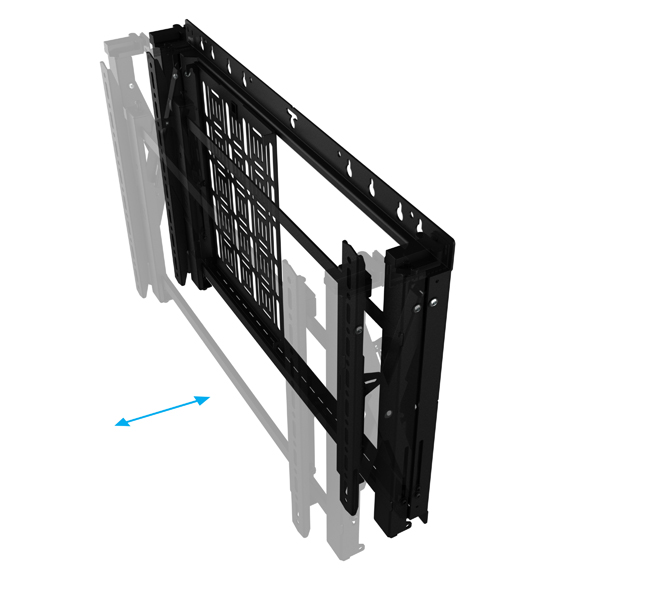

Pull-out function ideal for recess mounting

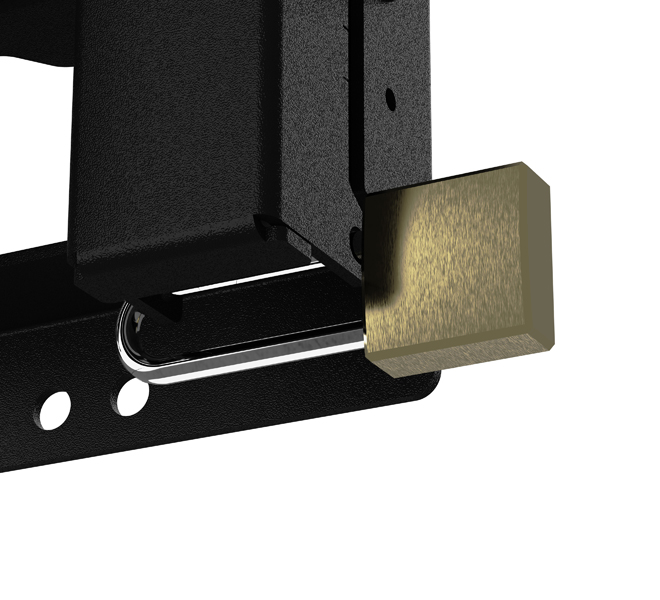

Lockable in the closed position and compatible with a padlock for added security
(padlock not included)

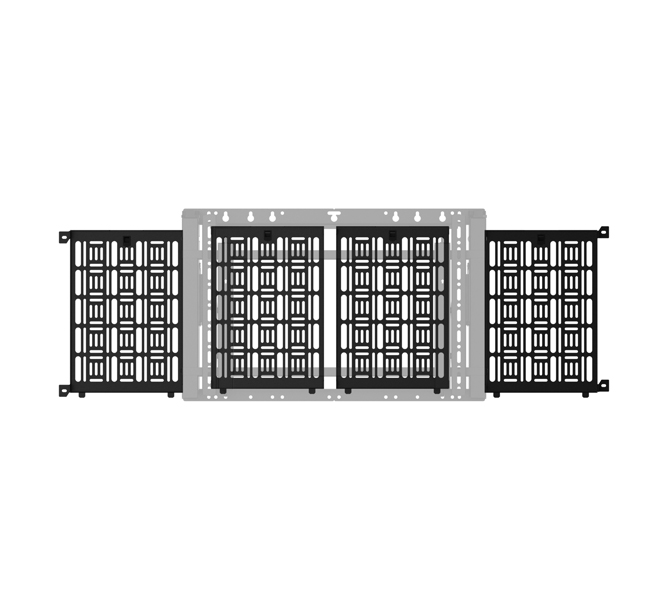

Quick release AV tray (when mounted inside the wall plate)
Additional Storage Tray (BT7896-Tray) available separately

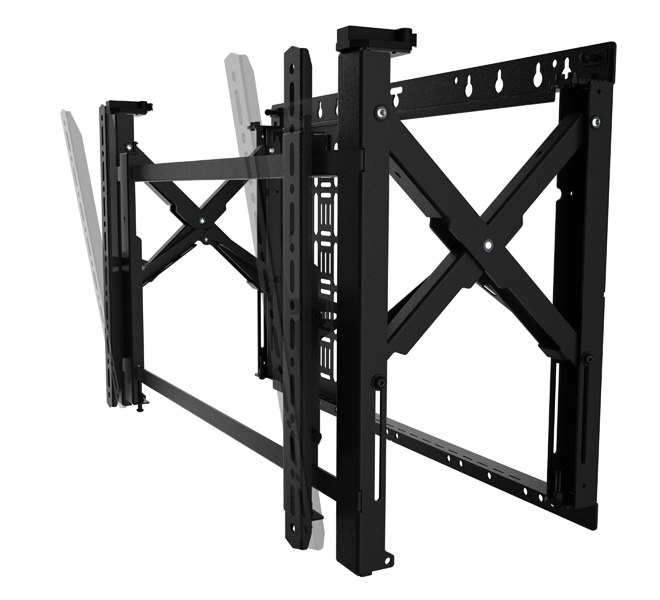

Adjustable depth, tilt, and swivel for precise screen positioning
Keyhole wall mounting for fast, hook-on installation

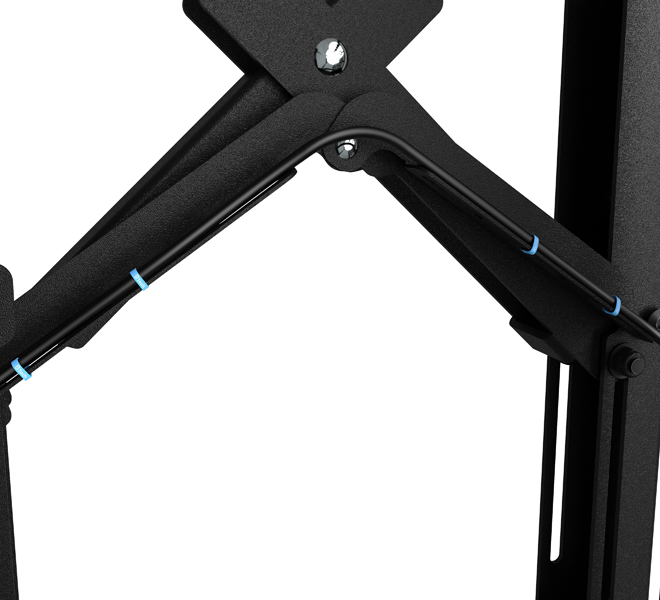

Includes cable straps and routing for tidy cable management
Drilling template included
100% plastic-free packaging

Max recommended screen size: 75" (190cm)
Max screen load: 70kg
VESA® & non-VESA fixings: up to 600 x 400mm

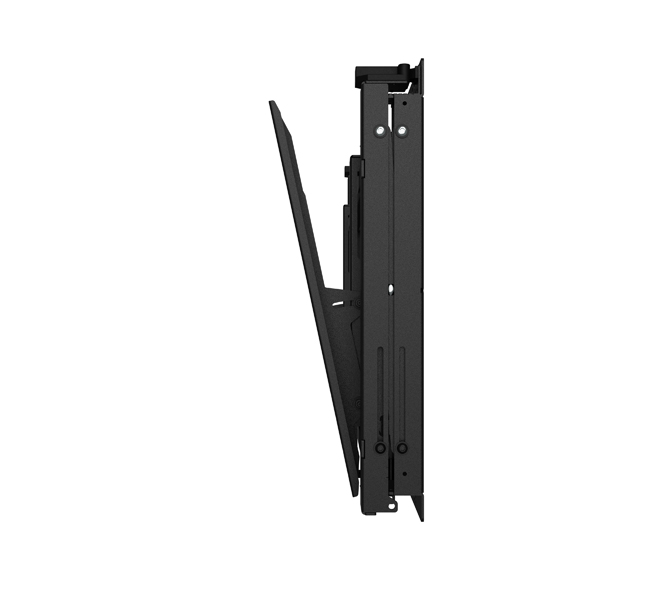

Tilt: 2° upward / 12° downward
Depth adjustment: +73.5mm
Distance from wall closed flat: Min: 91mm - Max: 164mm
Distance from wall closed with full-tilt: Min: 161mm - Max: 234mm
Distance from wall popped out: 301mm flat - 371mm full-tilt
Max tray load when fitted into the mount: 5kg
Max tray load when wall mounted to the side of mount: 10kg
Max equipment dimensions (mounted inside): H: 392mm x W: 271mm x D: 31mm - 104.5mm
Max equipment dimensions (wall mounted on the side): H: 392mm x W: 271mm x D: 82mm - 155.5mm
Storage tray dimensions: H: 407mm W: 274mm
Colour: Black
