For More Information Visit B-TECH PROFESSIONAL 18
VESA
800
x
400
 Dramatically shorten installation times by reducing the need for measuring and complicated calculations with the use of screen
specific spacers and 8 point micro-adjustments for perfectly aligned screens every time
 Designed for large video wall screens up to 50kg (110lbs)
 Fits screens with VESA® mounting patterns from 200 x 200mm up to 400 x 400mm
 VESA® adaptor kit available for mounting patterns of 600 x 400mm or 800 x 400mm - See previous page
 Tool-less micro-adjustments at 8 points for seamless display alignment - see below
 Modular mount for unlimited wall display configurations
 To allow access to the micro-adjustment in video wall configurations with more than 2 rows, it is recommended that the BT8311 be used in
conjunction with BT8310 pop-in, pop-out video wall mount - See opposite page for more information
 Screen model-specific wall plate spacers are available and dramatically shorten install times by eliminating guesswork and on-site installation
calculations - See previous page
 Suitable for landscape or portrait screen mounting
 Integrated cable management
 Safety screws to help prevent unauthorised removal of the screen

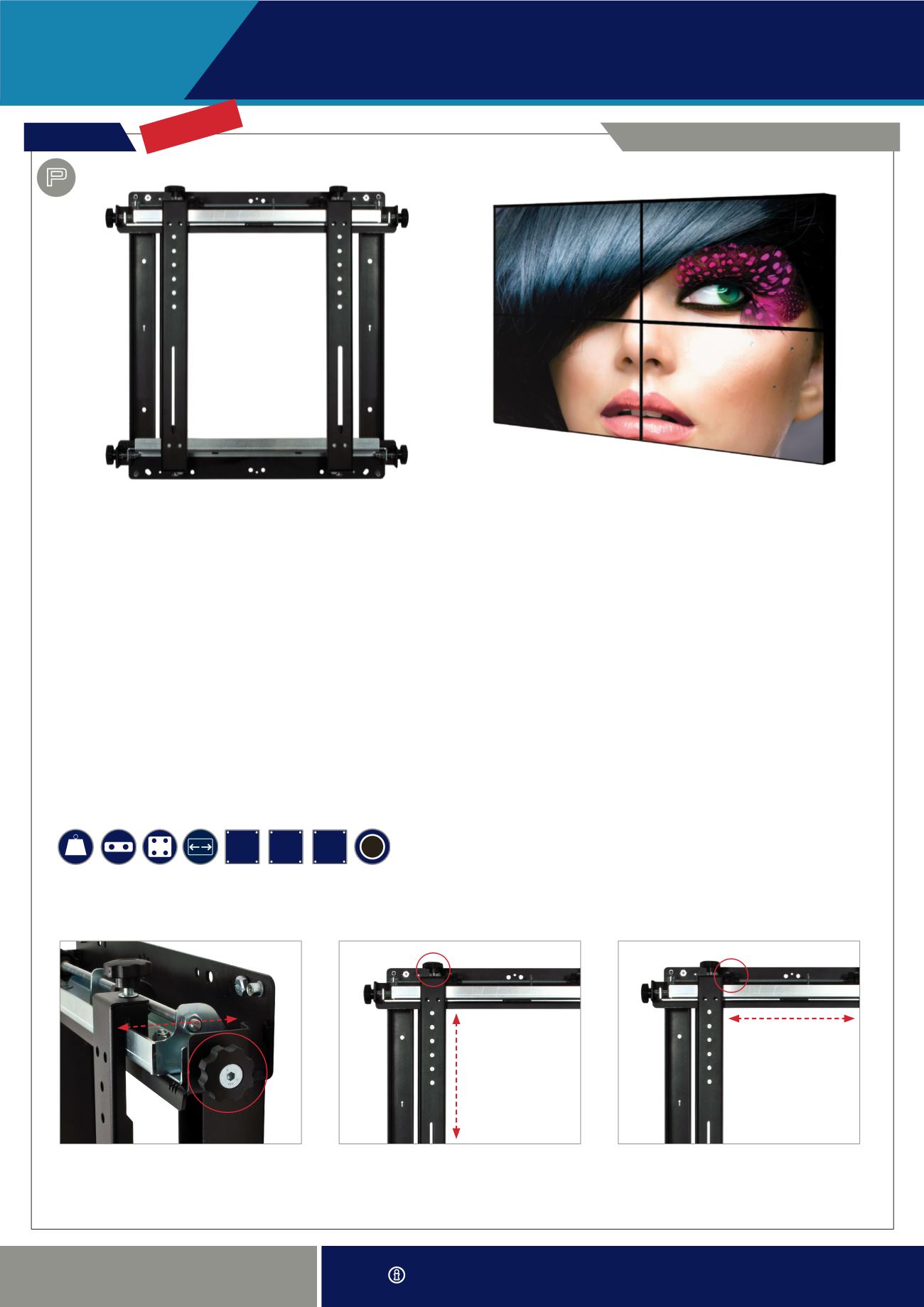

BT8311 VideoWall Mount
Professional VideoWall Mount
 Please note the recommended minimum screen size which can be
mounted is 42”with a minimum screen height of 542mm when
mounted in a landscape configuration and 571mm when mounted
in a portrait configuration
Digital Signage
Mounting Professional VideoWall Mount
Example 2 x 2 Landscape
NEW
8 Point tool-less micro-adjustments for seamless display alignment
1: Independently adjust the depth of each corner of the screen by up to 14mm
2: 12mm vertical adjustment to raise or lower screen position
3: Laterally adjust and lock the screen into position
VESA
600
x
400
Whenusedwith
BT8310-AD86/B
Adaptor
Whenusedwith
BT8310-AD64/B
Adaptor
*
VESA
400 50kg
(110Ibs)
RegisteredDesignNumber: 002445890-0001
1.
3. 2.
