Fixed Ceiling Mount

BT5920

For Ø38mm Poles




The BT5920 is a ceiling mount from B-Tech’s System V Range; a collection of components designed for the installation of CCTV and other ceiling mounted equipment. Based around the use of BT5935 ø38mm poles, users of System V can create custom ceiling mounted solutions that suit their specific needs, using compatible B-Tech mounting interfaces and accessory collars to mount CCTV dome cameras and other AV equipment such as flat screens.

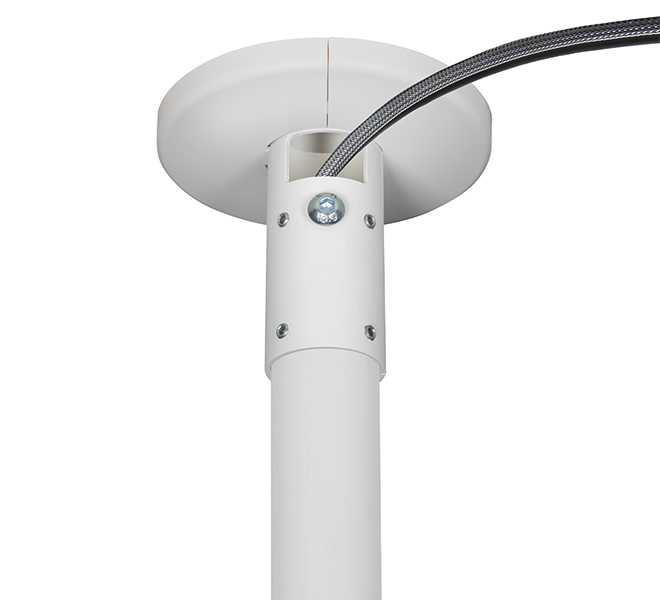

  BT5920 - Attaches directly to BT5935 Ø38mm poles
  • Allows BT5935 ø38mm poles to be mounted from the ceiling
  • Heavy duty steel capable of supporting substantial loads
  • Multiple grub screws allow micro-adjustment of the pole to ensure a perfectly angled drop

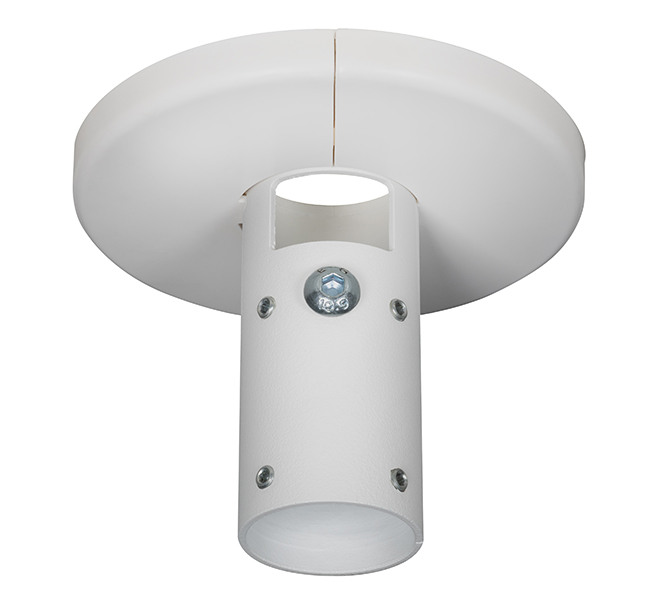

  • Safety bolt ensures pole and ceiling mount are securely joine

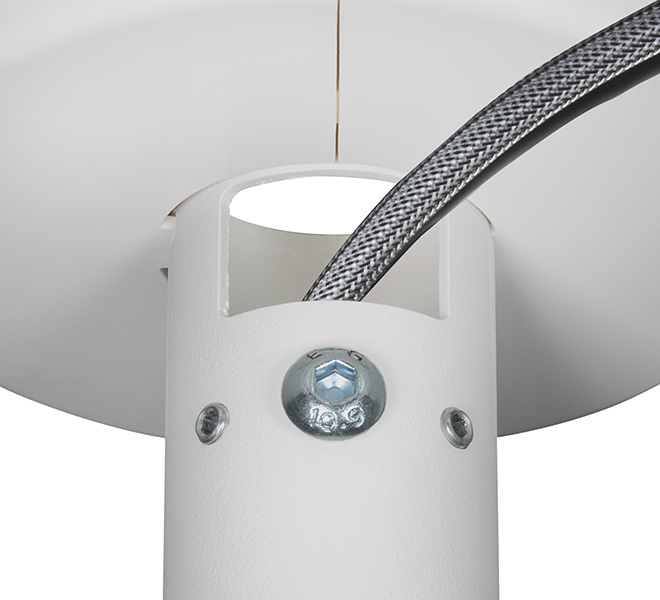

  •  Integrated cable management through the top or side of the mount
  • Create a variety of ceiling mounted CCTV installs using System V's range of components
  • Maximum Load: 75kg
  • Drop: 103mm
  • Ceiling plate diameter: 120mm
  • Colour: White

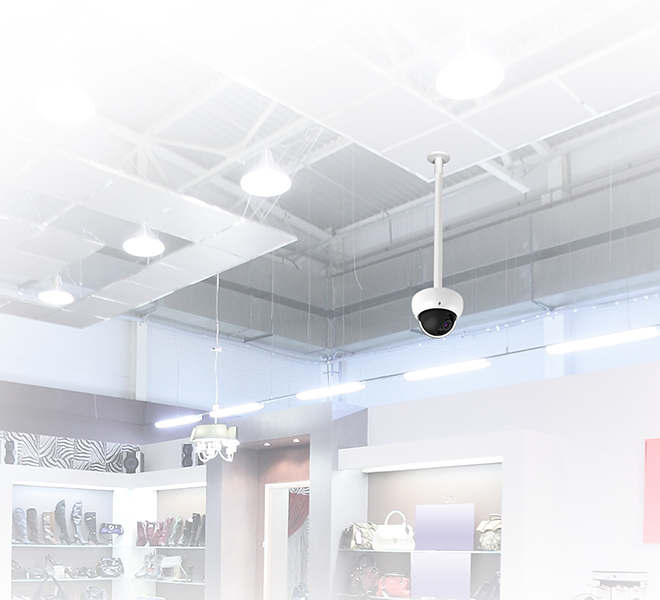

BT5920 - Attaches directly to BT5935 Ø38mm poles BT5920 - Safety bolt ensures pole and ceiling mount are securely joined BT5920 - Integrated cable management through the top or side of the mount BT5920 - Off-the-shelf kits also available (BT5960-FD100 shown in the image)

Product Specification Sheets

Specification Sheet - English (PDF)

Fiche de Spécifications - Français (PDF)

Specificatieblad - Nederlands (PDF)

Hoja de Especificación - Español (PDF)

Spezifikationsblatt - Deutsch (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawings

Technical Drawing (PDF)
