Full Motion Articulating Arm Medical Ceiling Mount

BT7594

For Screens From 2kg - 8kg




Designed for flat screens up to 28", this full motion ceiling mount is ideal for mounting above and beside hospital beds. Supplied with an optional handle for easy screen positioning and a built-in gas spring system that offers simple height and distance adjustment. The space saving design enables the mount to be folded flat when not in use.






  • Full motion mount designed for ceiling mounting

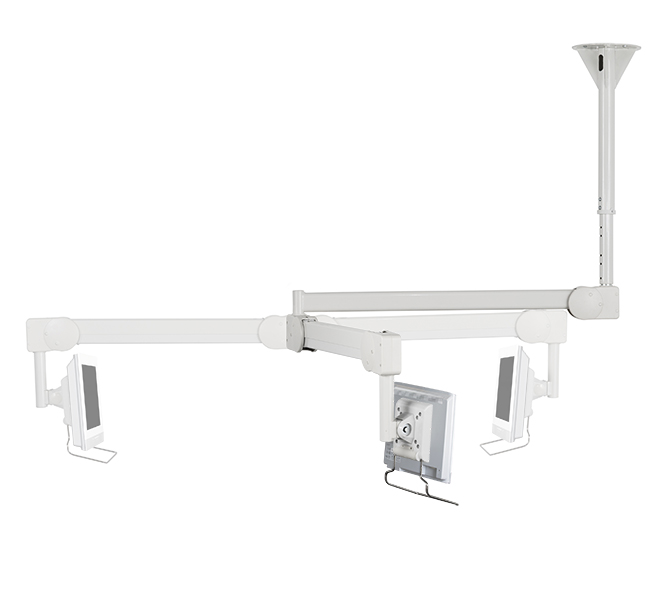

  • Arm extension allows screen to be positioned up to 1895mm from the center of the mount
  • Tool-less tilt and swivel adjustment allows for perfect positioning
  • Adjustable ceiling drop height in 100mm increments
  • Built-in gas spring system offers easy height and distance adjustment
  • Manufactured with Interpon® anti-bacterial powder coating, shown
    in tests to reduce bacterial population by a minimum of 99%
  • Comes with power and LAN cable pre-installed inside the arm
  • Integrated cable management for a neat and tidy installation
  • Recommended screen size: up to 28” (71cm)
  • Min and max load: 2kg - 8kg (4.4- 17.6lbs)
  • VESA® compatibility: 75 x 75 and 100 x 100
  • Tilt: -10 / +40˚
  • Swivel: 330°
  • Extension: up to 1895mm (74.6”)
  • Colour: White

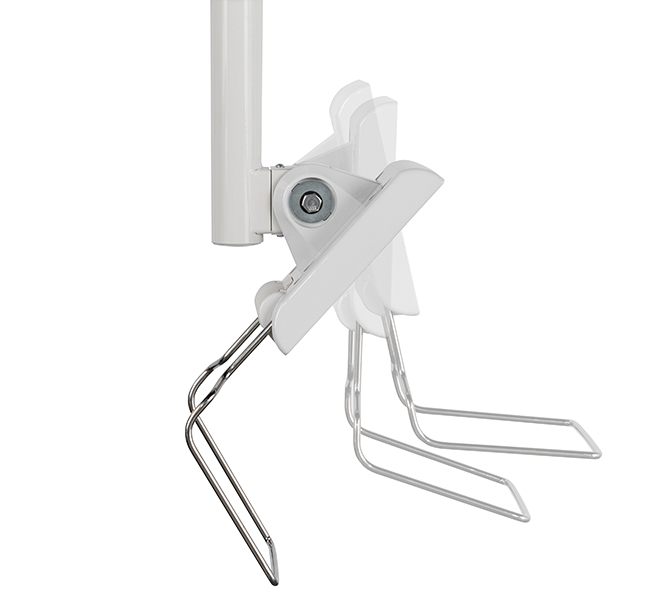

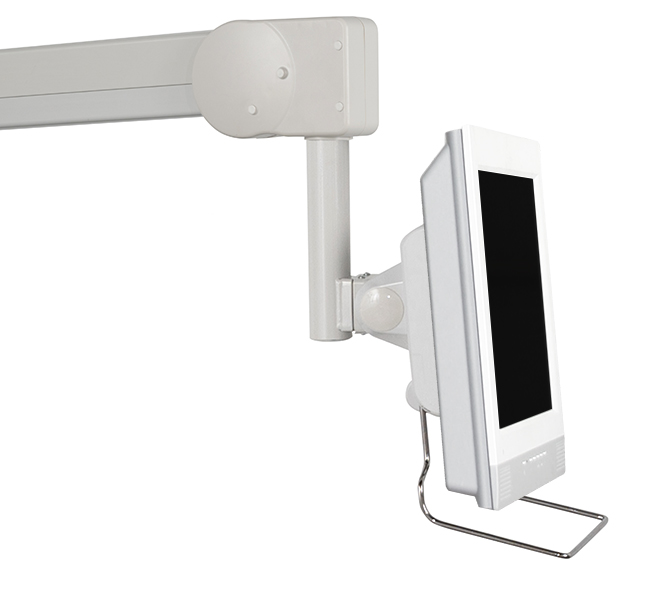

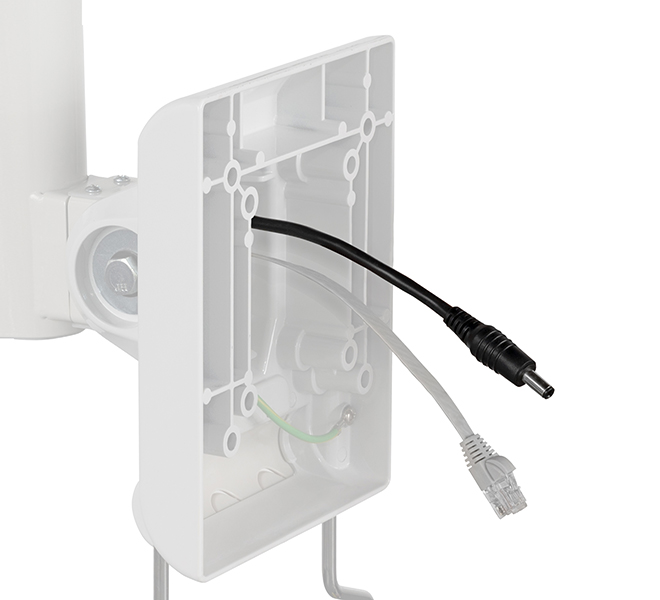

BT7594 - Supplied with optional handle for easy screen positioning BT7594 - Pre-installed power (DC Jack Cable) & cat 6 flat cable (LAN cable) inside the arm BT7594 - Features screen tilt and swivel functions BT7594 - Tool-less tilt and swivel adjustment allows for perfect positioning

Specification Sheet

Specification Sheet (PDF)

Spezifikationsblatt - Deutsch (PDF)



Installation Guide

Installation Guide (PDF)
