Back-to-Back Universal E-Paper Stand with Tilt

BT7613

For E-Paper displays up to 43"




The BT7613 is a stylish freestanding floor stand designed to hold two E-Paper displays back-to-back. With its minimalist aesthetic and practical design, it provides an elegant solution for presenting content to audiences on both sides, making it ideal for open public and commercial spaces. The stand is supplied with all required mounting components for a quick and straightforward installation with options to remove the base cover or to bolt the stand directly to the floor. Perfect for retail, wayfinding, and digital signage, the BT7613 maximises visibility to deliver maximum impact within a compact footprint.








  • Back-to-back stand available in Black or White colour options
  • Simple tilt adjustment for optimal viewing angles
  • Lockable storage compartment provides access for connecting devices
  • For an alternative aesthetic, use without optional base cover
  • Mounts screens in both portrait and landscape orientation
  • Built-in cable management
  • Kensington Lock slot (lock not included) for enhanced theft protection
  • Floor-fix capability if required (fixings not included)
  • Height-adjustable feet ensure stability on uneven surfaces
  • Provision for fixing a lighting bar
  • For indoor use only
  • 100% plastic free packaging
  • Max recommended screen size 43"
  • Max load per screen 7kg (10kg with optional base cover)
  • VESA® fixings up to 200 x 200
  • Tilt in portrait orientation* 10° upward / 10° downward
  • Tilt in landscape orientation* 20° upward / 20° downward
  • Stand dimensions W: 470mm H: 1265mm D: 470mm
  • Max storage area load 1kg
  • Storage area dimensions W: 190mm H: 108mm D: 28mm
  • Height adjustable feet +15mm
  • Colour Black or White

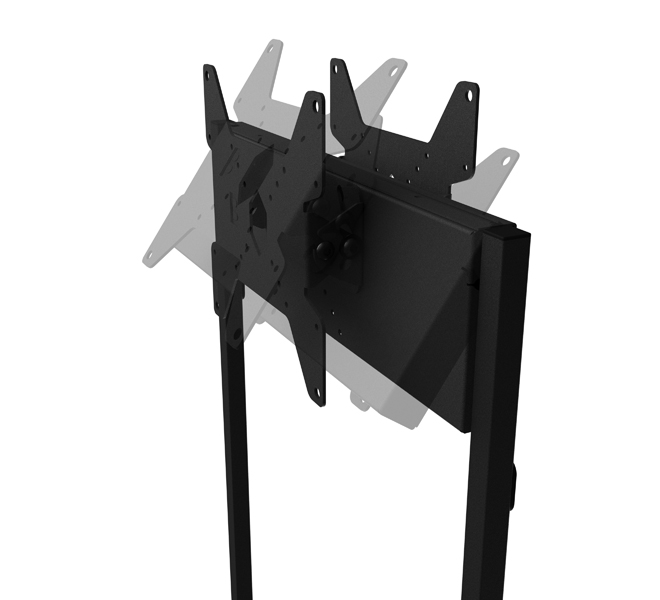

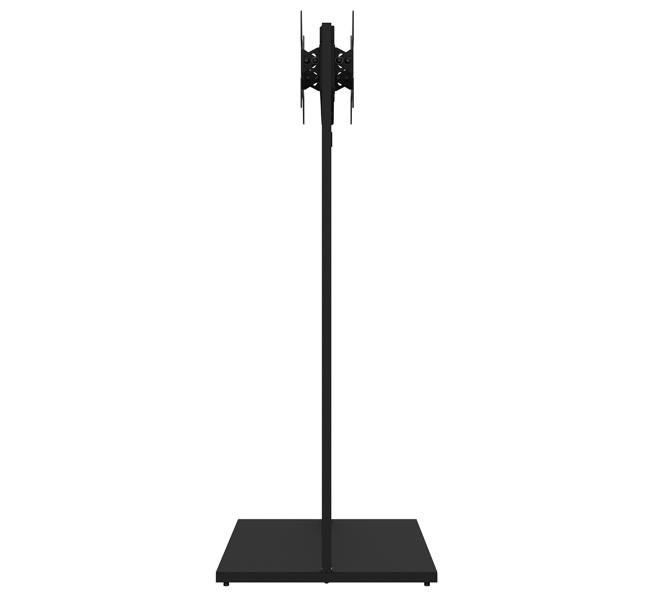

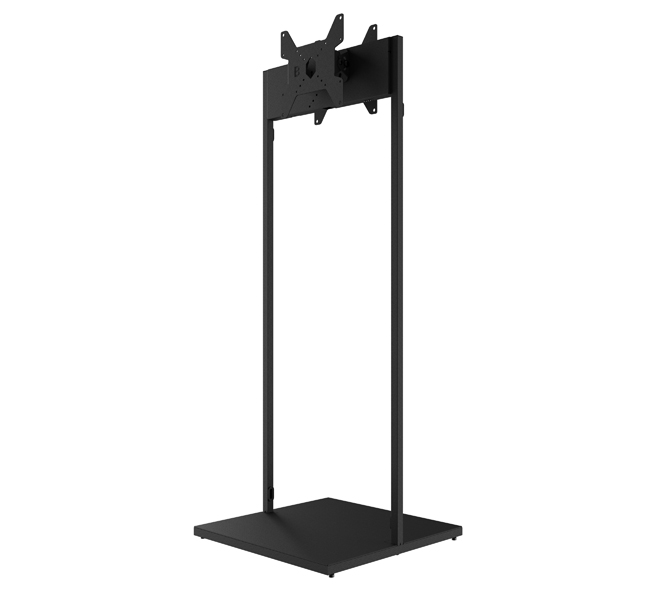

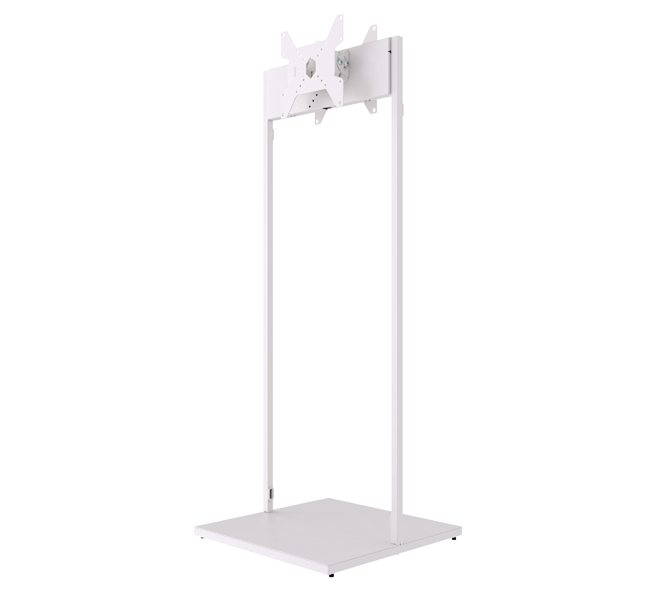

BT7611 - Available in white BT7613 - Isometric view BT7613 - Side view BT7613 - Tilt range

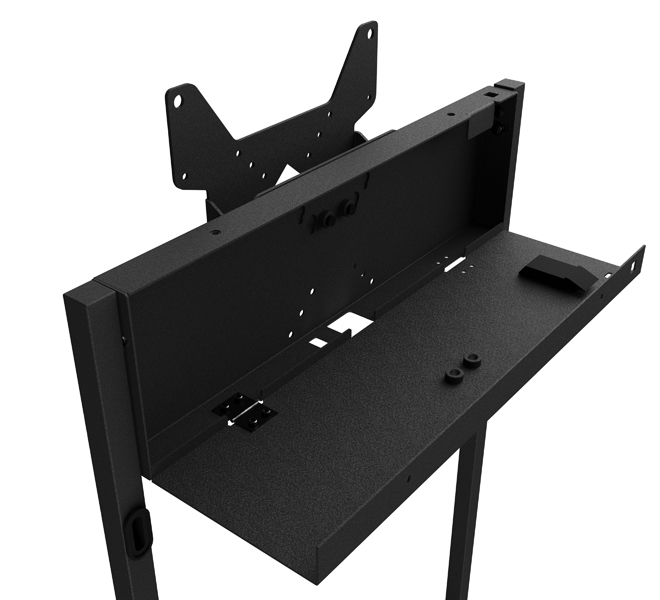

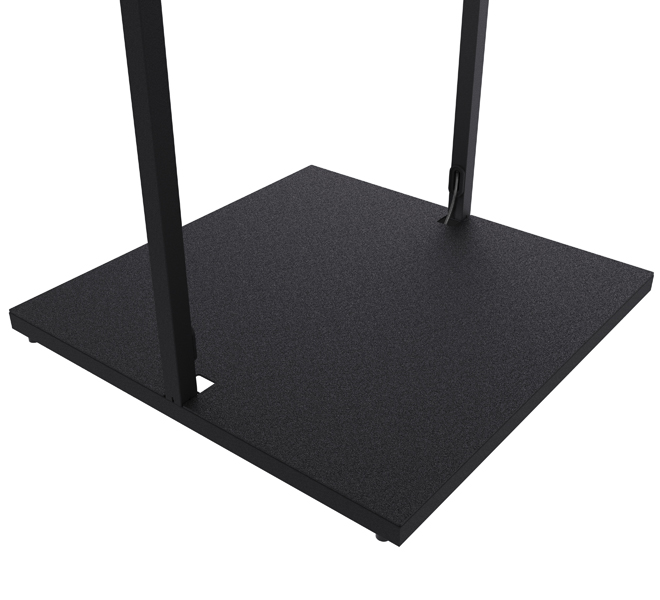

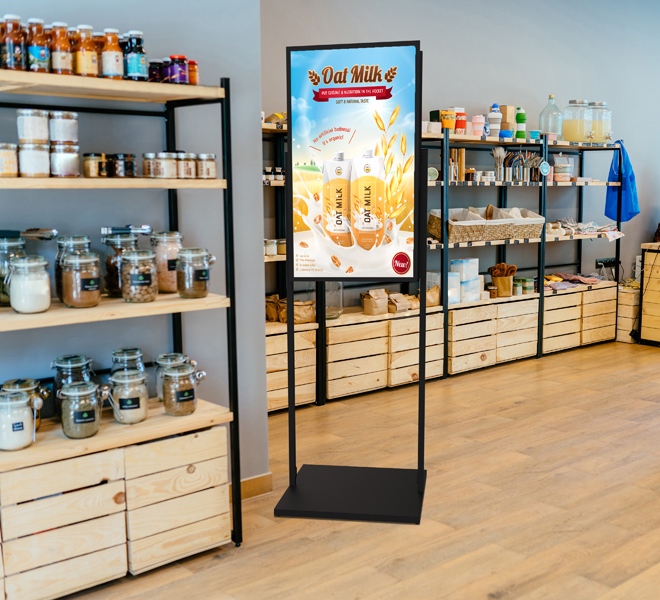

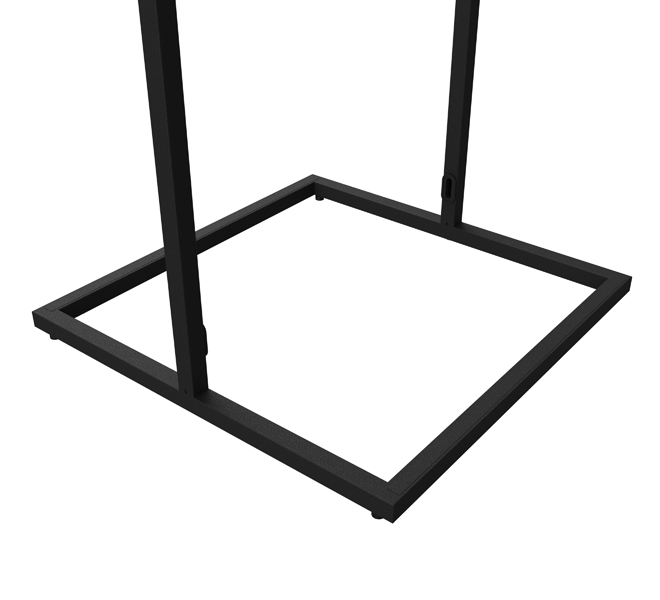

BT7613 - Storage compartment BT7613 - With base cover BT7613 - Without base cover BT7613 - Lifestyle

Specification Sheet

Specification Sheet - English (PDF)

Specification Sheet - US (PDF)



Technical Drawing

Technical Drawing (PDF)
