Back-To-Back Stand with Tilt and Security Cover for Samsung 32 inch E-Paper

BT7613-SAM32

For Samsung’s 32" EMDX E-Paper




The BT7613-SAM32 is a freestanding floor stand designed to mount two Samsung 32" E-Paper EMDX displays back-to-back. Its lightweight, minimalist structure provides a clean and elegant solution for presenting dual screens in public or commercial environments. Featuring protective rear covers and intergrated cable management, the stand is supplied with all required mounting components for a quick, straightforward installation with options to remove the base cover or to bolt the stand directly to the floor. Ideal for retail, wayfinding and public spaces, maximising visibility from both sides while maintaining a small footprint.









  • Simple tilt adjustment for optimal viewing angles
  • Lockable compartment provides storage for a power bank
  • Features up and down tilt adjustment
  • For an alternative aesthetic, use without optional base cover*
  • Rear covers can be assembled to cover the displays ports or both ports and buttons
  • Kensington Lock slot (lock not included) for enhanced theft protection
  • Screens hook on-off for ease of access
  • Mounts screens in both portrait and landscape orientation
  • Floor-fix capability if required (fixings not included)
  • Height-adjustable feet ensure stability on uneven surfaces
  • Provision for fixing a lighting bar
  • For indoor use only
  • 100% plastic free packaging
  • Designed for use with: Samsung 32" E-Paper EMDX
  • Recommended max tilt: 15° upwards / 15° downwards
  • Dimensions without screen (Portrait): W: 478mm H: 1468mm D: 470mm
  • Dimensions without screen (Landscape): W: 673mm H: 1277mm D: 470mm
  • Max storable power bank size: W: 190mm H: 108mm D: 28mm
  • Height adjustable feet: +15mm
  • Colour: White

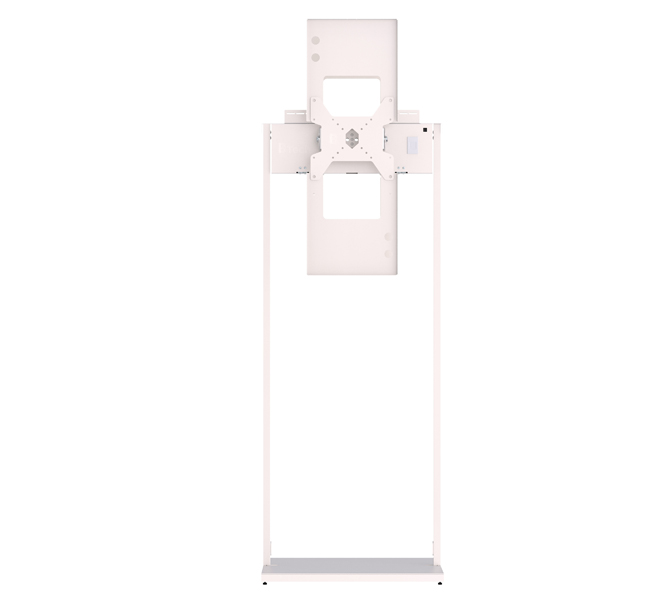

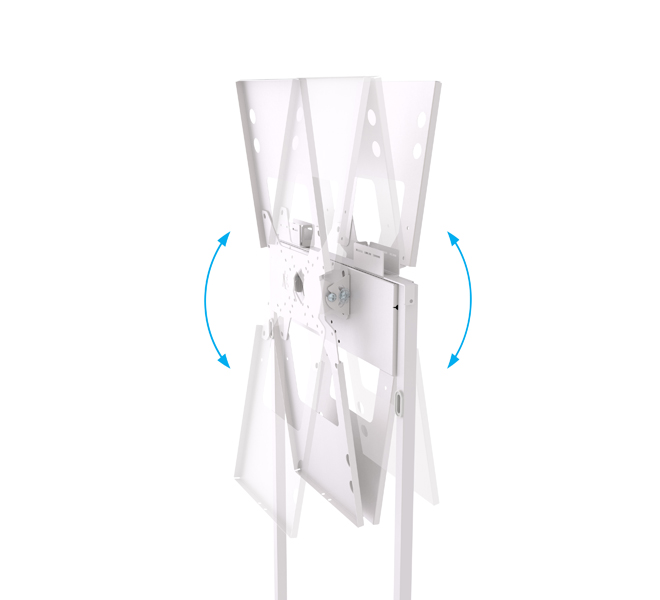

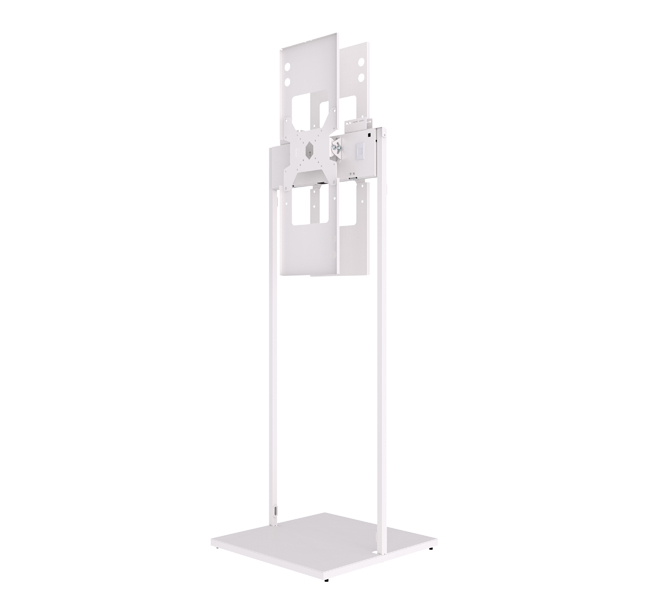

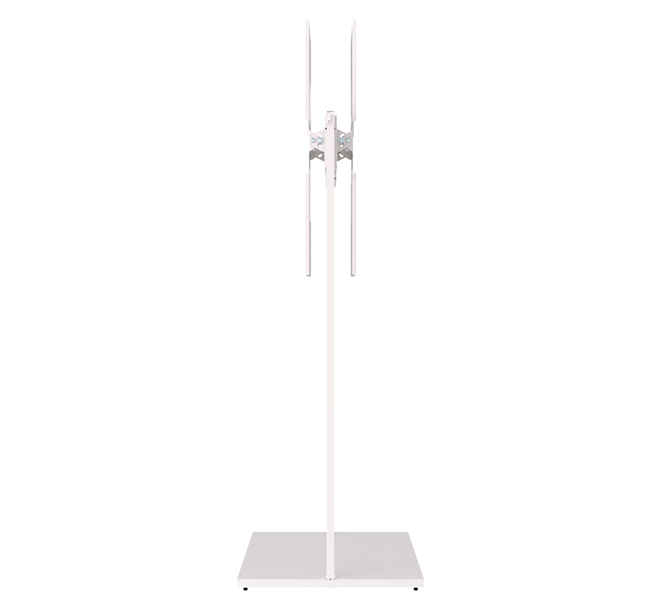

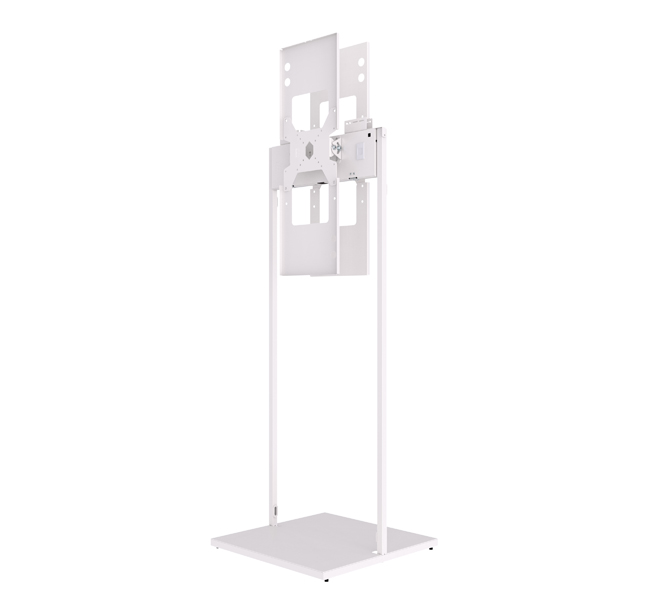

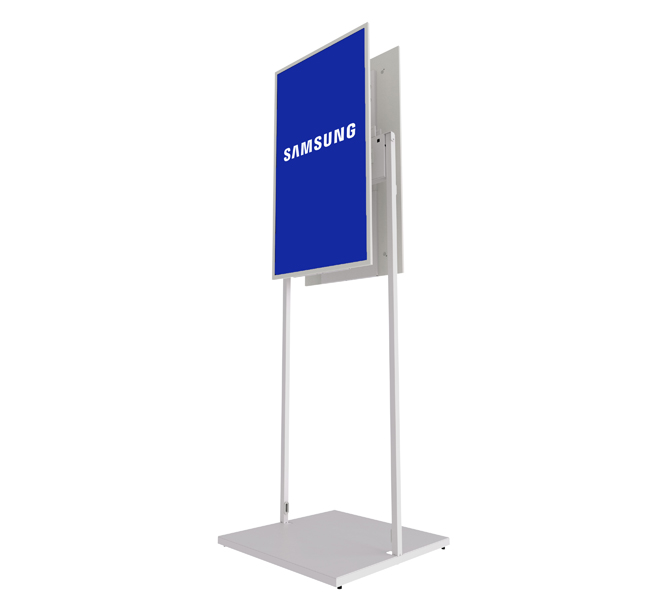

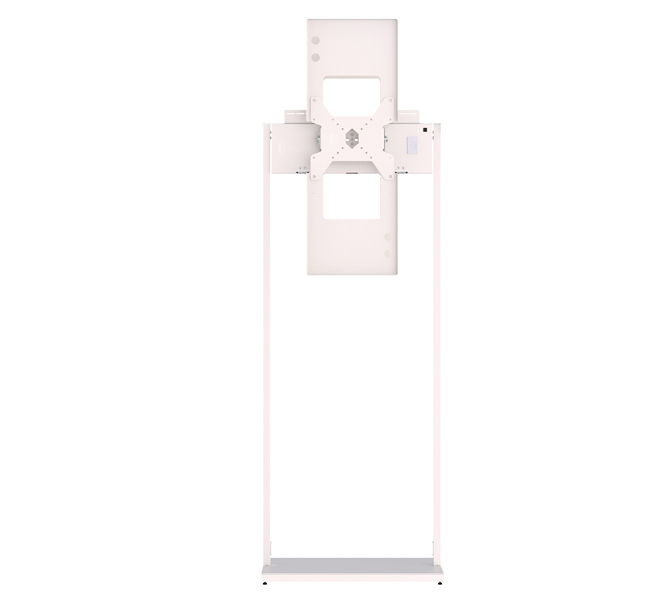

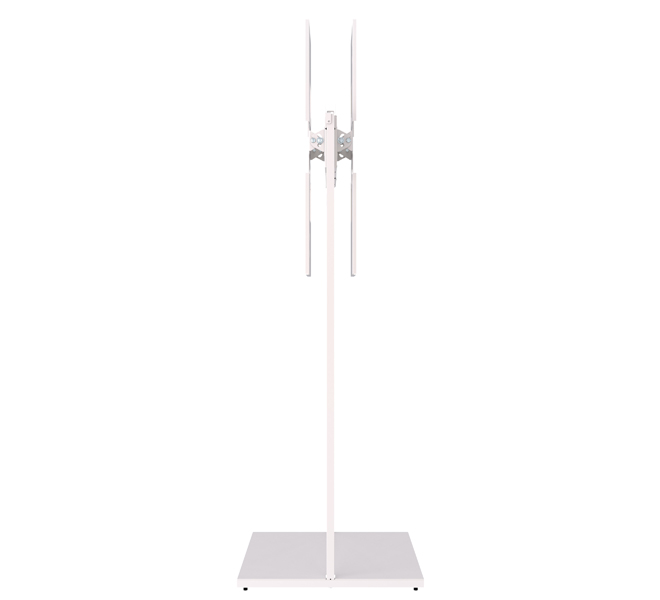

BT7613-SAM32 - Isometric view BT7613-SAM32 - Front view BT7613-SAM32 - Side view BT7613-SAM32 - Tilt range

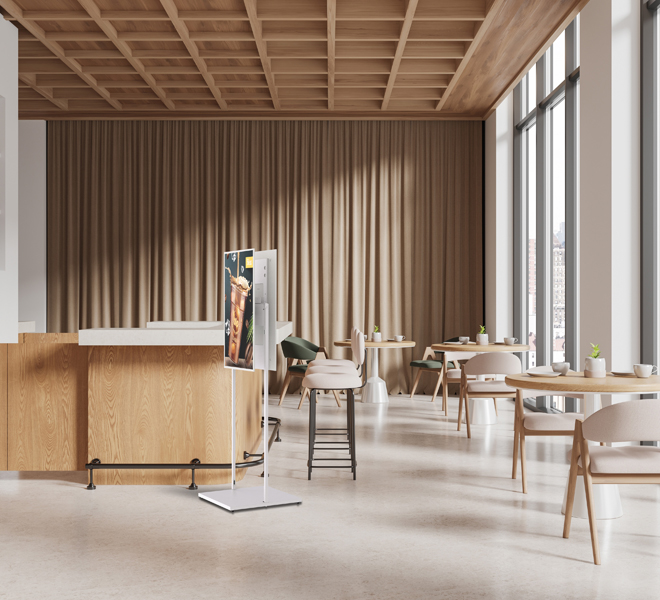

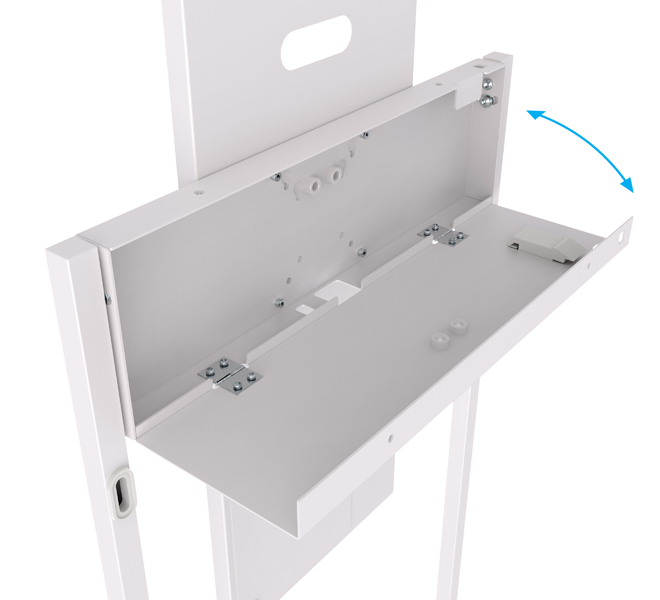

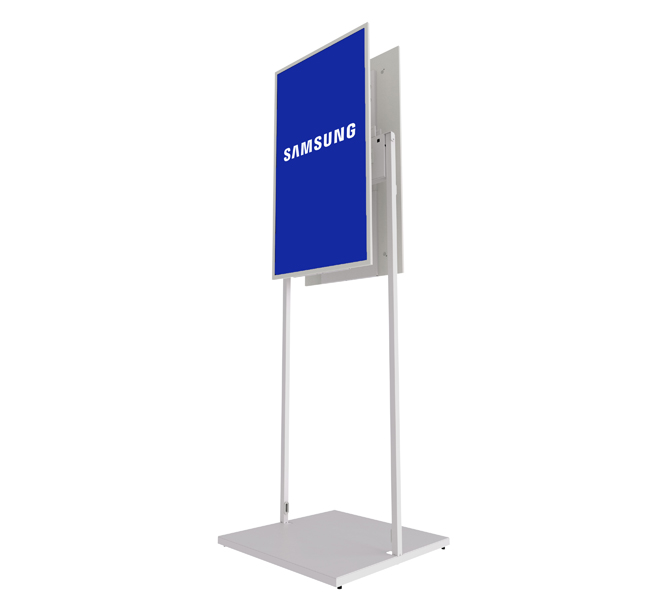

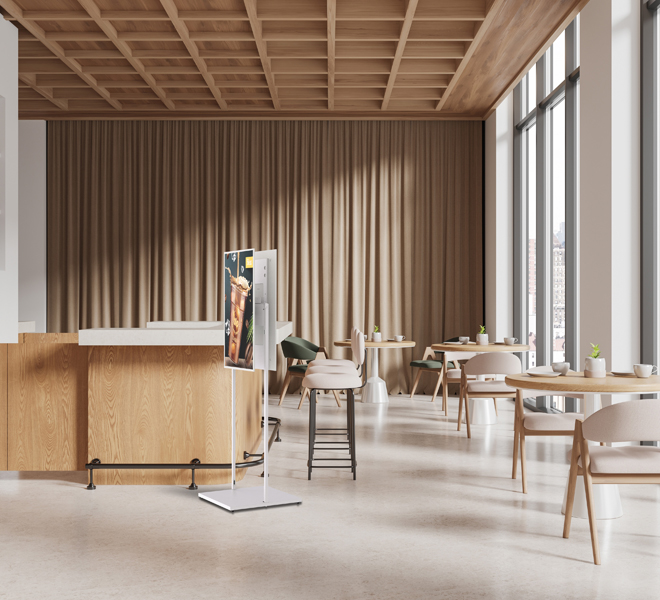

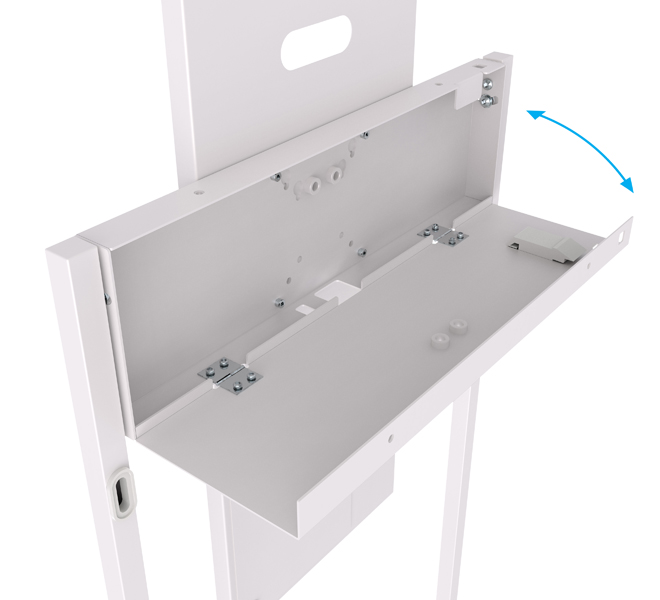

BT7613-SAM32 - Designed specifically for use with Samsung 32 inch E-Paper displays BT7613-SAM32 - Lockable compartment provides storage for a power bank BT7613-SAM32 - For an alternative aesthetic, use without optional base cover BT7613-SAM32 - Lifestyle

Specification Sheet

Specification Sheet - English (PDF)

Specification Sheet - US (PDF)



Technical Drawing

Technical Drawing (PDF)
