Mounting Plate for Logitech Rally Bars

BT7873

Ideal for Video Conferencing

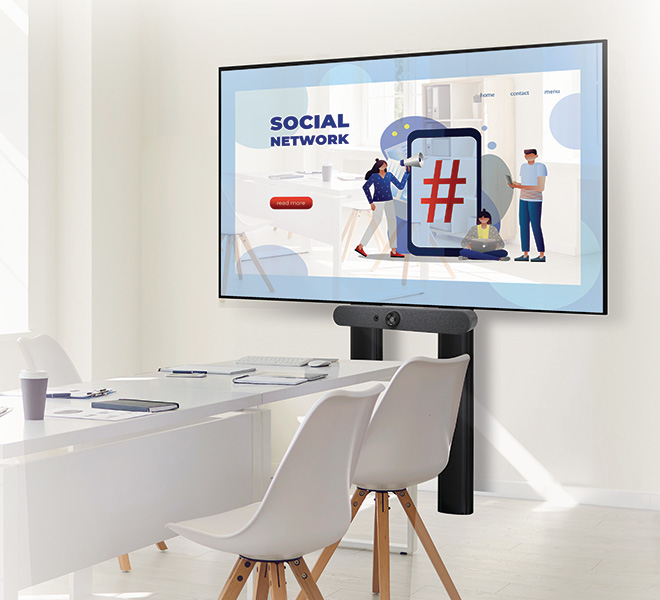

The BT7873 is designed specifically to mount a Logitech Rally Bar or a Logitech Rally Bar Mini to a variety of B-Tech products. The mounting plate allows the video bar to be mounted above or below a screen and can be fixed to B-Tech columns (BT8380, BT8381 or BT8385), single or twin ø50mm poles using a B-Tech collar, a System X rail using a BT8390-SA, or onto a compatible flat screen wall mount using a BT7031 able Accessory Mounting Arm.





  BT7871 - Adaptor Plate
  • Designed to mount the Logitech Rally Bar or Rally Bar Mini to a variety of B-Tech products
  • Mounts across a single or dual BT8380, BT8381 or BT8385 columns
  • Use with a BT7031 Adjustable Mounting Arm to mount onto a range of B-Tech flat screen wall mounts such as the BT8431, BT8432, BT8441, BT8442, BT9901 and BT9903
  • Compatible with BT7052 / BT7841 collars for use with ø50mm poles, also suitable for use with B-Tech trolleys and floor stands
  • Can also be used with BT8390-SA to mount above or below a screen that is mounted on a BT8390 System X rail
  • Simple installation
  • All mounting hardware included
  • Max load: 8kg (17.6lbs)*
  • Dimensions: W: 440mm D: 30mm (W: 17.3" x D: 1.2")
  • Colour: Black
  • Compatible Videobars: Logitech Rally Bar / Logitech Bar Mini

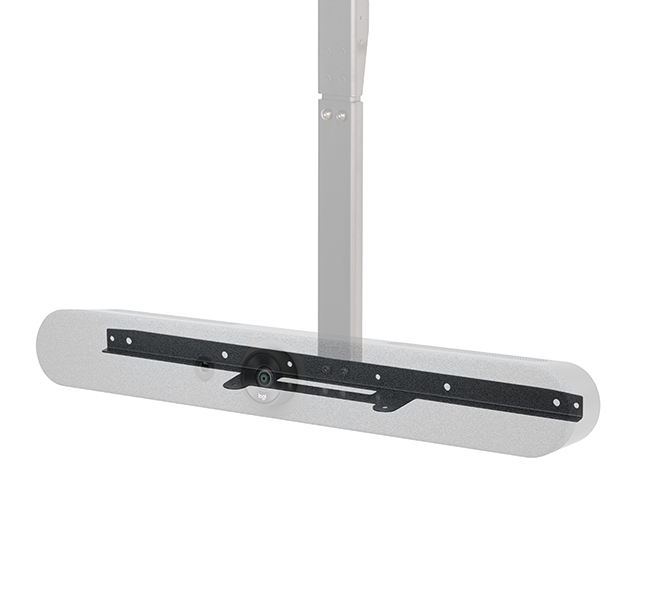

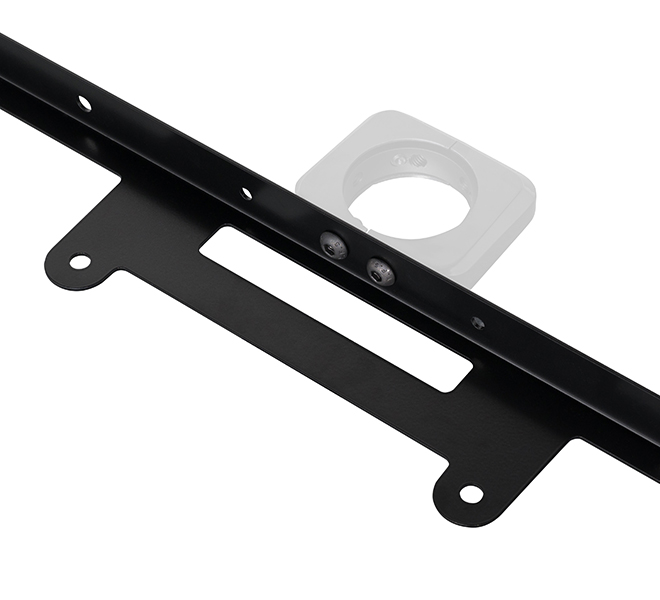

BT7873 - Fits above or below a screen when used with BT8390-SA BT7873 - Used in conjunction with B-Tech Accessory Collars, the BT7873 can to be pole mounted BT7873 - Made from 6mm thick steel the adaptor plate is secure yet slim in design

Product Specification Sheets

Specification Sheet - English (PDF)

Spezifikationsblatt - Deutsch (PDF)



Assebley Leaflet

Assembly Leaflet (PDF)



Technical Drawings

Technical Drawing (PDF)
