Flat Screen Articulating Wall Mount

BT8237

Folds Flat To The Wall




Designed for medium to large sized screens, the BT8237 supports weights up to 80kg (176lbs) and features a low-profile design that mounts screens just 73mm (3") from the wall. The universal interface accommodates mounting patterns up to 600 x 400mm and comes with adjustment screws which allow the screen to be levelled once mounted.





   BT8237 - Flat Screen Articulating Wall Mount

  • Twin arms with three swivel points for a multitude of
    positioning options
  • Folds flat to the wall
  • Central keyhole fixing point for an easy fix and level adjustment
  • Six cable management clips supplied to ensure a tidy install
  • All fixing points are concealed behind attractive coverplates
    to hide fixings
  • Mount has a 699mm (27.5") extension range from the wall
  • Lateral adjustment of screen once mounted
  • Levelling screws allow adjustment of screen height
  • Security fixings prevent unauthorised removal
  • Padlock tabs on arms for additional security (padlock not included)
  • Recommended screen size: 32" (81cm) - 75" (190cm)
  • Max load: 80kg (176lbs)
  • VESA® compatibility: 200mm x 100mm up to 600mm x 400mm
  • Distance from wall (flat): 73mm (3")
  • Distance from wall (extended): 699mm (27.5")
  • Swivel: 120°
  • Colour: Black

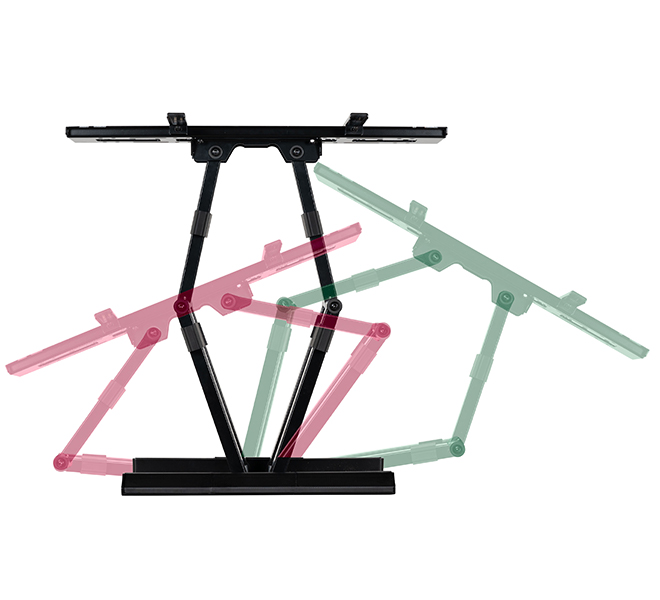

BT8237 - Twin arms with three swivel points for a multitude of positioning options

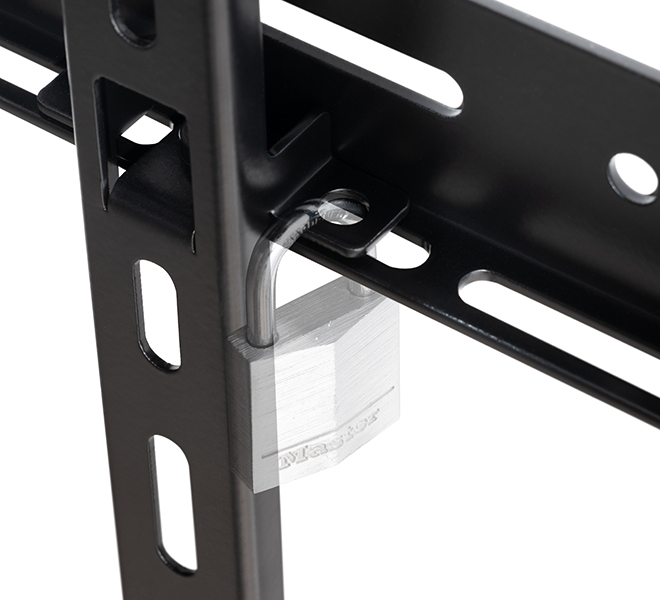

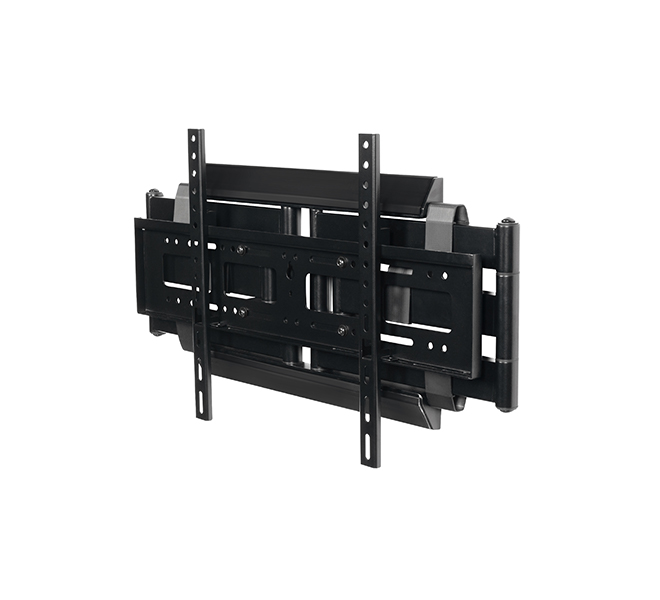

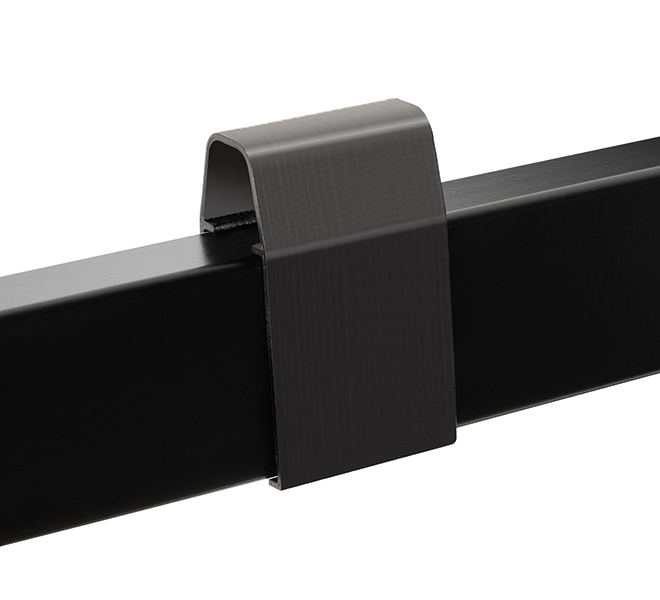

 BT8237 - Padlock tabs on arms for additional security (padlock not included) BT8237 - Six cable management clips supplied to ensure a tidy install BT8237 - Slim design folds flat to the wall

Specification Sheet

Specification Sheet (PDF)

Specification Sheet - US Letter Size (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)
