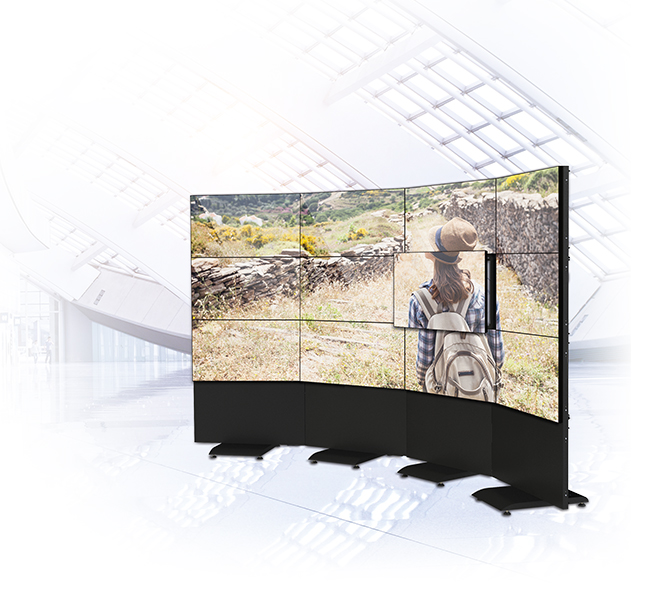

Pop-out, Modular Freestanding Curved Videowall Mount

BT8353

For Screens up to 50kg (110lbs)

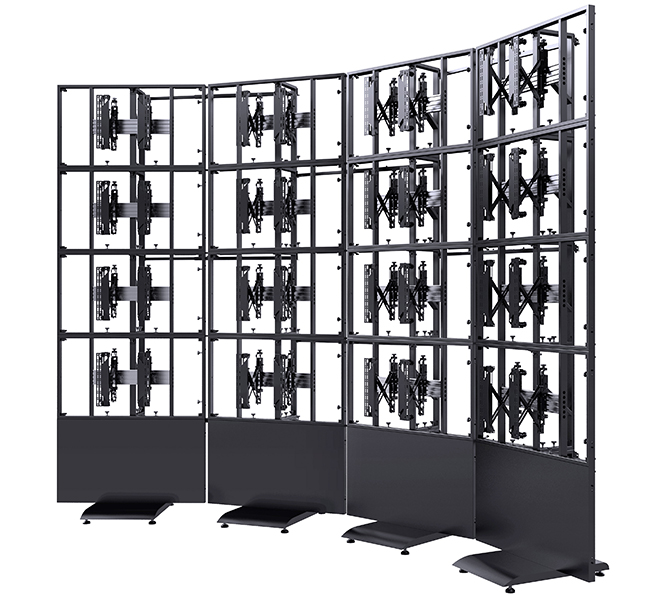

The BT8353 is a modular, curved freestanding videowall mounting system with pop-out interface arms for easy screen maintenance. Available for use in both landscape and portrait configurations, the BT8353 can be used for installations up to 7 rows high and as many columns wide as desired. The modular design features adjustable compass brackets which allow the angle of each column to be adjusted by up to 30°, meaning a full 180° curve can be achieved with just 7 columns. Fast-fit connectors make assembly and disassembly of videowalls extremely quick and easy whilst the tool-less micro-adjustment allows screens to be perfectly aligned with ease.

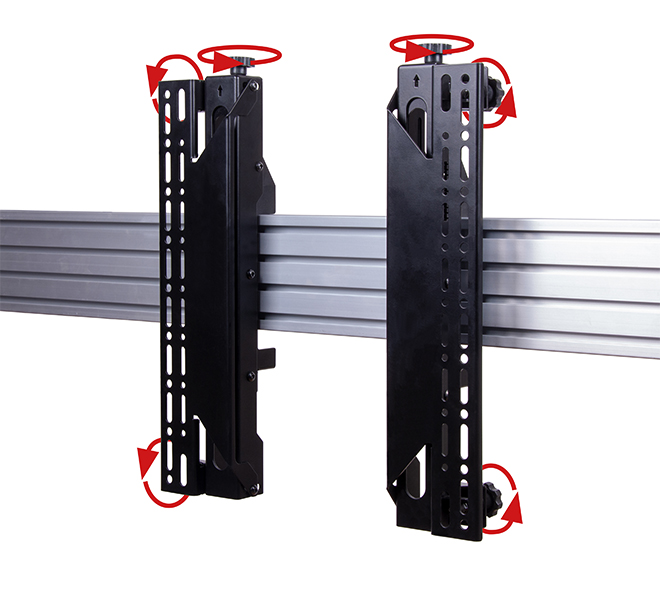

Tool-less micro-adjustment at 8 points for seamless screen alignment

 Configure a BT8353

  • Modular design allows quick and easy assembly and disassembly of curved videowalls -
    perfect for rental applications
  • Order to your exact requirements, anything from 2x2 to 70x7
  • Can be ordered for landscape or portrait screen mounting*
  • Features pop-in, pop-out function to aid installation and to allow access to the rear of
    screens for servicing and maintenance
  • Tool-less micro-adjustments for seamless display alignment
  • Captive, fast-fit nuts and screws make assembly & disassembly quick & easy
  • Durable Epoxy powder coated frame is ideal for repeated assembly
  • Floor spacers with cosmetic covers are available for smart installation
  • Safety screws help prevent unauthorised removal of screens
  • Base sections can face backwards if desired
  • Wall tie-back accessories (BT8350-EB and BT8380-WTB) also available
  • Flat, non pop-out and flat pop-out versions also available (see BT8351 and BT8352)

    * Landscape / portrait must be specified when ordering, a landscape kit can be used in
    portrait orientation with a few additional parts

  • For screen sizes: 46", 49" and 55"
  • Max load: 50kg per screen
  • VESA® compatibility: 200 x 200 up to 600 x 400
  • Curve adjustment: up to 30° per column
  • Depth: Determined by configuration and angle of curve
  • Colour: Black
Pop-out, Modular Freestanding Curved Videowall Mount Flat, pop-out and curved pop-out versions also available (see BT8350/ BT8351 / BT8353) Adjustable support bar provides added stability to videowall installations Pop-out, Modular Freestanding Curved Videowall Mount

Specification Sheet (PDF)

Installation Guide (PDF)

Technical Drawing (PDF)
