Universal Bolt Down Videowall Stand

BT8372

Recommended Screen Size: 32" - 70"




Designed to mount videowalls, the BT8372 is a fixed position mounting solution with a universal design suitable for all videowall screens from 32" to 70". Ideal for retail displays and other applications with minimal floor space, the BT8372 is part of B-Tech's dynamic System X range; a contemporary mounting solution which is lightweight yet incredibly strong, has a high-end aesthetic quality and comes with important time saving features, such as tool-less micro-adjustment and a universal screen position spacer to speed up the installation process. Off-the-shelf 2x2 and 3x3 packages are avaialble for the BT8372 or for a custom configuration please contact us.





BT8372-2x2 - System X Universal Bolt Down Videowall












 Configure a BT8372

  • Configurable mounting solution available to order to your requirements, from stock -
    see configurator info
  • Specify other requirements using the System X configuration tool
  • Suitable for landscape or portrait mounting
  • Small footprint for an unobtrusive installation into confined areas
  • Tool-less micro-adjustments for seamless screen alignment
  • Integrated cable management
  • Collar compatible accessories such as shelves can be fitted directly to the extrusion
  • Includes re-usable screen position spacer to aid installation of screens
  • Safety screws help prevent unauthorised removal of screens
  • All mounting hardware included

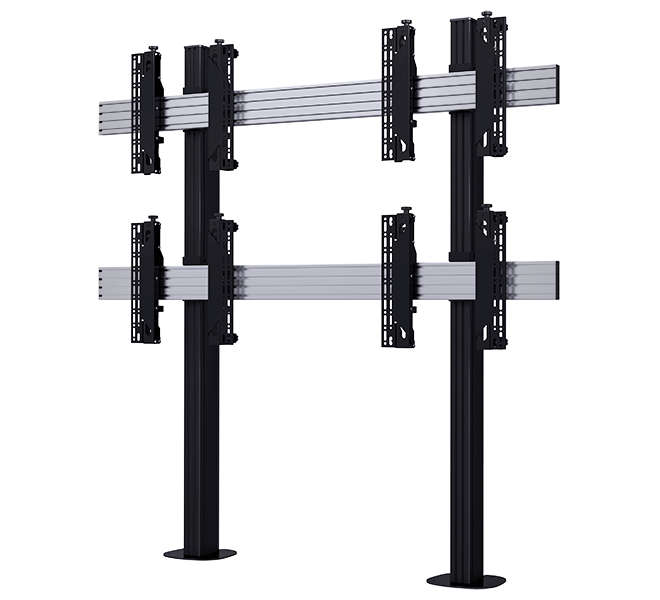

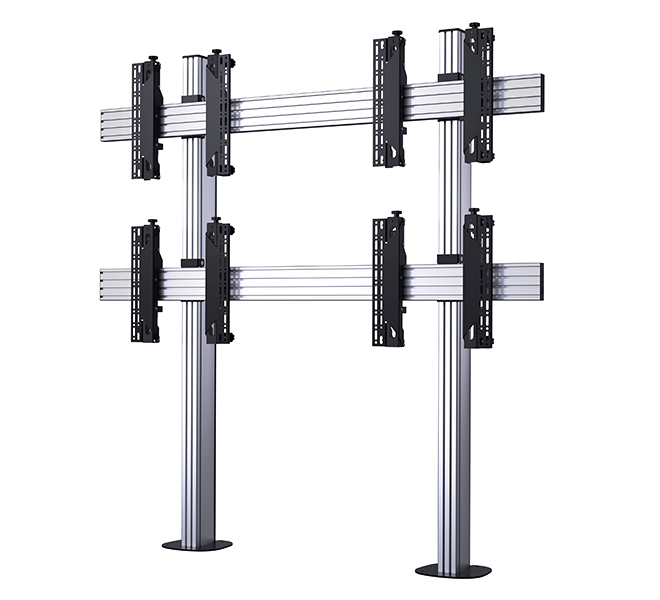

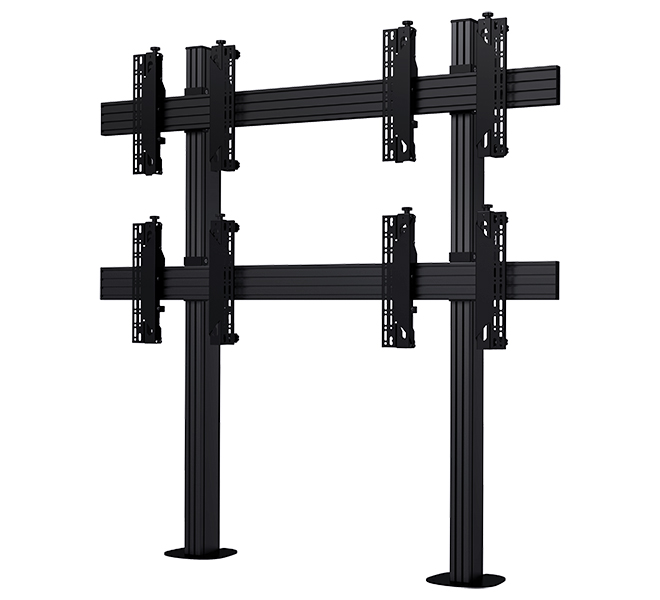

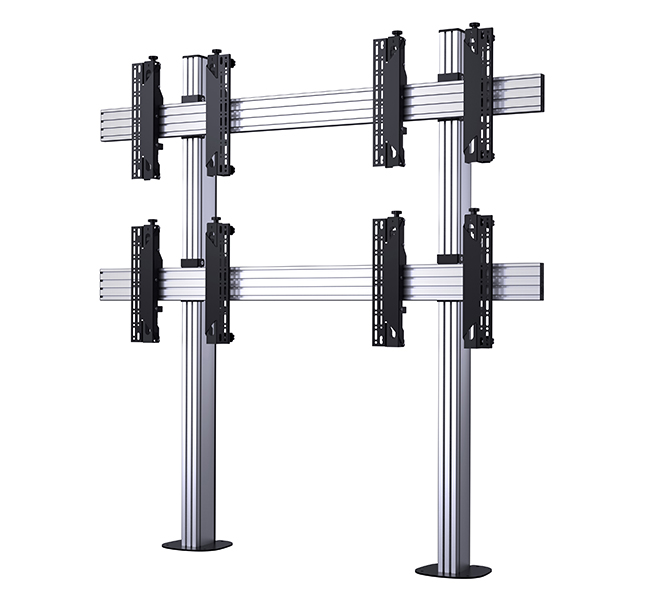

BT8372-2x2

System X
Universal Bolt Down Videowall Stand for 2x2 Videowalls (for 46" to 60" screens)

Off-the-shelf kit designed to mount 46" (116.8cm) -60" (152.4) screens in a 2x2 configuration

  • Recommended screen size: 46" (116.8)
    - 60" (152.4)
  • Max load: 50kg (110lbs) (per screen)
  • VESA® and non-VESA fixings: up to 600mmx400mm
  • Dimensions:
    W: 2005mm (78.9") H: 1806mm (71") up to 2007mm (79")
  • Base Thickness: 6mm (0.23")
  • Colour (base & interface arms): Black
  • Colour (columns & rails): Black or Silver

    Full product specification sheet available on the Downloads tab

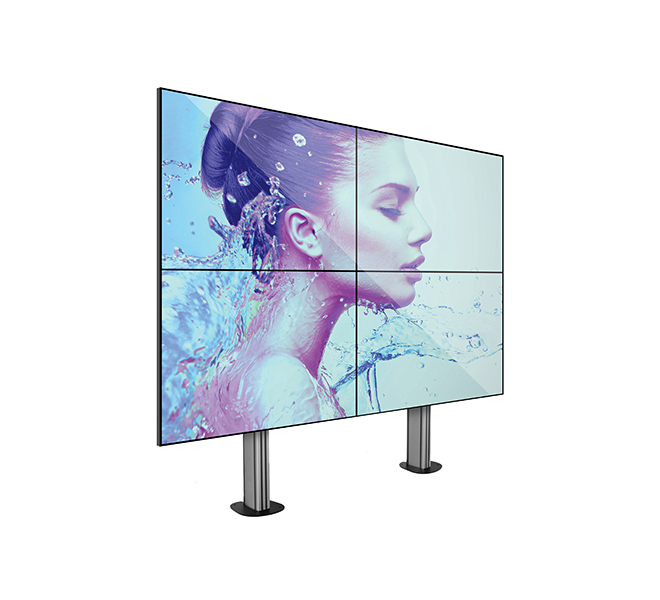

BT8372-2x2 - System X Universal Bolt Down Videowall Stand for 2x2 Videowalls

BT8372-3x3

System X
Universal Bolt Down Videowall Stand for 3x3 Videowalls (for 46" to 55" screens)

Off-the-shelf kit designed to mount 46" (116.8cm) -55" (139.7cm) screens in a 3x3 configuration

  • Recommended screen size: 46" (116.8cm)
    - 55" (139.7cm)
  • Max load: 50kg (110lbs) (per screen)
  • VESA® and non-VESA fixings: up to 600mmx400mm
  • Dimensions:
    W: 3005mm (118.3") H: 2406mm (94.7") up to 2608mm (102.7")
  • Base Thickness: 6mm (0.23")
  • Colour (base & interface arms): Black
  • Colour (columns & rails): Black or Silver

    Full product specification sheet available on the Downloads tab

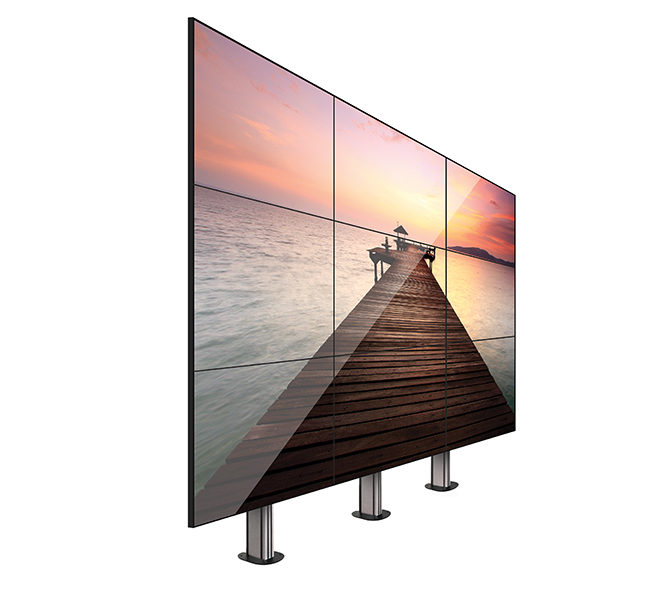

BT8372-3x3 - System X Universal Bolt Down Videowall Stand for 2x2 Videowalls

BT8372-3x3-60

System X
Universal Bolt Down Videowall Stand for 3x3 Videowalls (for 60" screens)

Off-the-shelf kit designed to mount 60" (152.4cm) screens in a 3x3 configuration

  • Recommended screen size: 55" (139.7cm)
    - 60" (152.4cm)
  • Max load: 50kg (per screen)
  • VESA® and non-VESA fixings: up to 600mmx400mm
  • Dimensions:
    W: 3505mm (138") H: 2406mm (94.7") up to 2608mm (102.7")
  • Base Thickness: 6mm (0.23")
  • Colour (base & interface arms): Black
  • Colour (columns & rails): Black or Silver

    Full product specification sheet available on the Downloads tab
BT8372-3x3-60 - System X Universal Bolt Down Videowall Stand for 3x3 Videowalls
BT8372-2x2 - System X Universal Bolt Down Videowall Stand for 2x2 Videowalls BT8372-2x2 - System X Universal Bolt Down Video Wall Stand for 2x2 Video Walls BT8372-3x3 - System X Universal Bolt Down Videowall Stand for 3x3 Videowalls BT8372-3x3 - System X Universal Bolt Down Video Wall Stand for 3x3 Video Walls

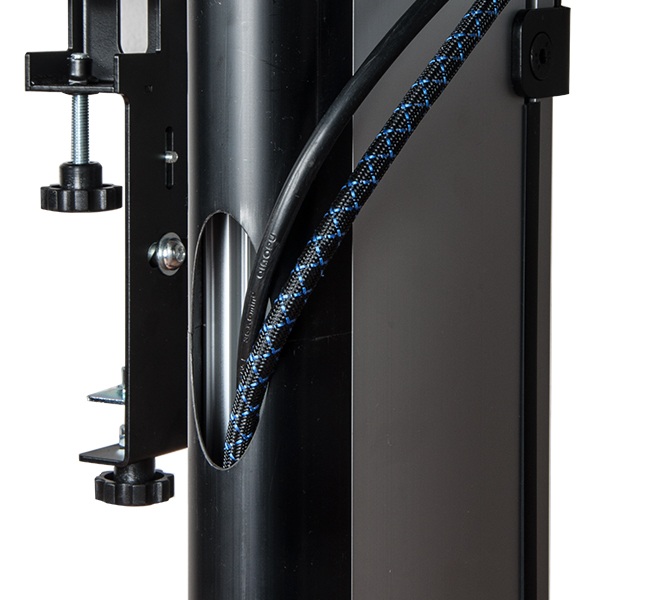

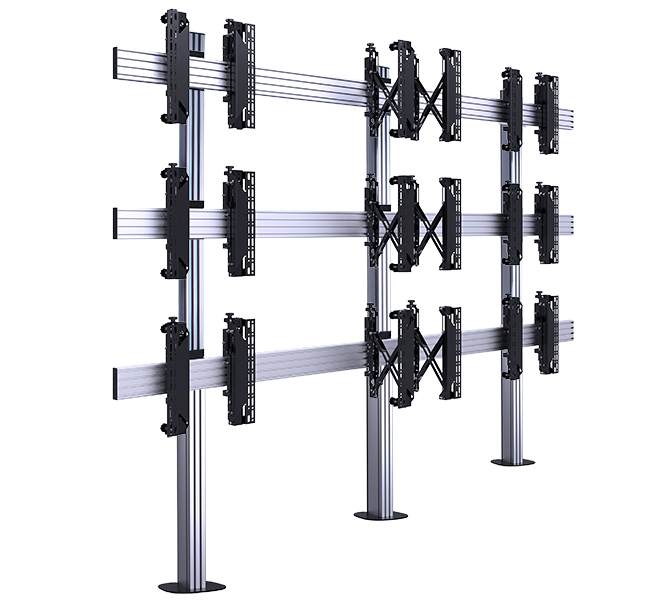

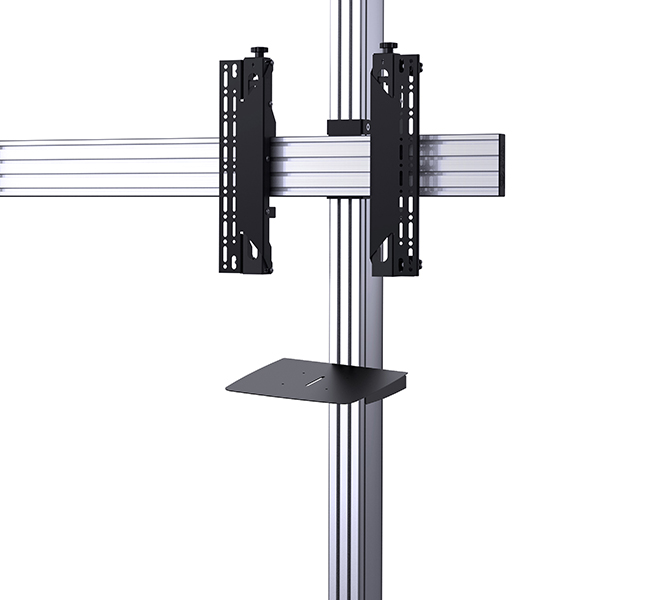

BT8372-2X2 Also available with pop-out interface arms BT8372-2X2 - Accessory Shelf BT8372 - Cable management hides untidy cables and adds to the stylish finish

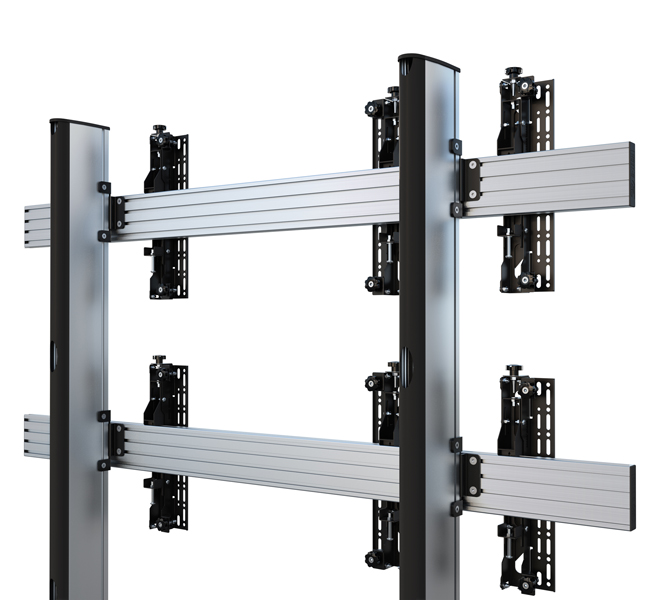

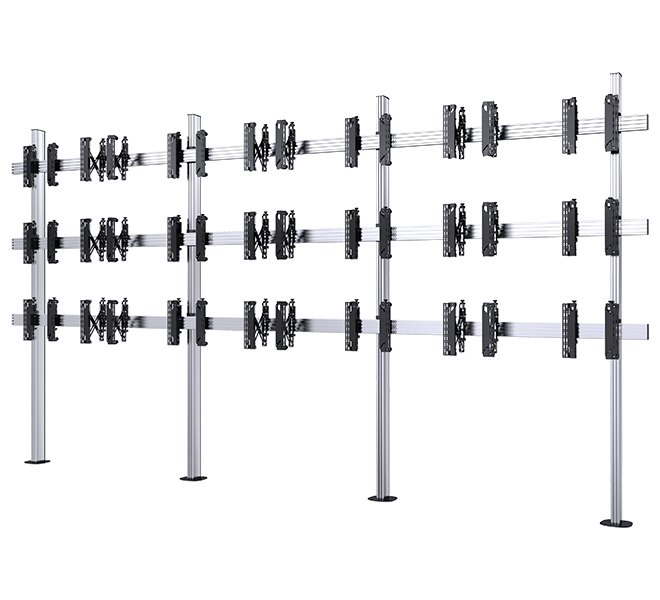

Tool-less 8-point Micro-adjustment Colour option (Silver/Black) Colour option (Black/Black) Online configuration tool to specify alternative configurations, in both landscape and portrait orientations

Installation Overview Video

Assembly Leaflets

BT8372 Installation Guide (PDF)


Specification Sheets

BT8372 Specification Sheet - English (PDF)

BT8372-2X2 Specification Sheet - English (PDF)

BT8372-3X3 Specification Sheet - English (PDF)

BT8372-3X3-60 Specification Sheet - English (PDF)

BT8372 Fiche de Spécifications - Français (PDF)

BT8372 Specificatieblad - Nederlands (PDF)

BT8372 Hoja de especificación - Español (PDF)

BT8372 Spezifikationsblatt - Deutsch (PDF)

BT8372-2X2 US Specification Sheet (PDF - Imperial Units)

BT8372-3X3 US Specification Sheet (PDF - Imperial Units)

BT8372-3X3-60 US Specification Sheet (PDF - Imperial Units)

Trang thông số kỹ thuật - Tiếng Việt (PDF)



Publications

Introduction to System X (PDF)

Introduction to System X - Español (PDF)



Technical Drawings

BT8372-2X2 Technical Drawing (PDF)

BT8372-3X3 Technical Drawing (PDF)
