Universal Mobile Videowall Stand

BT8371

Fits all screens 32" - 70"




Designed to mount videowalls, the BT8371 is a mobile mounting solution for video wall screens and is available for screens from 32" to 70" screens. As part of B-Tech's dynamic System X range, this contemporary mounting solution is lightweight yet incredibly strong, has a high-end aesthetic quality and comes with important time saving features such as tool-less micro-adjustment and a universal screen position spacer to speed up the installation process. The BT8371 is available as a 2x2 and 3x3 package or alternatively, visit www.btechavmounts.com/systemx-configurator to specify a custom configuration that suits your needs.





BT8370-2x2 - System X Universal Video Wall Stand for 2x2 Video Walls



Configure a BT8371
  • Configurable mounting solution available to order to your requirements, from stock -
    see configurator info
  • Universal design suitable for all videowall screens
  • Suitable for landscape or portrait mounting
  • Tool-less micro-adjustments for seamless screen alignment
  • Integrated cable management
  • Includes adjustable levelling feet
  • Includes non-marking 4" locking/braked castors
  • Collar compatible accessories such as shelves can be fitted directly to the extrusion
  • Includes re-usable screen position spacer to aid installation of screens
  • Safety screws help prevent unauthorised removal of screens
  • All mounting hardware included

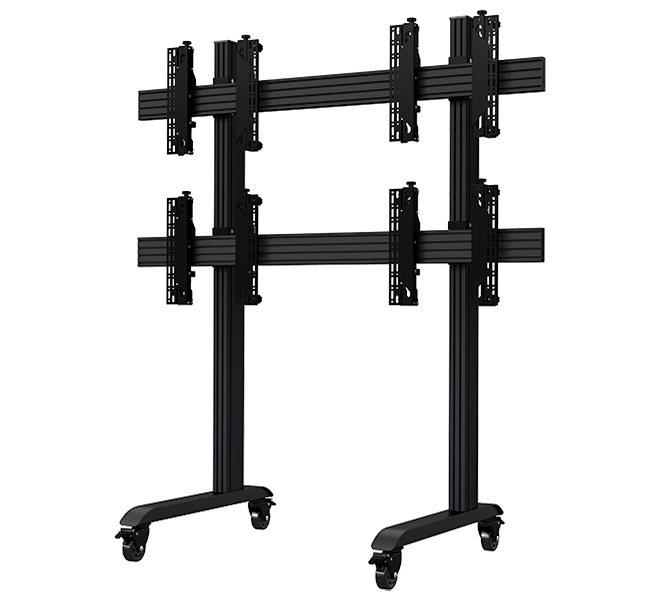

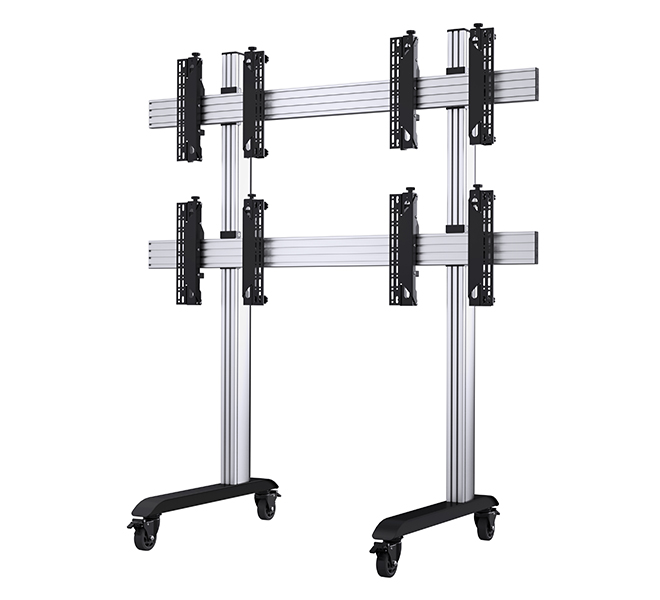

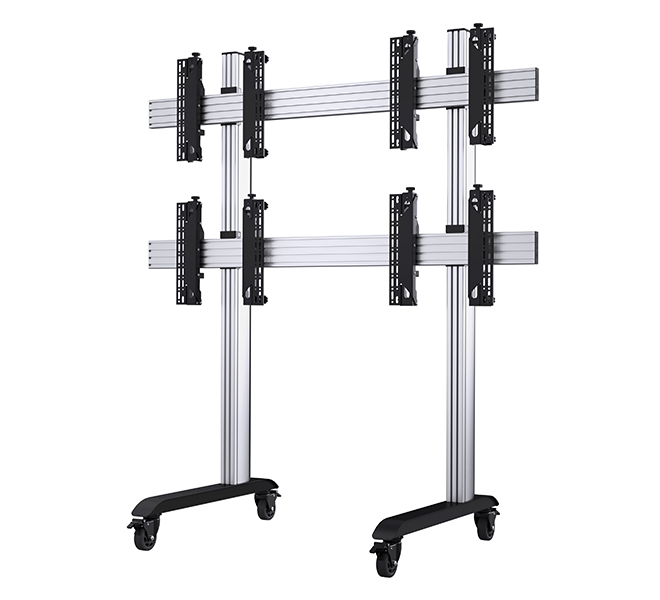

BT8371-2x2

System X
Universal Mobile Videowall Stand
for 2x2 Videowalls
(for 46" to 60" screens)

Off-the-shelf kit designed to mount 46" (117cm) -
60" (152cm) screens in a 2x2 configuration

  • Recommended screen size: 46" (117cm)-
    60" (152cm)
  • Max load: 50kg (110lbs) (per screen)
  • VESA® and non-VESA fixings: up to 600mmx400mm
  • Dimensions:
    W: 2005mm (79") D: 950mm (37.4")
    H: 1993mm (78.5") up to 2189mm (86.2")
  • Colour (base & interface arms): Black
  • Colour (columns & rails): Black or Silver

    Full product specification sheet available on the Downloads tab

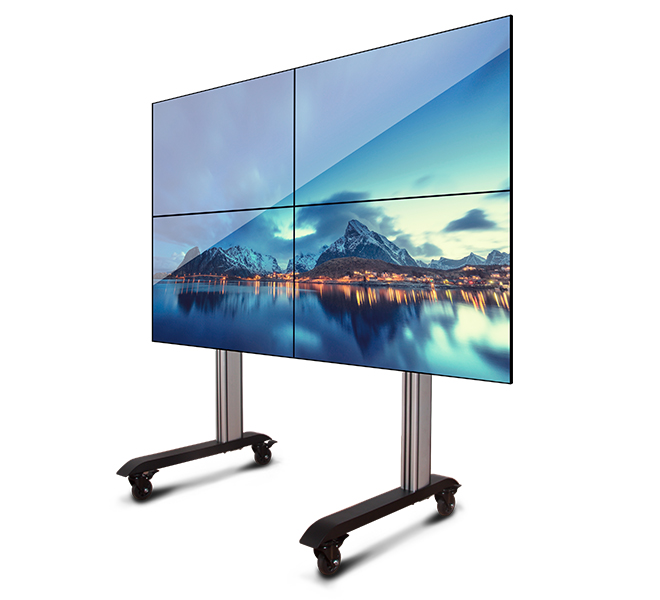

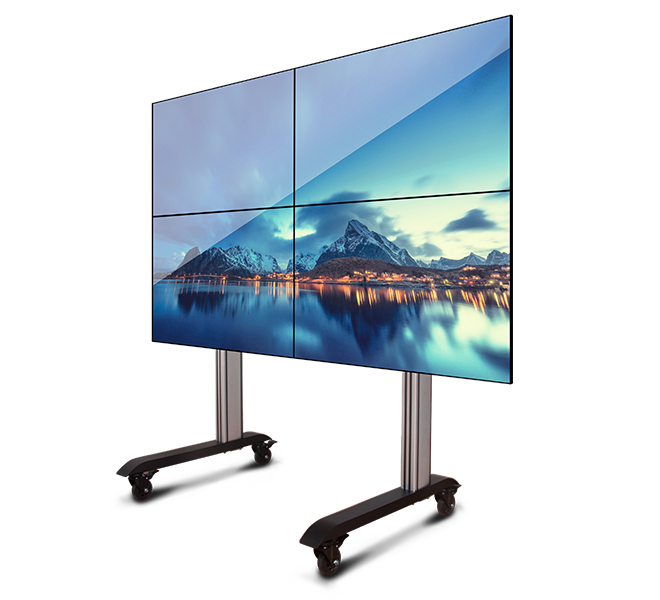

BT8371-2x2 - System X Universal Mobile Video Wall Stand for 2x2 Video Walls

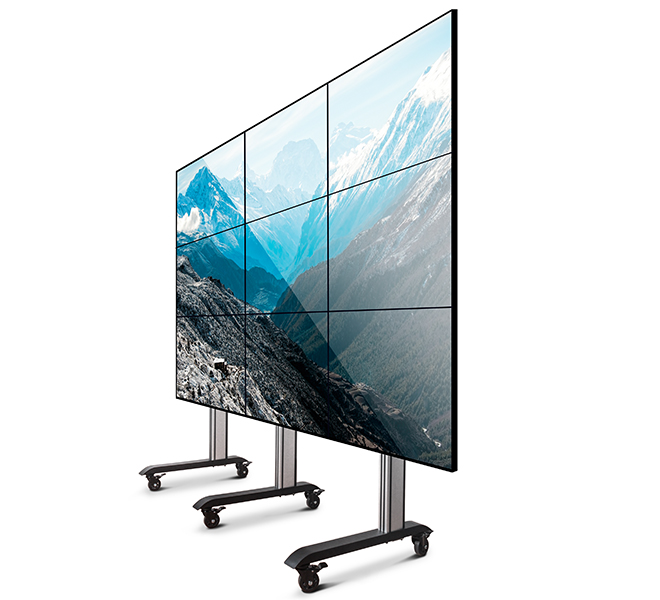

BT8371-3x3

System X
Universal Mobile Videowall Stand
for 3x3 Videowalls
(for 46" to 55" screens)

Off-the-shelf kit designed to mount 46" (117cm) - 55" (140cm) screens in a 3x3 configuration

  • Recommended screen size: 46" (117cm) - 55" (140cm)
  • Max load: 50kg (110lbs) (per screen)
  • VESA® and non-VESA fixings: up to 600mmx400mm
  • Dimensions:
    W: 3005mm (118.3") D: 950mm (37.4")
    H: 2593mm (102") up to 2794mm (110")
  • Colour (base & interface arms): Black
  • Colour (columns & rails): Black or Silver

    Full product specification sheet available on the Downloads tab

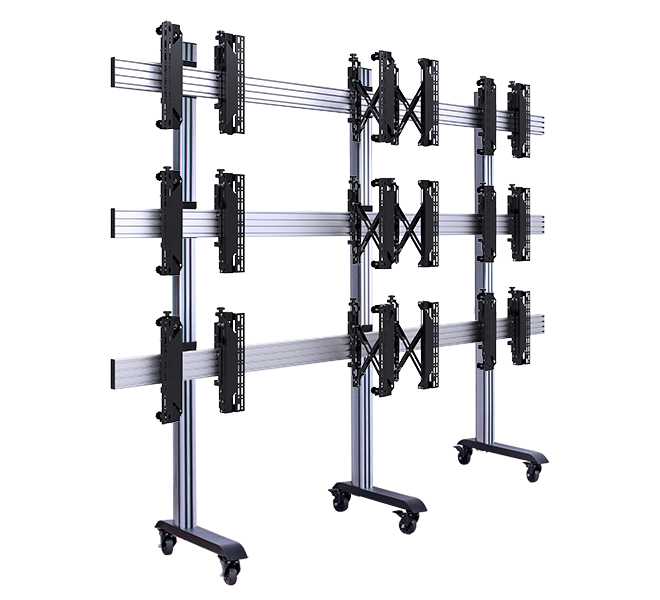

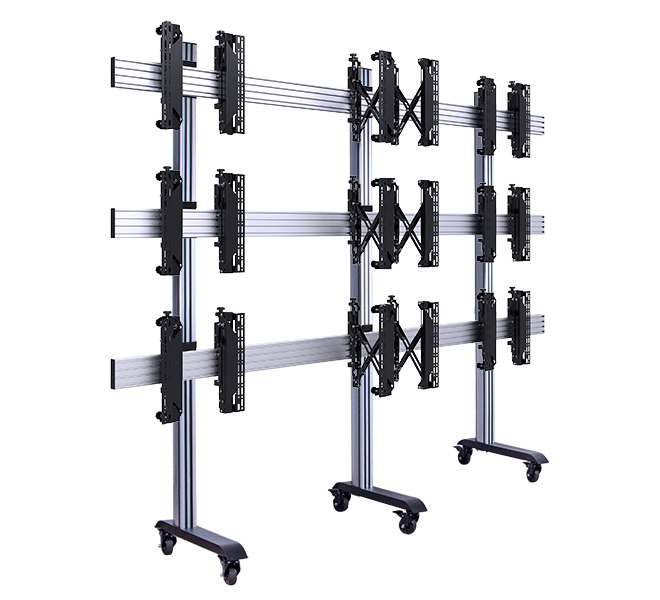

BT8371-3x3 - System X Universal Mobile Videowall Stand for 3x3 Video Walls

BT8371-3x3-60

System X
Universal Mobile Videowall Stand
for 3x3 Videowalls
(for 60" screens)

Off-the-shelf kit designed to mount 60" screens in a 3x3 configuration

  • Recommended screen size: 55" (140cm) - 60" (152.4cm)
  • Max load: 50kg (110lbs) (per screen)
  • VESA® and non-VESA fixings: up to 600mmx400mm
  • Dimensions:
    W: 3505mm (138") D: 950mm (37.4")
    H: 2593mm (102") up to 2794mm (110")
  • Colour (base & interface arms): Black
  • Colour (columsn & rails): Black or Silver

    Full product specification sheet available on the Downloads tab
BT8371-3x3-60 - System X Universal Mobile Videowall Stand for 3x3 Videowalls
BT8371-2x2 - System X Universal Mobile Videowall Stand for 2x2 Video Walls BT8371-2x2 - System X Universal Mobile Video Wall Stand for 2x2 Video Walls BT8371-3x3 - System X Universal Mobile Videowall Stand for 3x3 Videowalls BT8371-3x3 - System X Universal Mobile Video Wall Stand for 3x3 Video Walls

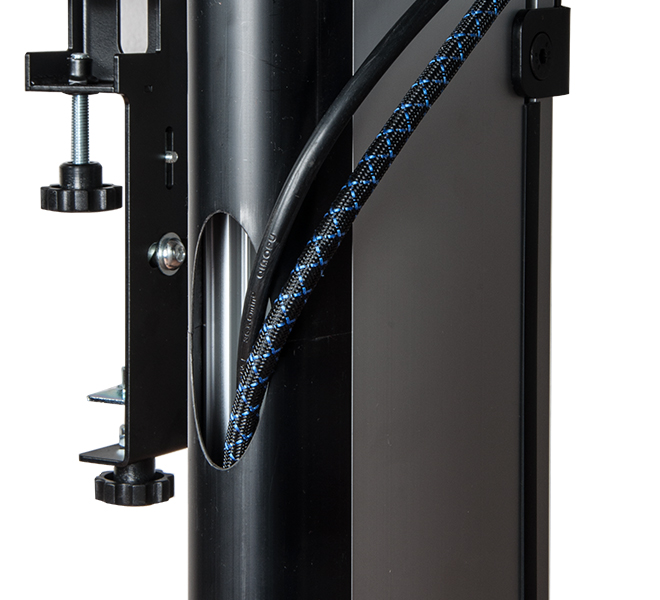

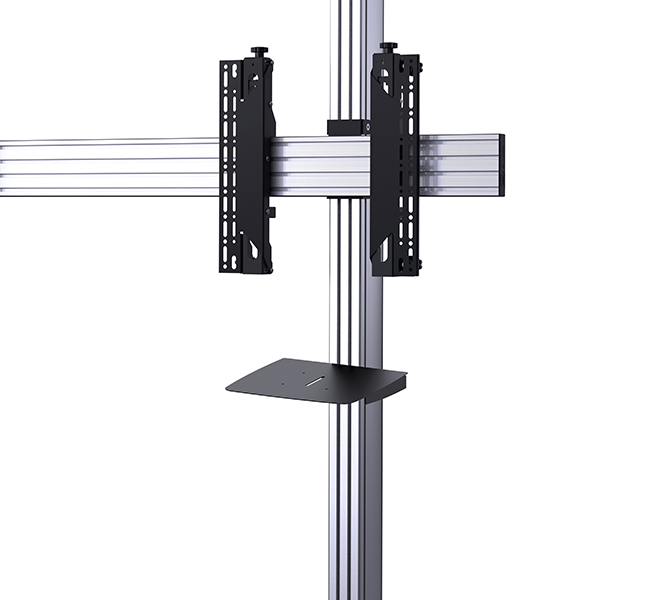

BT8371-2X2 Also available with pop-out interface arms BT8371-2X2 - Accessory Shelf BT8371 - Cable management hides untidy cables and adds to the stylish finish

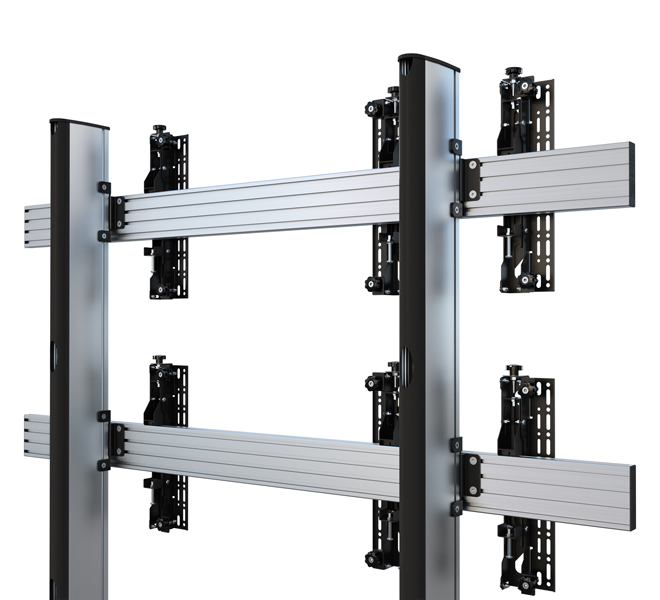

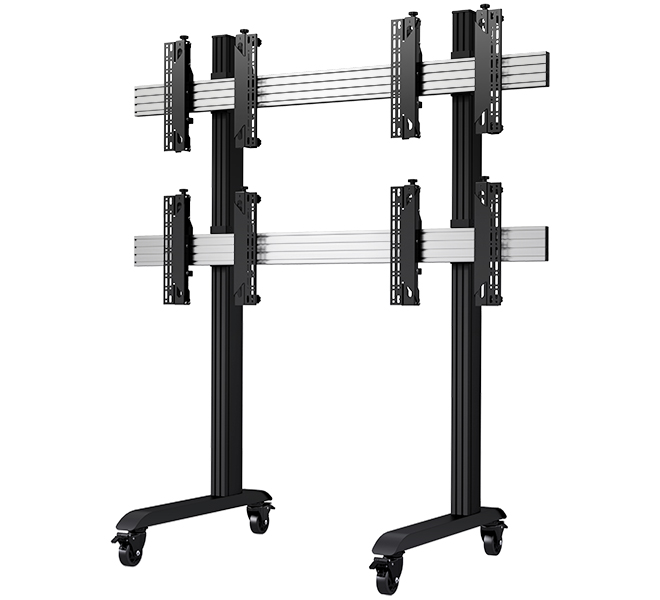

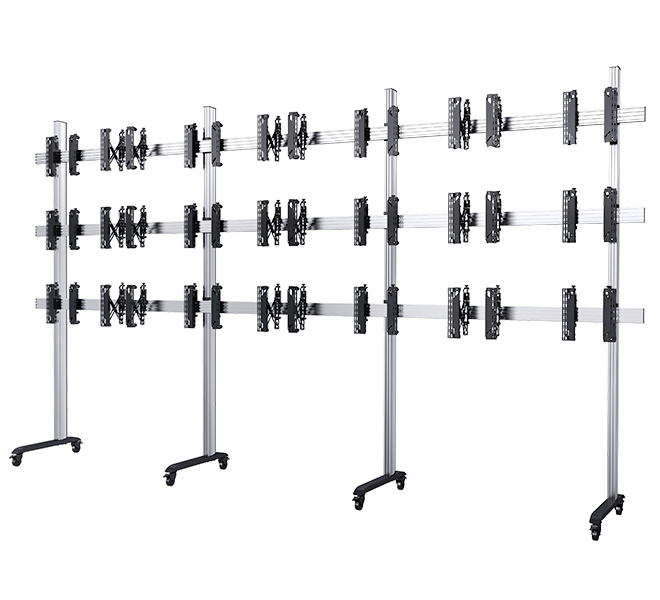

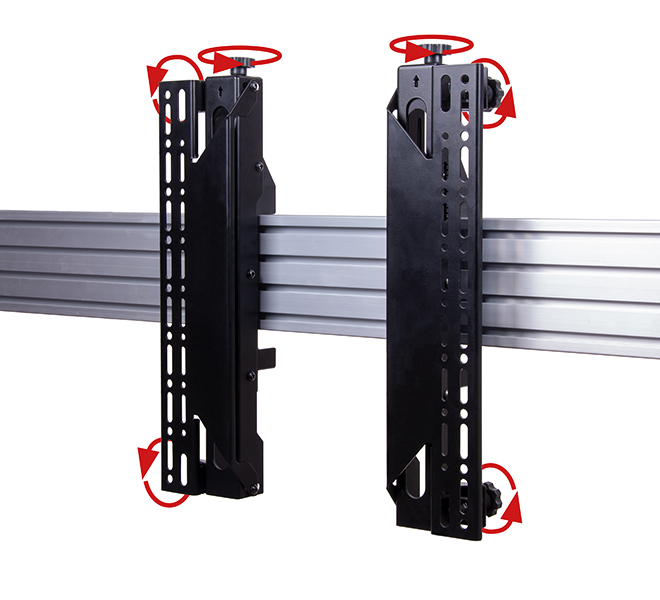

Tool-less 8-point Micro-adjustment Colour option (Silver/Black) Colour option (Black) Online configuration tool to specify alternative configurations, in both landscape and portrait orientations

Installation Overview Videos



Assembly Leaflets

BT8371 Installation Guide (PDF)



Specification Sheets

BT8371 Specification Sheet - English (PDF)

BT8371-2X2 Specification Sheet (PDF)

BT8371-3X3 Specification Sheet (PDF)

BT8371-3X3-60 Specification Sheet (PDF)

BT8371 Fiche de Spécifications - Français (PDF)

BT8371 Karta Specyfikacji - Polskie (PDF)

BT8371 Specificatieblad - Nederlands (PDF)

BT8371 Hoja de especificación - Español (PDF)

BT8371 Spezifikationsblatt - Deutsch (PDF)

BT8371-2X2 US Specification Sheet (PDF - Imperial Units)

BT8371-3X3 US Specification Sheet (PDF - Imperial Units)

BT8371-3X3-60 US Specification Sheet (PDF - Imperial Units)

Trang thông số kỹ thuật - Tiếng Việt (PDF)



Publications

Introduction to System X (PDF)

Introduction to System X - Español (PDF)



Technical Drawings

BT8371-2X2 Technical Drawing (PDF)

BT8371-3X3 Technical Drawing (PDF)

BT8371-3X3 Technical Drawing (PDF)
