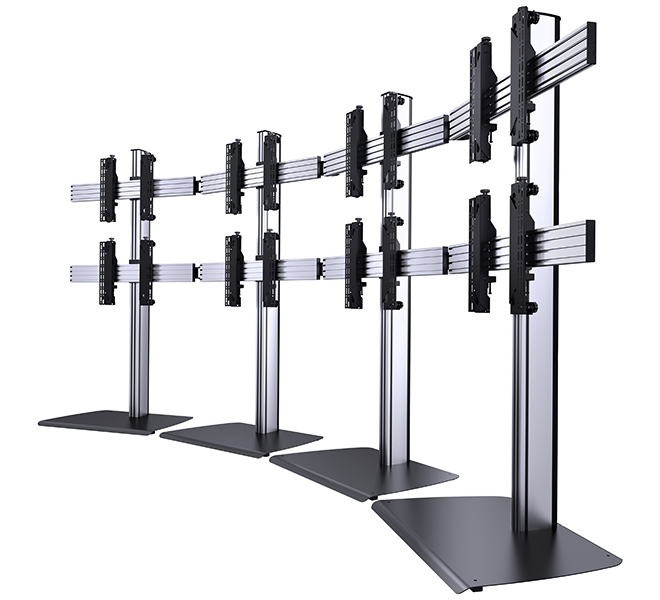

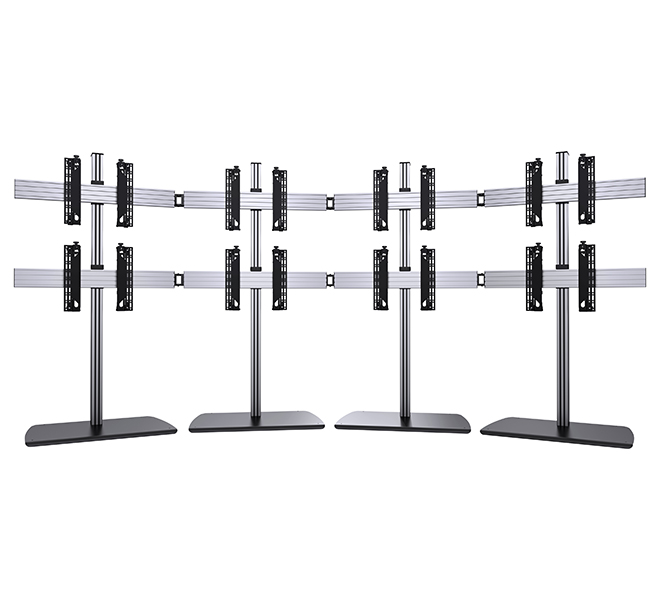

Curved Videowall Stand

BT8376

Available in multiple configurations




Designed to create curved videowalls, the BT8376 is a freestanding mounting solution with a universal design suitable for all videowall screens from 42" to 70". As part of B-Tech's dynamic System X range, this contemporary mounting solution is lightweight yet incredibly strong, has a high-end aesthetic quality and comes with important time saving features such as integrated angle guides, tool-less 8 point micro-adjustment and a universal screen position spacer to speed up the installation process.


  BT8376
  • Universal design suitable for all videowall screens
  • High-end aesthetic quality
  • Easy to use angle adjustment - set before or after installation
  • Integrated angle guides eliminate the need to measure required angles
  • Integrated rail mounting guides ensure the join position is consistent throughout the installation without the need to measure
  • Tool-less micro-adjustments at 8 points for seamless screen alignment

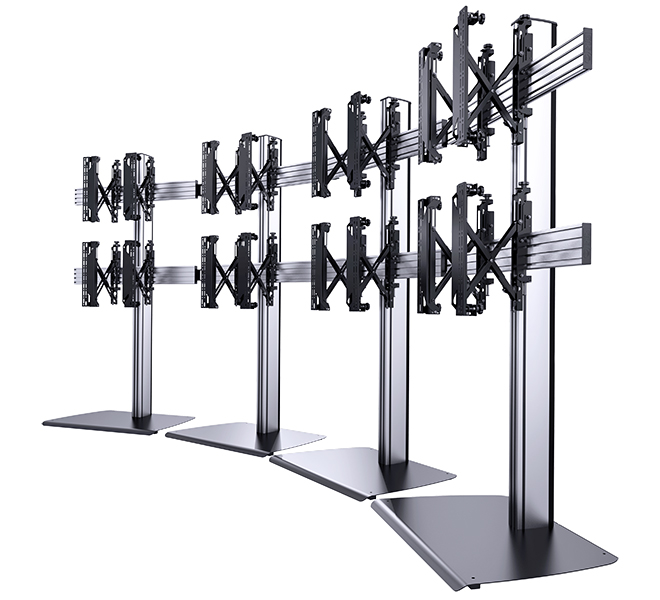

  • Also available with pop-out interface arms
  • Heavy duty freestanding base allows columns to be individually assembled and positioned, for an easy installation
  • Supplied with adjustable levelling feet to accommodate uneven floor surfaces

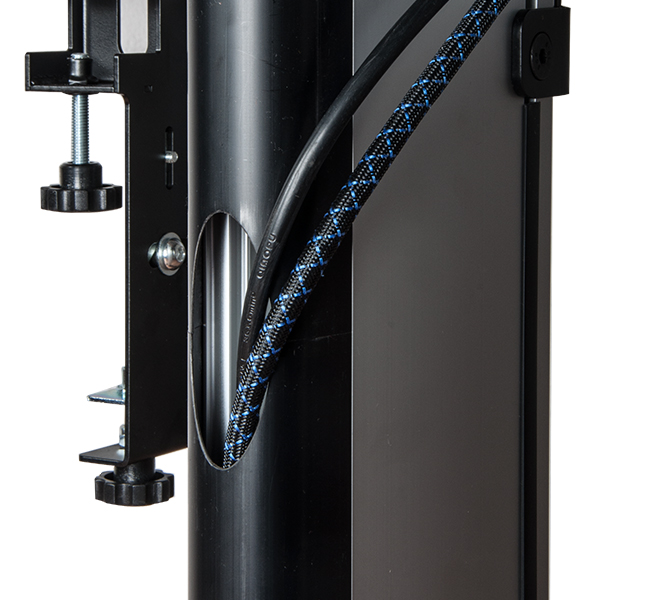

  • Integrated cable management
  • Universal screen position spacer to speed up the installation process
  • Safety screws help prevent unauthorised removal of screens
  • Simple installation with all mounting hardware included
  • For screen sizes: 42"-70"
  • Max load: 50kg per screen
  • Angle adjustment range: +/- 45°
  • VESA® & non-VESA fxings: 200 x 200 up to 600 x 400
  • Colour (base & VESA arms): Black

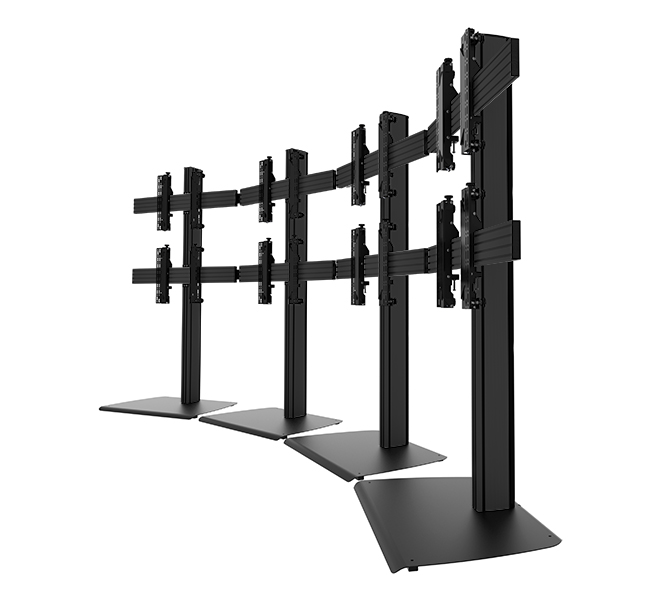

  • Colour (verticals): Black or Silver
  • Colour (horizontals): Silver
BT8376 - Curved Videowall Stand BT8376 - Curved Videowall Stand BT8376 - Curved Videowall Stand 8 point tool-less micro-adjustment for seamless screen alignment

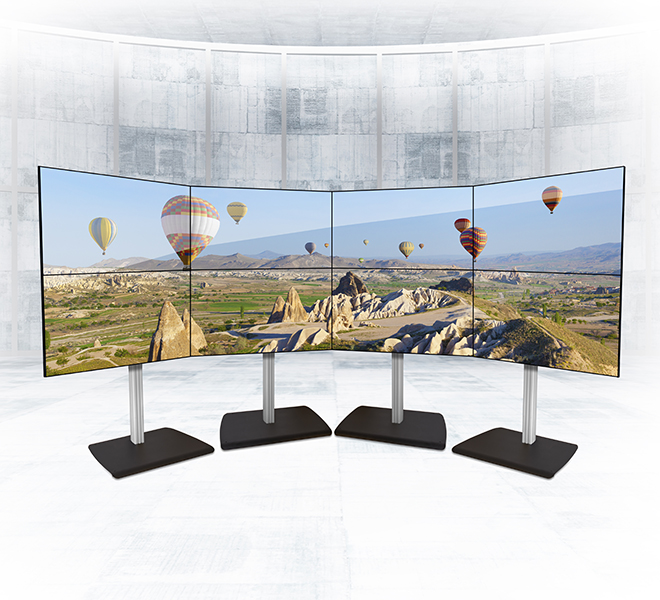

Angle up to +/-45° to create a concave or convex curved videowall Heavy duty freestanding base allows columns to be individually assembled and positioned, for an easy installation Integrated cable management covers hide untidy cables and add to the stylish finish BT8376 - Curved Videowall Stand

Product Specification Sheet (PDF)

Product Installation Guide (PDF)
