Universal Curved Videowall Stand

BT8373

Available in multiple configurations




Designed to create curved videowalls, the BT8373 is a freestanding mounting solution with a universal design suitable for all videowall screens from 42" to 70". As part of B-Tech's dynamic System X range, this contemporary mounting solution is lightweight yet incredibly strong, has a high-end aesthetic quality and comes with important time saving features such as integrated angle guides, tool-less 8 point micro-adjustment and a universal screen position spacer to speed up the installation process.


  BT8373 - Curved Videowall Stand
  • Configurable mounting solution available to order to your requirements, from stock -
    see configurator info
  • Universal design suitable for all videowall screens
  • High-end aesthetic quality
  • Easy to use angle adjustment - set before or after installation

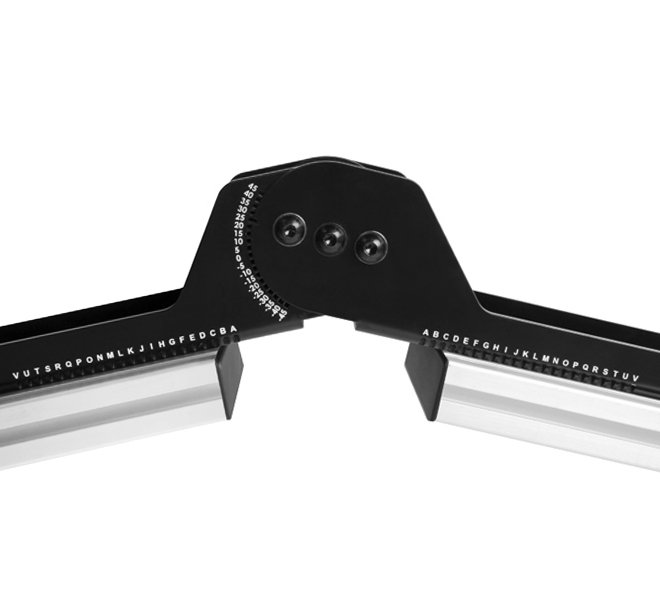

  • Integrated angle guides eliminate the need to measure required angles
  • Integrated rail mounting guides ensure the join position is consistent throughout
    the installation without the need to measure
  • Tool-less micro-adjustments for seamless screen alignment
  • Also available with pop-out interface arms
  • Heavy duty freestanding base allows columns to be individually assembled and
    positioned, for an easy installation
  • Supplied with adjustable levelling feet to accommodate uneven floor surfaces

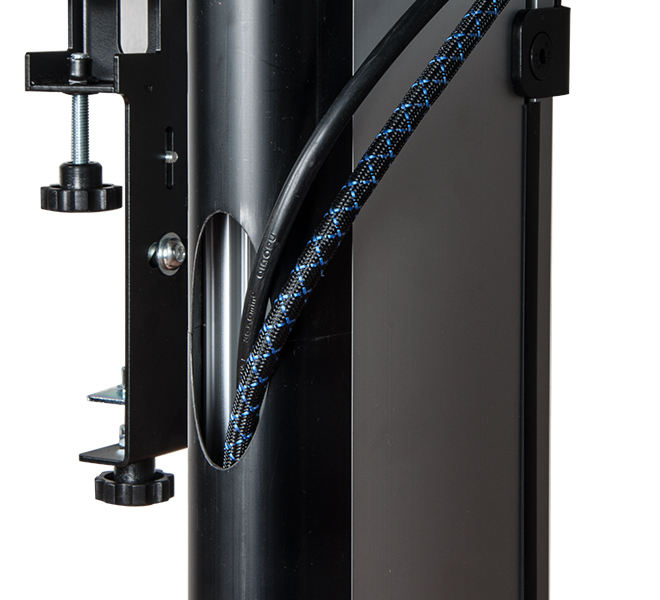

  • Integrated cable management
  • Universal screen position spacer to speed up the installation process
  • Safety screws help prevent unauthorised removal of screens
  • Simple installation with all mounting hardware included
  • For screen sizes: 39" (99cm) -70" (177.8cm)
  • Max load: 50kg (110lbs) per screen
  • Angle adjustment range: +/- 45°
  • VESA® & non-VESA fxings: up to 900mm*
  • Colour (base & interface arms): Black
  • Colour (columns): Black or Silver

    *Refers to maximum vertical fixing dimension for a typical configuration. Correctly sized interface
    arms and adaptors will be supplied as necessary to suit the mounting pattern you require.
BT8373 - Curved Videowall Stand BT8373 - Curved Videowall Stand BT8375 - Bolt Down Curved Videowall Stand Angle up to +/-45° to create a concave or convex curved videowall
8 point tool-less micro-adjustment for seamless screen alignment Also available with pop-out interface arms Supplied with adjustable levelling feet to accommodate uneven floor surfaces Integrated cable management covers hide untidy cables and add to the stylish finish
BT8373 - Curved Videowall Stand (with BT8390-VESA400MAP) BT8373 - Curved Videowall Stand

Product Overview Video

Specification Sheet

Specification Sheet (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawings

Technical Drawing (PDF)

You must log in to view this content
