System X™ Wall Tie-Back

BT8380-WTB

 For extra stability




The BT8380-WTB is a tie-back system that provides added stability to B-Tech installations. Compatible with System X vertical columns, the BT8350 range of videowall stands and System 2 poles, the BT8380-WTB works by securing the installation to an adjoining wall. A tie-back may be required for extra tall installations or set-ups using small floor bases such as the BT8380-FFB or the BT8380-SHB. The BT8380-WTB features an adjustable extension which allows installations to be mounted from 214mm up to 707mm from the wall.






  • For securing a BT8380 column to a wall
  • Can also be used on System 2 and BT8350 Range
  • Wall tie-back for System X stands when used with smaller bases or greater heights
  • Max distance of column from wall: 707mm
  • Adjustable extension: 214 - 707mm
  • Wall tie-backs supplied per pack: 1
  • Colour: Black

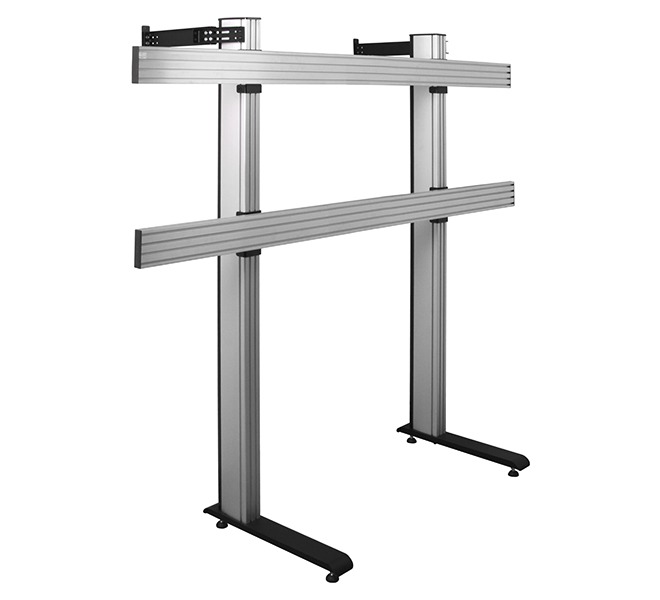

Adjustable extension allows installations to be mounted from 214mm up to 707mm from the wall Adjustable extension allows installations to be mounted from 214mm up to 707mm from the wall Adjustable extension allows installations to be mounted from 214mm up to 707mm from the wall Secures System X stands that use small bases such as the BT8380-SHB to an adjoining wall

Specification Sheet

Specification Sheet (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawings

Technical Drawing (PDF)

Technical Drawing (DXF)
