Floor-To-Ceiling Mounting Kit

BT8385-FTC

 Mode-AL Component Range




BT8385-FTC is a floor-to-ceiling mounting kit that allows Mode- AL installations the capability of being mounting from the floor to the ceiling with the additional use of a B-Tech 50mm diameter pole and ceiling mount. The mounting kit is easily installed by removing the BT8385 column’s back plate and fixing onto the slots within the column. The column should be fixed to the floor using a BT8385-BDB Bolt Down Base and secured to the ceiling using a suitable ceiling mount, such as BT7822. Extension bars are included so vertical columns can be joined together if required.






  • For use with BT8385 Vertical Column, BT7850 Pole,
    BT7822 Ceiling Mount & BT8385-BDB Bolt Down Base
  • Fitted easily to the inside of a BT8385 Vertical Column
  • Supplied with Extension Bars for joining Vertical Columns together
    for extended heights if required
  • End cap supplied for a smart finish
  • Integrated cable management allows cables to run through the
    end cap and through the centre of the pole and column
  • Can be used to create large scale videowall installations - ideal for
    applications such as control rooms
  • Max load 70kg
  • Colour: Black

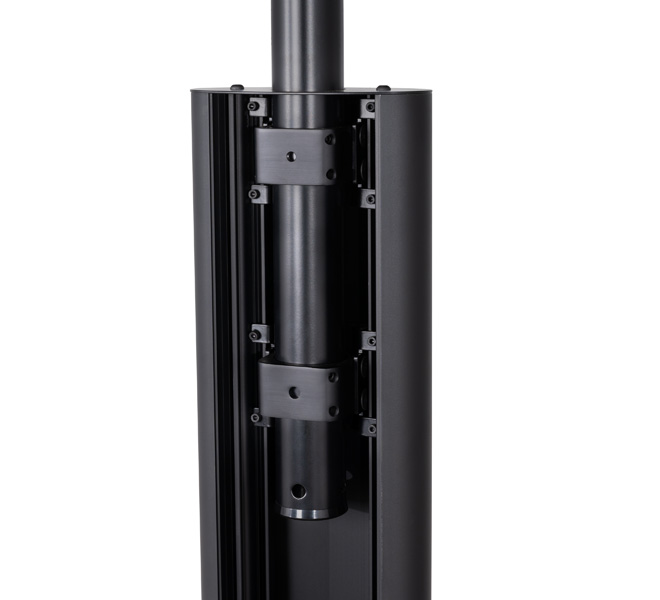

BT8385-FTC Floor-To-Ceiling Mounting Kit Fitted easily to the inside of a BT8385 Vertical Column

Supplied with Extension Bars for joining Vertical Columns together for extended heights if required

Requires the use of a BT8385 Column, BT7850 pole, BT7822 Ceiling Mount & BT8385-BDB Bolt Down Base
