System X™ Universal Interface Arms

BT8390-VESA400F

For Small / Medium Screens




Ideal for single row, multi-screen installations, these interface arms are designed to mount small to medium sized screens in a fixed position along System X horizontal mounting rails. The universal design is compatible with a variety of different screens and allows them to be mounted in either landscape or portrait orientations. Levelling screws on each interface arm provides post installation height adjustment and a mounted depth of 48mm from the wall allows easy access for cables and connectors.






  • Ideal for menu boards and other multi-screen installations
  • Universal design compatible with most screens
  • Suitable for landscape or portrait mounting
  • Lateral adjustment - position arms anywhere along the length of the rail
  • Includes levelling screws to adjust the screen height
  • Safety screws help prevent unauthorised removal of screens
  • Simple ‘hook-on’ installation
  • Recommended screen size: 39" - 70"
  • Max load: 70kg
  • VESA® & non-VESA fixings: up to 400mm* (vertical dimension)
  • Depth (typical wall mounted install): 48mm

    *The VESA specification of the BT8390-VESA400F refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary.

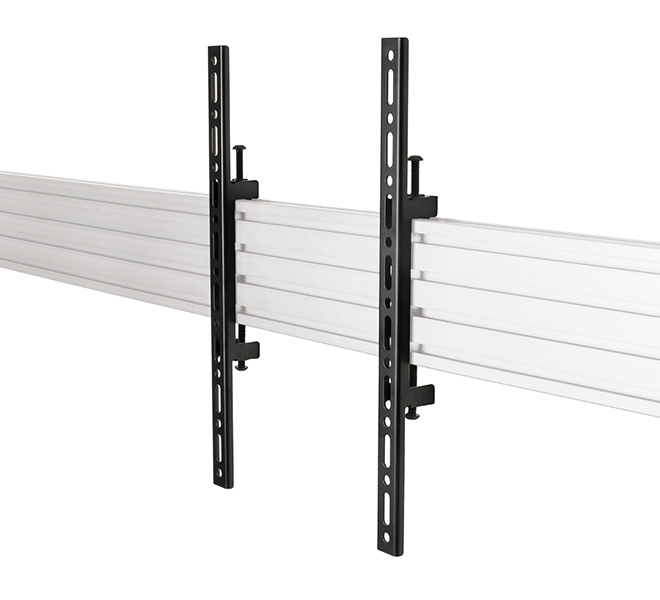

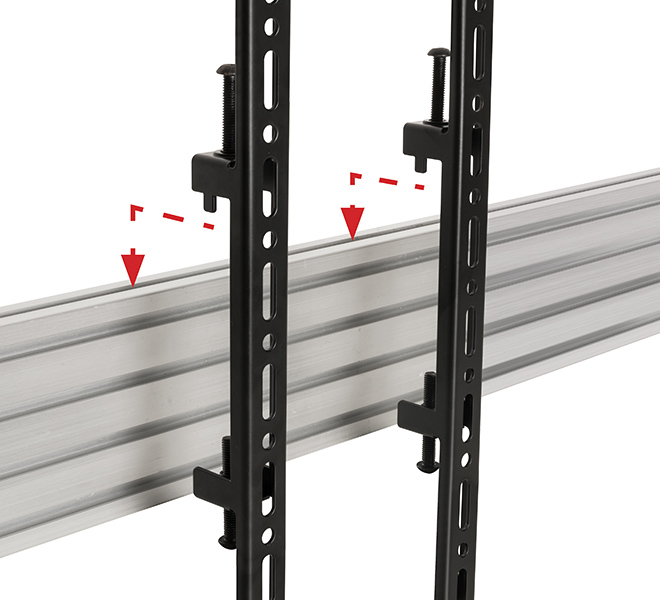

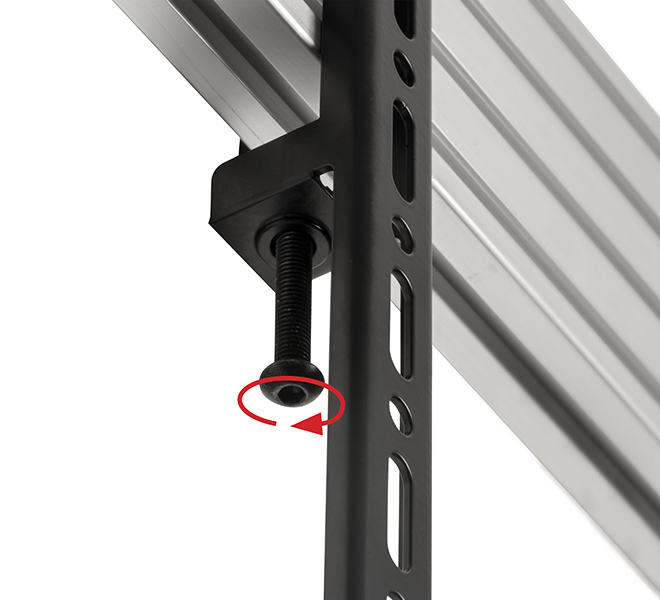

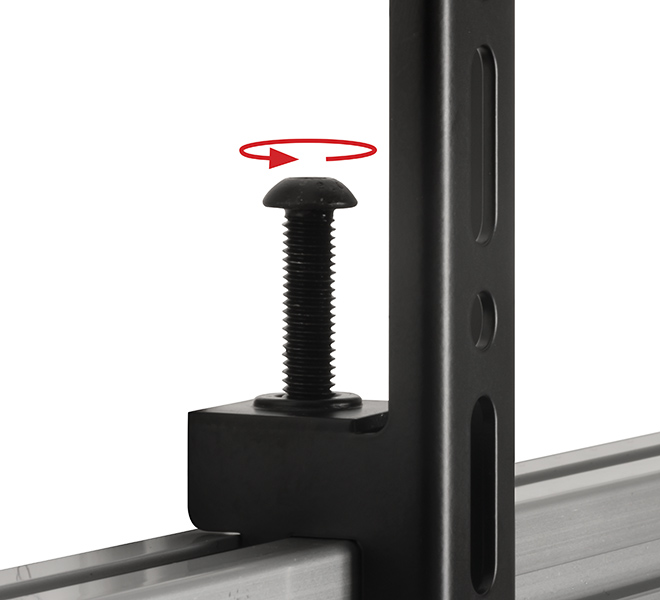

BT8390-VESA400F - System X™ Universal Interface Arms Arms feature levelling screws to adjust the screen height Safety screws help prevent unauthorised removal of screens Simple 'hook-on' installation

Specification Sheet (PDF)

Parts List (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)
