System X™ Universal Interface Arms With Tilt

BT8390-VESA400T

For Medium / Large Screens

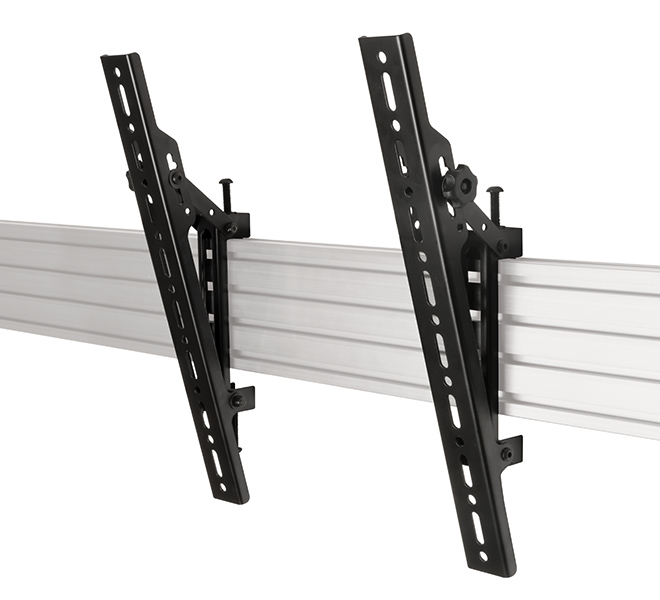

Ideal for single row, multi-screen installations, these interface arms are designed to mount small to medium sized screens in a tilted position along System X horizontal mounting rails. The universal design is compatible with a variety of different screens and allows them to be mounted in either landscape or portrait orientations. Levelling screws on each interface arm provide post installation height adjustment and thumbwheels allow easy tool-less adjustment of the tilt angle up to 20°.






  • Ideal for menu boards and other multi-screen installations
  • Universal design compatible with most screens
  • Suitable for landscape or portrait mounting
  • Tool-less thumbwheels for easy adjustment of the tilt angle
  • Lateral adjustment - position arms anywhere along the length of the rail
  • Includes levelling screws to adjust the screen height
  • Safety screws help prevent unauthorised removal of screens
  • Simple ‘hook-on’ installation
  • Recommended screen size: 39" - 70"
  • Max load: 70kg
  • VESA® & non-VESA fixings: up to 400mm* (vertical dimension)
  • Tilt adjustment: up to +20° (in increments of 5°)

    *The VESA specification of the BT8390-VESA400T refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary.

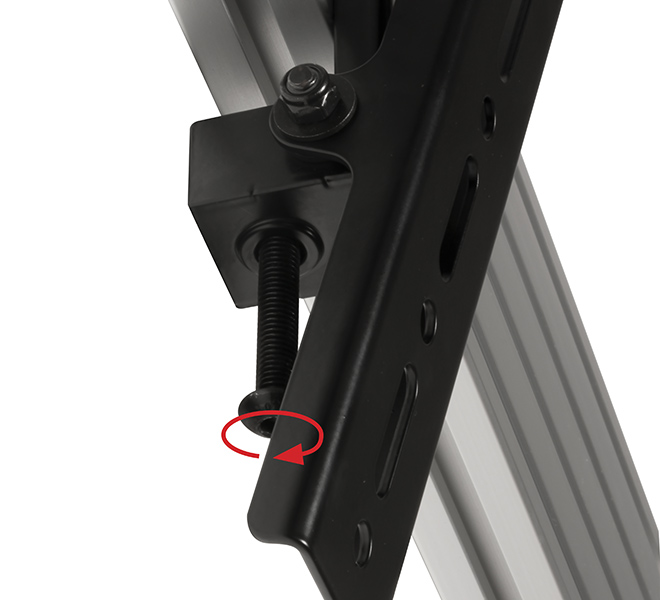

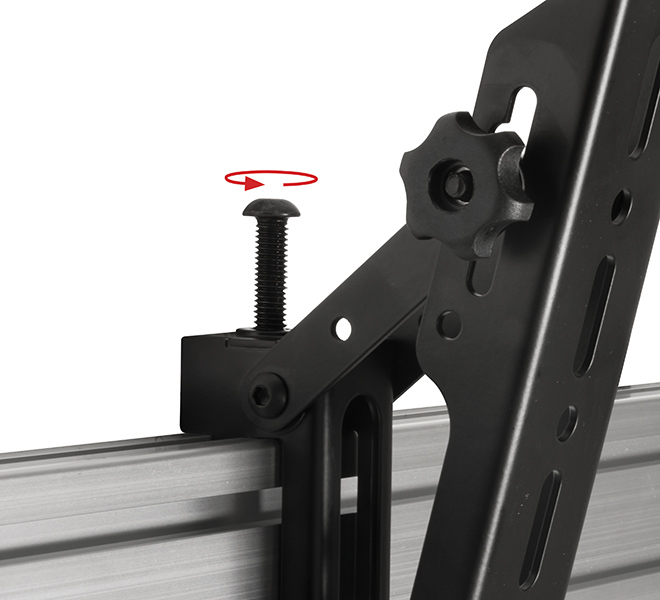

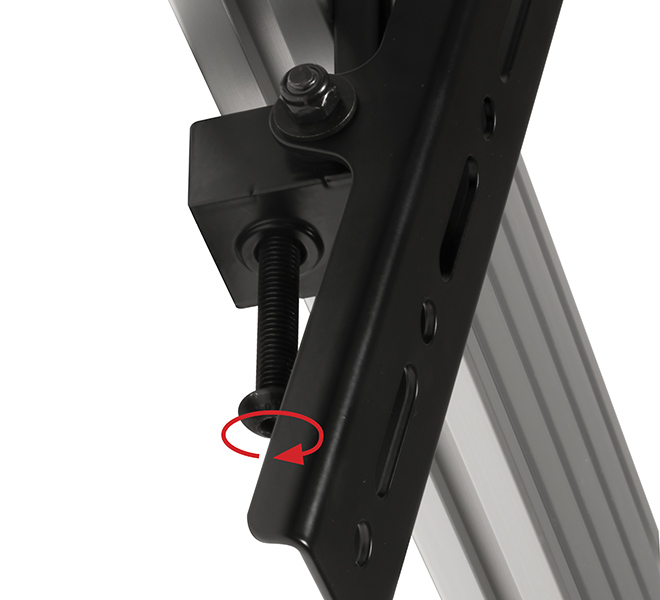

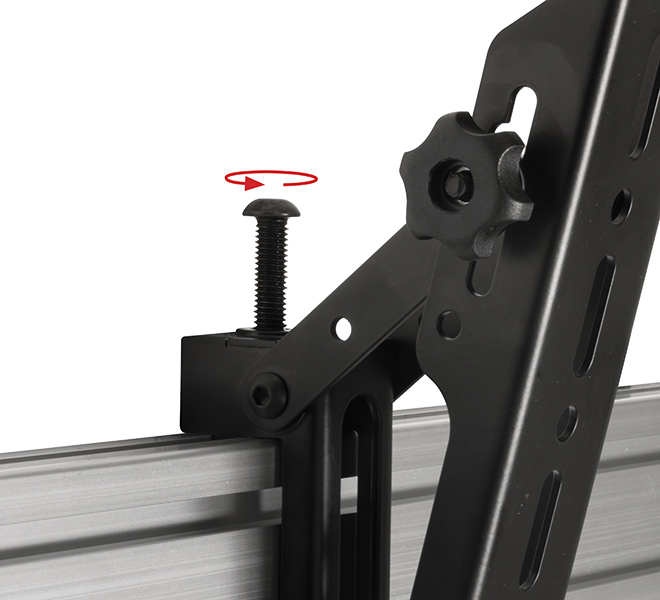

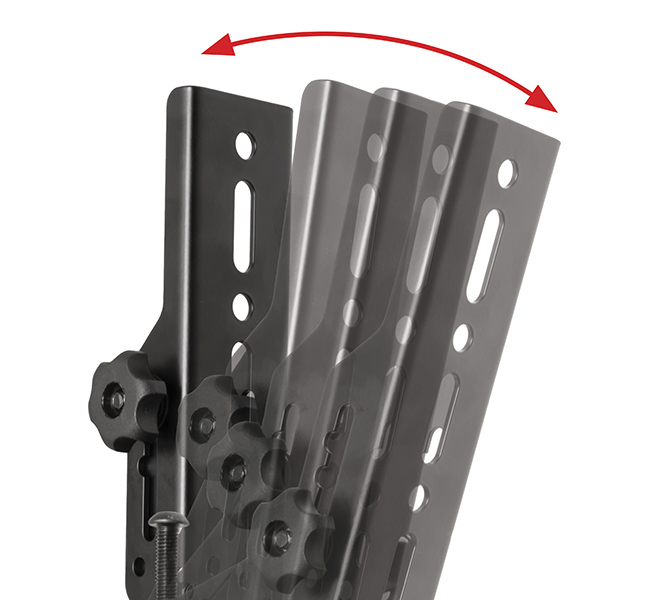

BT8390-VESA400T - System X™ Universal Interface Arms with Tilt Tilt adjustment of up +20° for enhanced overhead visibility Arms feature levelling screws to adjust the screen height Safety screws help prevent unauthorised removal of screens

Specification Sheet (PDF)

Parts List (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)
