Universal Flat Screen Ceiling Mount

BT8424

With Tilt




Designed to ceiling mount screens up to 50kg in either landscape or portrait orientation, the BT8424 is available in a choice of four different drop lengths; 1m, 1.5m, 2m and 3m. The mount uses B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.

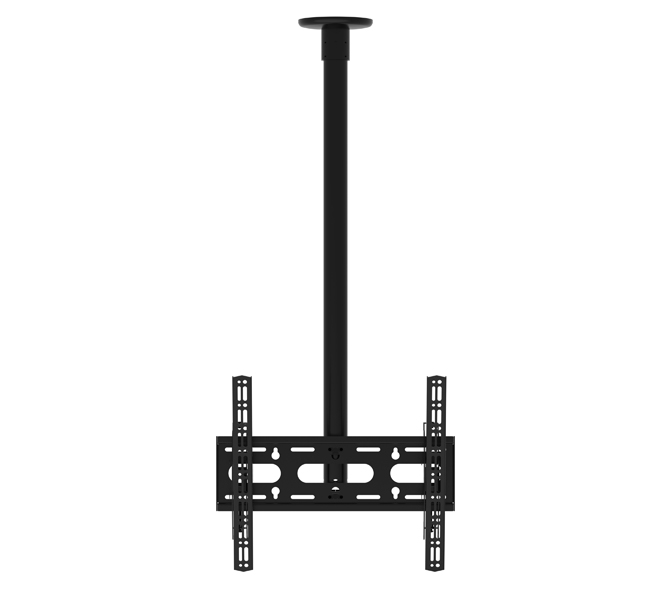

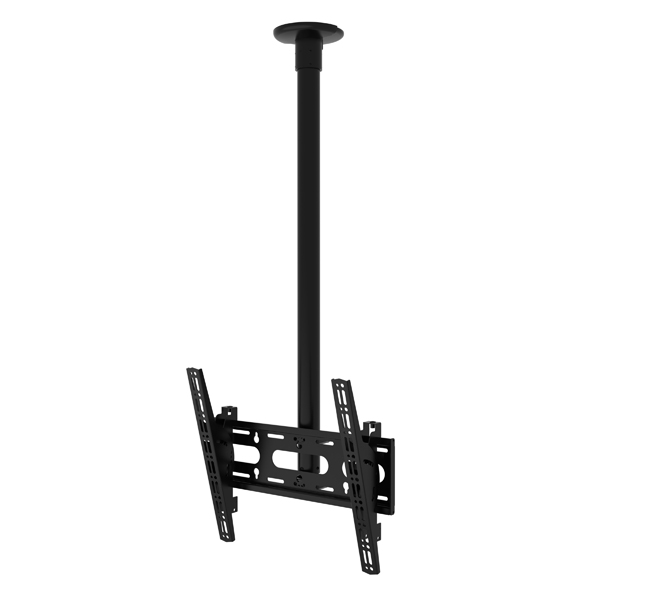

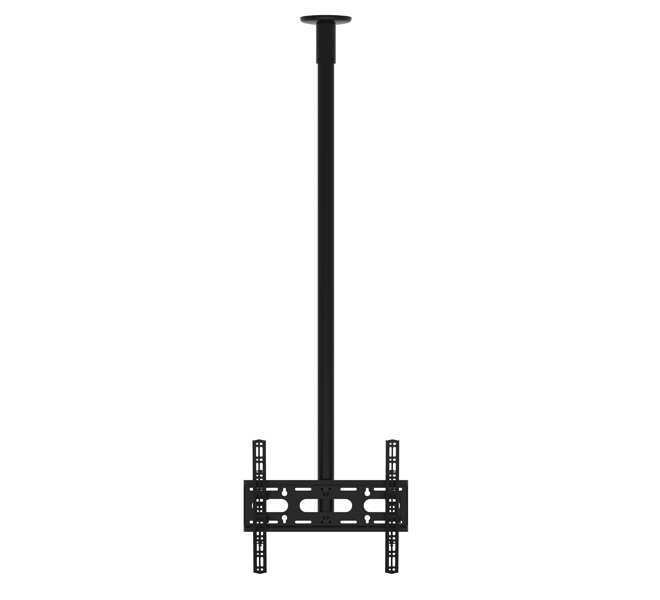

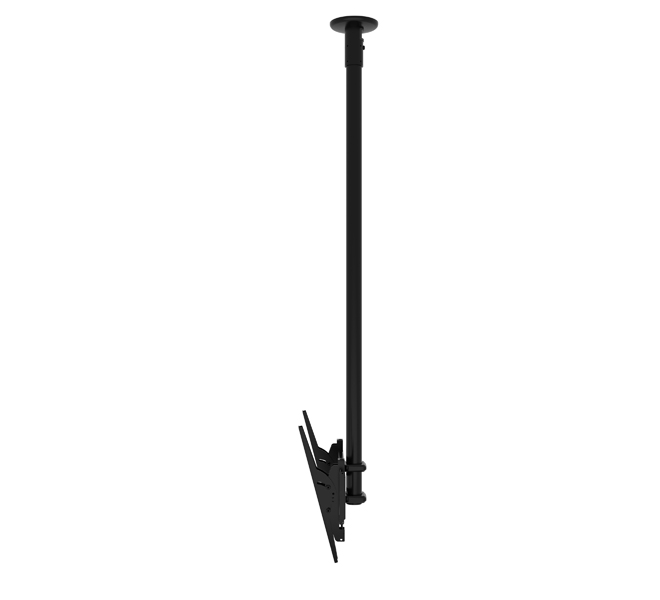

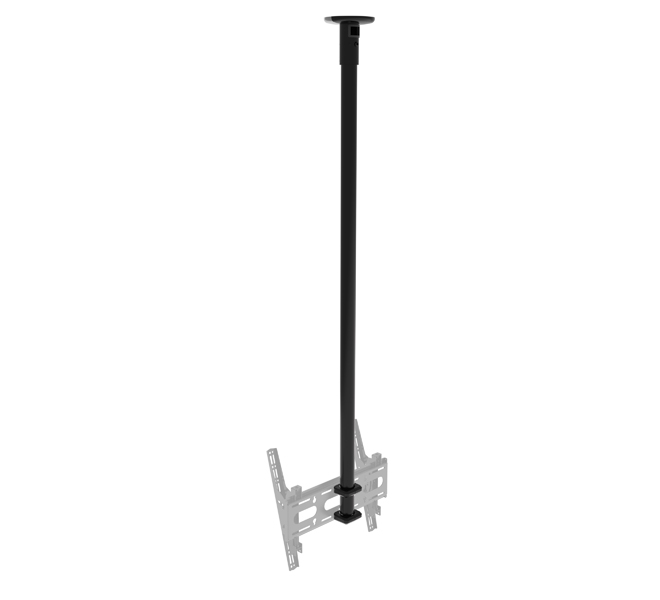

  BT8424 Universal Flat Screen Ceiling Mount with Tilt
  • Unique ‘Torsion-tilt’ mechanism for easy tool-less adjustment
  • Lateral adjustment of screen once mounted
  • Suitable for landscape or portrait mounting
  • Arms feature levelling screws to adjust the screen height
  • Security screws help prevent unauthorised removal of screens
  • Poles are supplied with safety bolt and grub screws for a secure installation
  • Integrated cable management
  • Cover plate included for a smart installation
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recommended screen size: up to 65" (165cm)
  • Max load: 50kg (110lbs)
  • VESA® & non-VESA fixings: up to 468mm x 400mm
  • VESA® compatibility with included adaptors: up to 600mm x 400mm

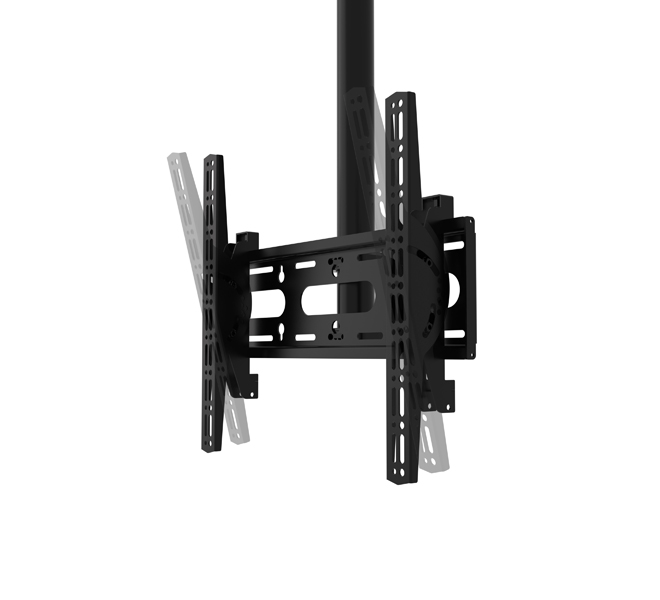

  • Tilt: +/-15°

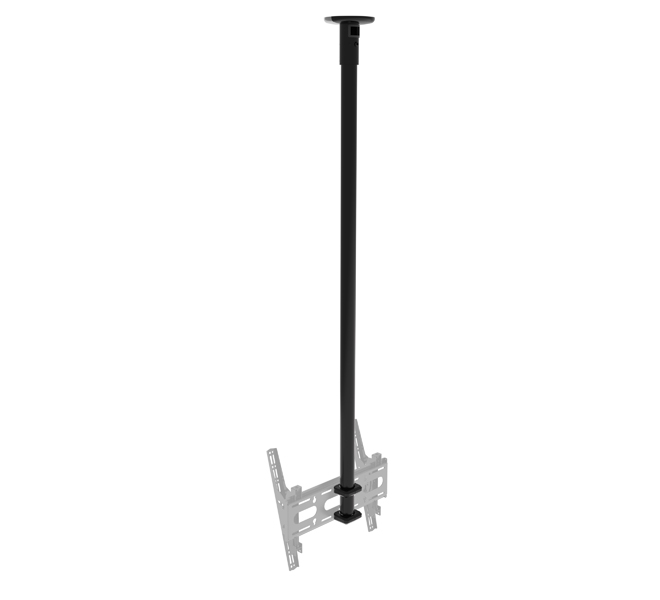

  • Ceiling Drop: 1m, 1.5m, 2m or 3m*

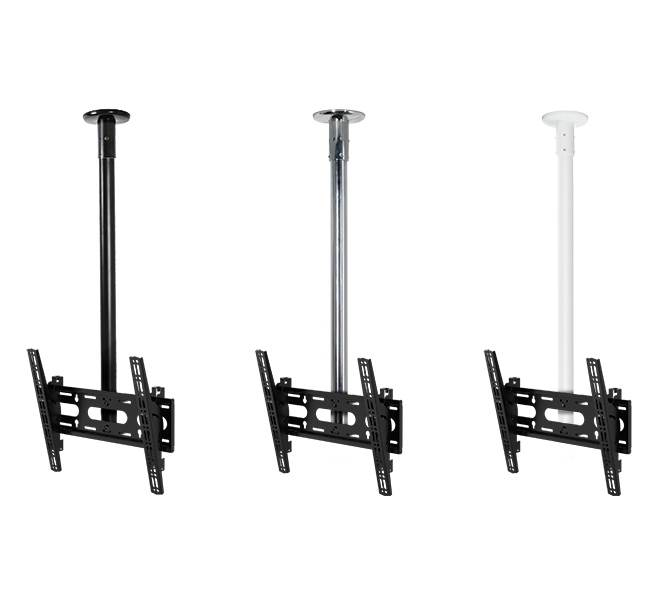

  • Colour option (ceiling plate & Ø50mm (2") pole) Black, White or Chrome

    *From the ceiling to the centre of the mount

BT8424 Universal Flat Screen Ceiling Mount with Tilt bt8424 - Positioning adjustment bt8424 bt8424

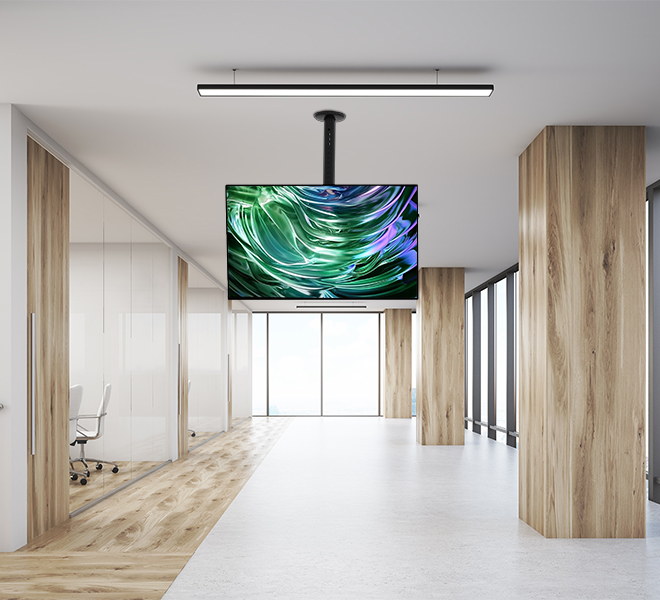

BT8424 - Lifestyle

Specification Sheet

Specification Sheet - English (PDF)

Specification Sheet - US (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)

Technical Drawing (DXF)



Greensheet

BT8424-100 Greensheet (PDF)

BT8424-150 Greensheet (PDF)

BT8424-200 Greensheet (PDF)

BT8424-300 Greensheet (PDF)
