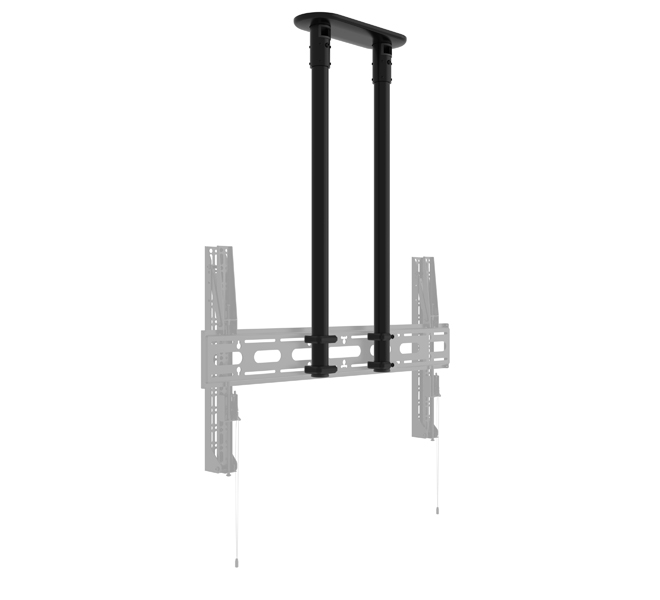

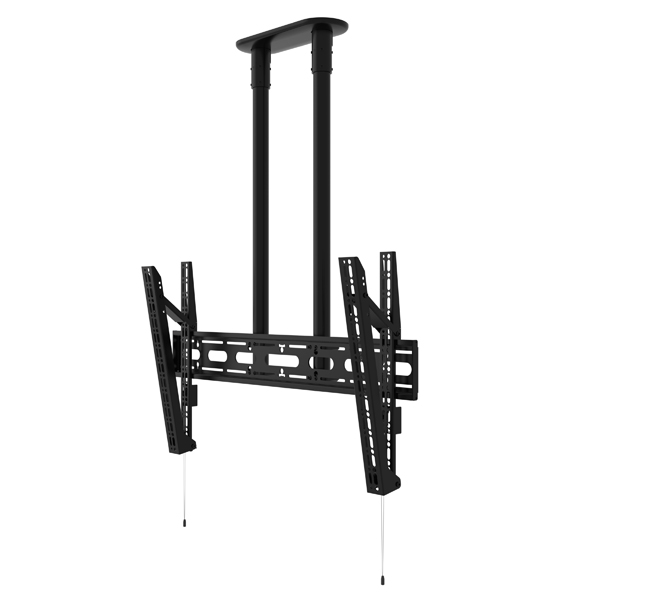

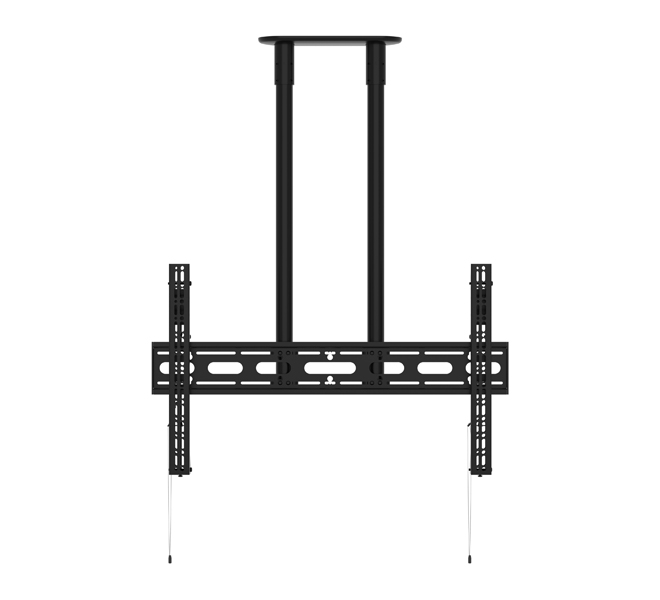

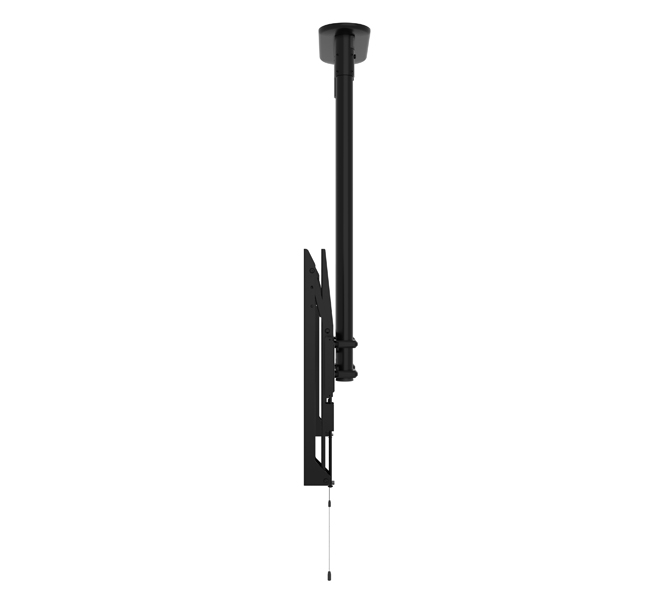

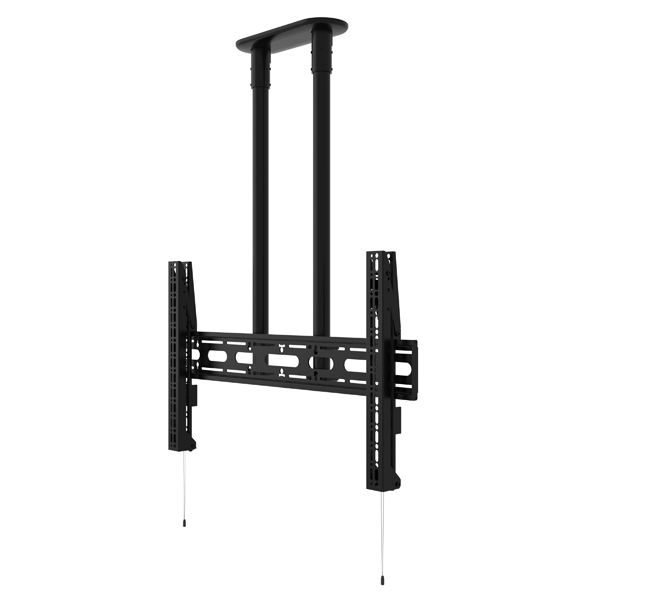

Universal Extra-Large Flat Screen Ceiling Mount with Tilt

BT8449

Four ceiling drop lengths available




Designed to ceiling mount screens over 65", the BT8449 is an extra-large ceiling mount which is available with a choice of four different drop lengths; 1m, 1.5m, 2m and 3m. The twin pole design and heavy duty steel provides strength and rigidity, allowing for a maximum load of up to 80kg. Other features include a choice of 4 tilt positions from 0° up to 15°, post installation screen alignment and height adjustment screws to help level the screen once mounted. Available with a choice of Black, White or Chrome poles.






  • Twin pole mount suitable for screens from 65" (165cm) up to 100" (254cm)
  • Heavy duty steel capable of supporting very heavy loads
  • 4 fixed tilt positions
  • Lateral adjustment of screen once mounted
  • Integrated cable management for a neat and tidy installation
  • Adjustment screws allow screen to be levelled once mounted
  • Simple ‘hook-on’ installation
  • Recommended screen size: 65" (165cm) - 100" (254cm)
  • Max load: 80kg (176lbs)
  • VESA® & non-VESA fixings: up to 1000mm x 600mm

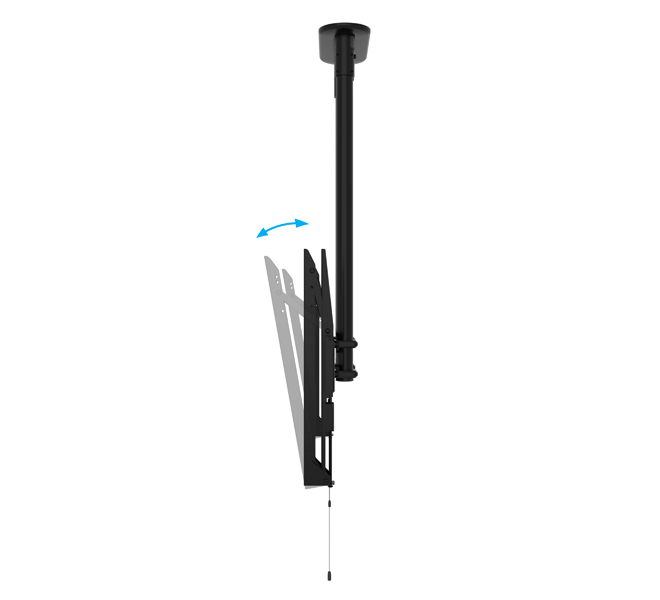

  • Tilt positions: 0°, 5°, 10°, 15°
  • Ceiling drop: 980mm (38.6"), 1480mm (58.2"), 1980mm (78") or 2980mm (117.3")*
  • Colour option (Ø50mm (2") poles): Black, White or Chrome
  • Colour option (ceiling plate): Black or White

    *To the centre of the interface mount
BT8449 - XL Flat Screen Ceiling Mount With Tilt Available with a choice of four pole lengths: 1m, 1.5m, 2m or 3m BT8448 with Screen
Post installation screen alignment for perfect positioning every time Integrated cable management for a neat and tidy installation White BT7807 and BT7850-100 with BT8448 and screen
