System X Touchscreen Trolley for 84" Surface Hub™

BT8508

For 84" Microsoft Surface Hub™

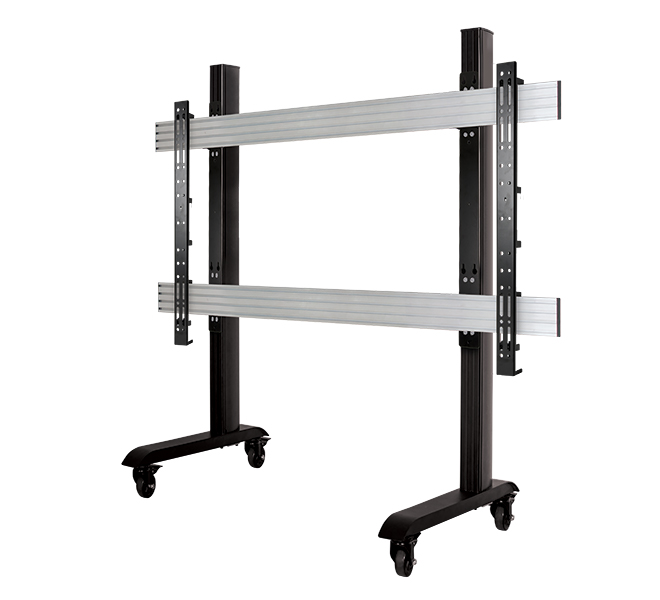

The BT8508 is a mobile solution designed to mount Microsoft's 84" SurfaceHub and other extra-large interactive displays over 72". Capable of supporting heavy duty loads, the trolley has a welcome rigidity which means mounted touchscreens do not move or flex whilst in use. Levelling screws allow easy height adjustment of the screen once mounted and integrated cable management keeps finished installations neat and tidy. Non-marking 4" braked castors allow the trolley to be re-located easily and safely without marking or scuffing floor surfaces.






  • Designed to mount Microsoft's 84" Microsoft Surface Hub display
  • Universal design is also ideal for other standard or interactive screens
    over 72" (such as Sahara Clevertouch®)
  • High-end aesthetic quality
  • Integrated cable management

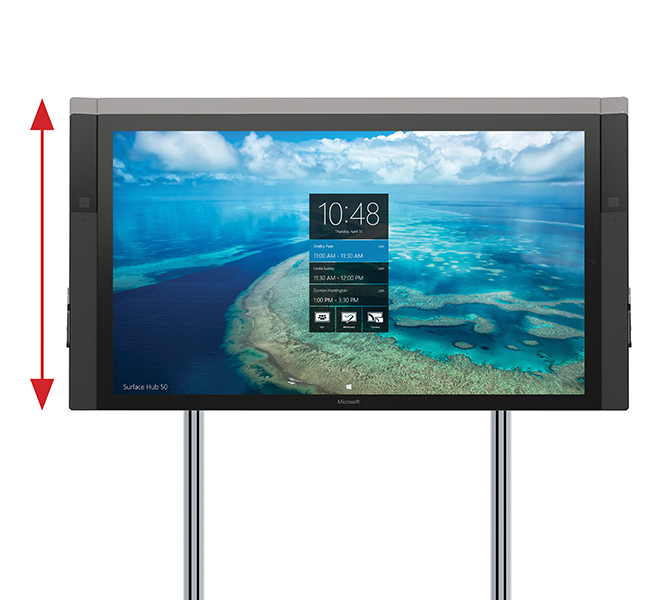

  • Interface arms include levelling screws to adjust the height of the screen

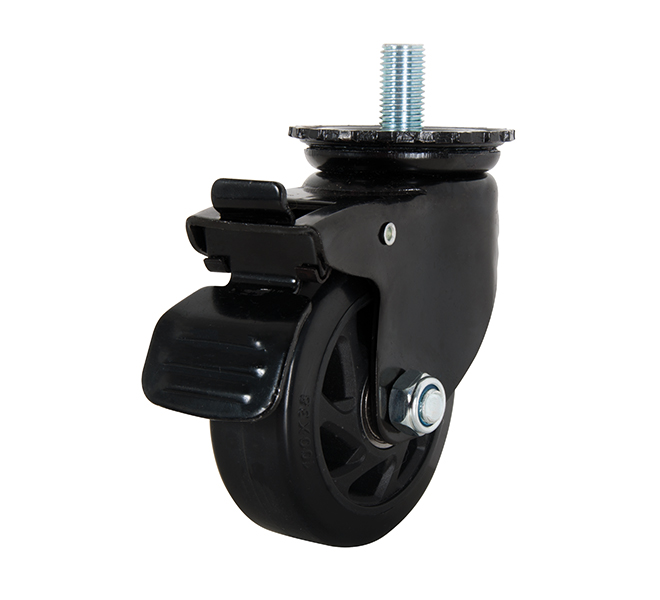

  • Includes non-marking 4" locking/braked castors
  • Collar compatible accessories such as shelves can be fitted directly to the extrusion
  • Safety screws help prevent unauthorised removal of screens

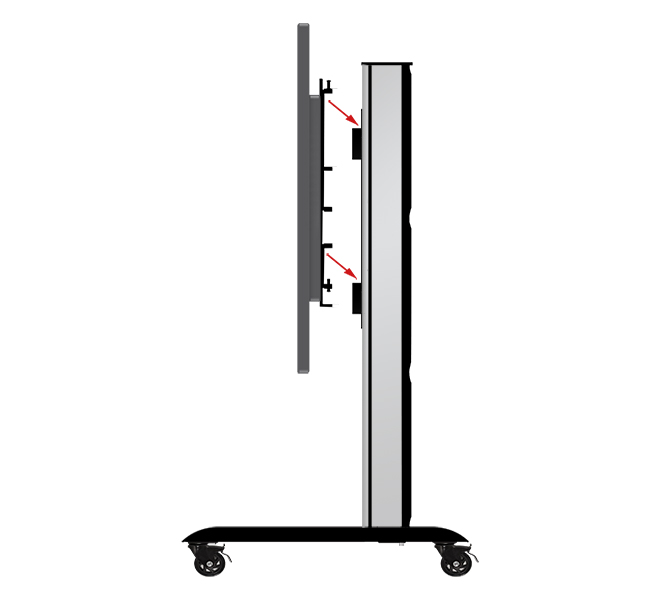

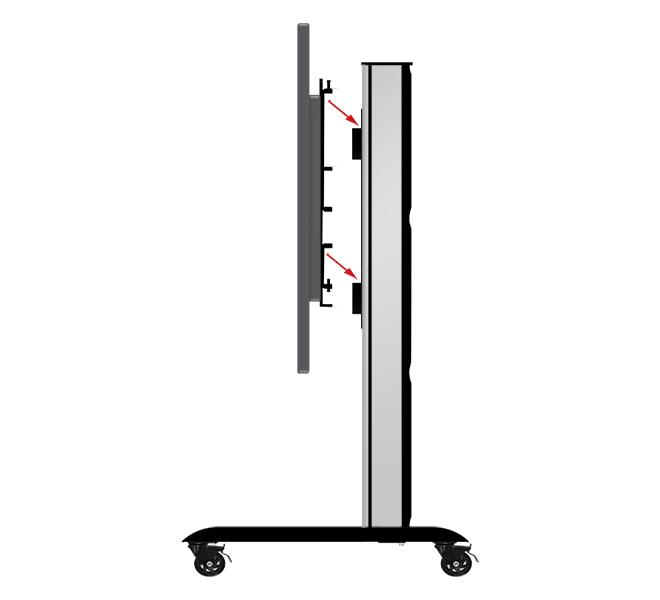

  • Simple 'hook-on' installation
  • All mounting hardware included
  • Recommended screen size: 72" up to 120"
  • Recommended surface hub size: 84"
  • Max load: 200kg
  • Universal fixing compatibility: up to 1400 x 800
  • Colour (mounting rail): Silver
  • Colour (vertical columns): Silver or Black
  • Colour (base): Black
Touchscreen Trolley for Microsoft® SurfaceHub™ Simple 'hook-on' installation Interface arms include levelling screws to adjust the height of the screen Includes non-marking 4
