XXL Display Wall Mount

BT9920

For XXL Screens

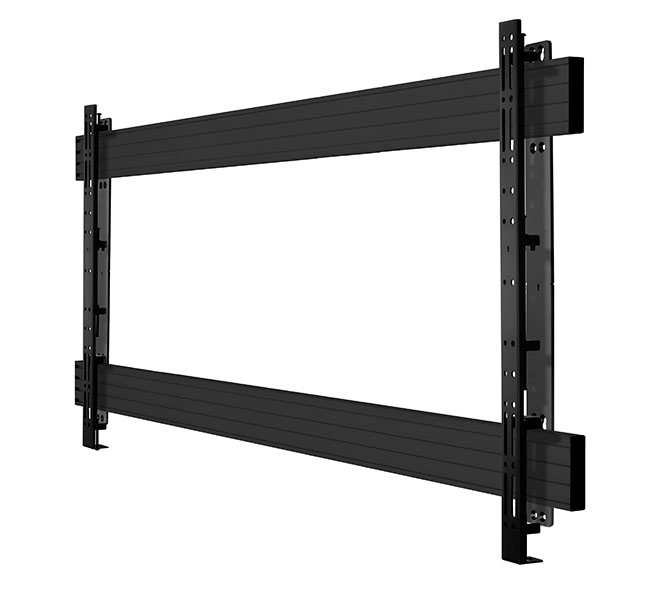

The BT9920 is a dual-rail wall-mounted solution designed to mount extra-large displays over 72" and capable of supporting heavy loads up to 200kg, ideal for mounting sizeable digital signage displays or interactive screens with a simple hook-on installation. BT9920 features height adjustment screws that allow the screen to be levelled once mounted and integrated cable management, keeping the finished installation tidy.





  BT9920
  • Designed to wall mount extra-large signage displays such as LG's 110UM5J
  • The universal design is ideal for other standard or interactive screens over 72" (such as Sahara Clevertouch® or Microsoft Surace Hub)
  • Slim-line design for a close to the wall installation
  • Keyhole fixings on wall plates for an easier installation
  • Cable management clips (BT8390-CMC) are included to keep the installation tidy
  • Interface arms include levelling screws to adjust the height of the screen

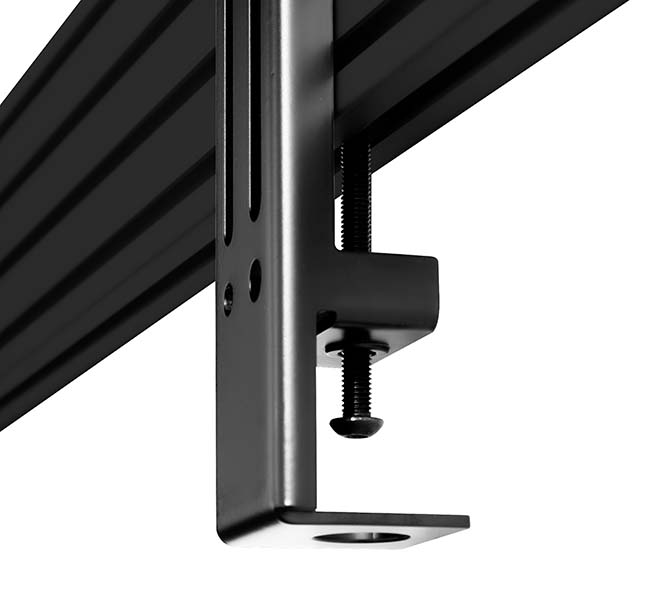

  • Safety screws help prevent unauthorised removal of screens

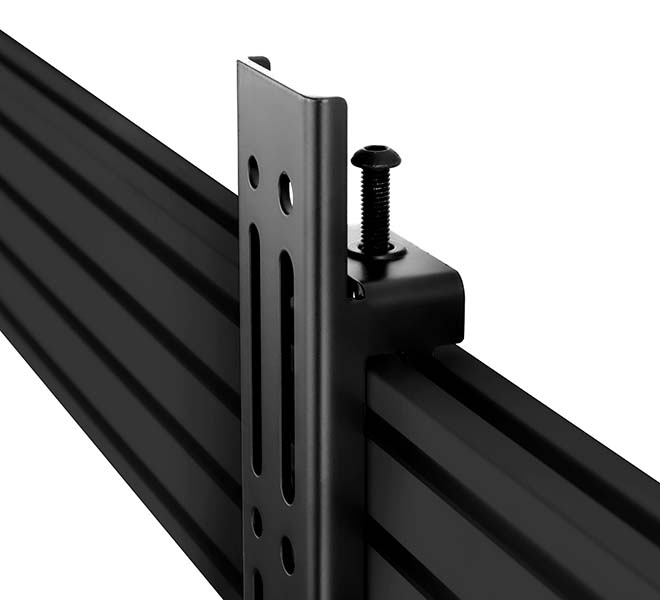

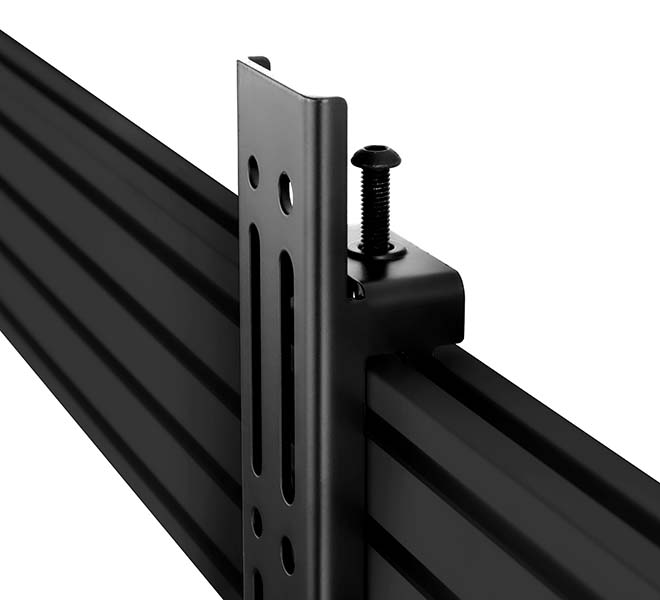

  • Simple 'hook-on' installation
  • All mounting hardware included
  • Recommended screen size: 72” (183cm) up to 120" (305cm)
  • Max load: 200kg (440lbs)
  • VESA® and non-VESA Fixings: up to 1600 x 800mm
  • Distance from wall: 52mm (2")
  • Colour (mounting rail): Black or Silver
  • Colour (VESA arms): Black



BT9920 - Simple 'hook-on' installation BT9920 - Safety screws help prevent unauthorised removal of the screen BT8390-CMC - Cable management clips (BT8390-CMC) are included to keep the install tidy

Specification Sheets

Specification Sheet - English (PDF)

Specification Sheet - US (PDF)

Spezifikationsblatt - Deutsch (PDF)

Trang thông số kỹ thuật - Tiếng Việt (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)

You must log in to view this content
