Universal Twin Screen VC Trolley

BT8515

For two screens up to 55"




The BT8515 is a premium mounting solution designed to mount two screens side by side for video conferencing applications. The Trolley is supplied with an adjustable VC shelf that allows cameras to be fitted above or below the screen. Integrated cable management hides cables for a smart installation in any environment and nonmarking braked castors allow the trolley to be relocated easily and safely without marking floor surfaces. Screw-in levelling feet for freestanding applications are available separately.






  • Universal design suitable for mounting two screens side by side
  • High-end aesthetic quality

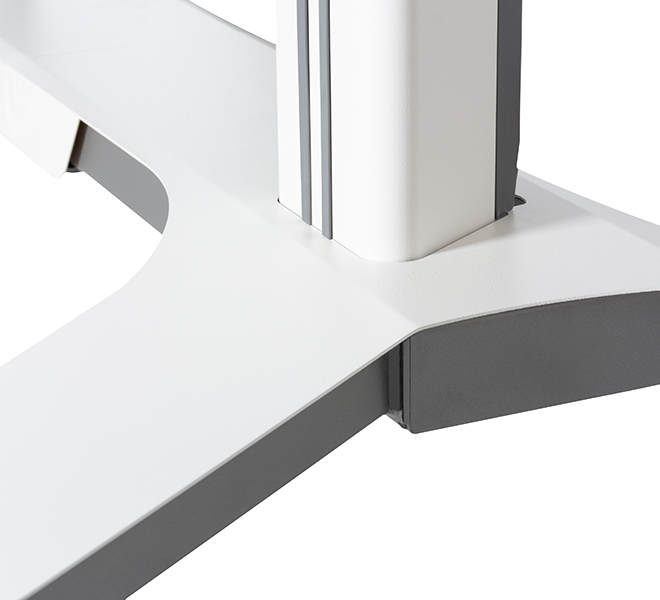

  • Heavy duty steel base construction provides stability, eliminating
    the need to bolt to the floor
  • Includes VC shelf which can be fixed above or below the screen
  • VC shelf its most cameras with 1/4" thread with 100 x 100mm fixing points
  • Interface arms include levelling screws to adjust the screen height
  • Integrated cable management for a smart installation
  • Safety screws help prevent unauthorised screen removal
  • Dual colour options available for a modern contemporary look
  • Adjustable levelling feet for a freestanding installation
    are available separately (BT856-FEET)
  • Simple 'hook-on' screen installation with all mounting hardware included
  • Recommended screen size: 47" (119cm) - 55" (140cm)
  • Max load: 70kg (154.3lbs) per screen
  • VESA® and non-VESA fixings: up to 600mm x 400mm
  • Dimensions (Trolley): W:1754mm (69") H:1905mm (75") D:991mm (39")
  • Dimensions (VC Shelf): W:120mm (4.7") H:3mm (0.11") D:235mm (9.2")
  • Colour options: Black, Black & Silver or White

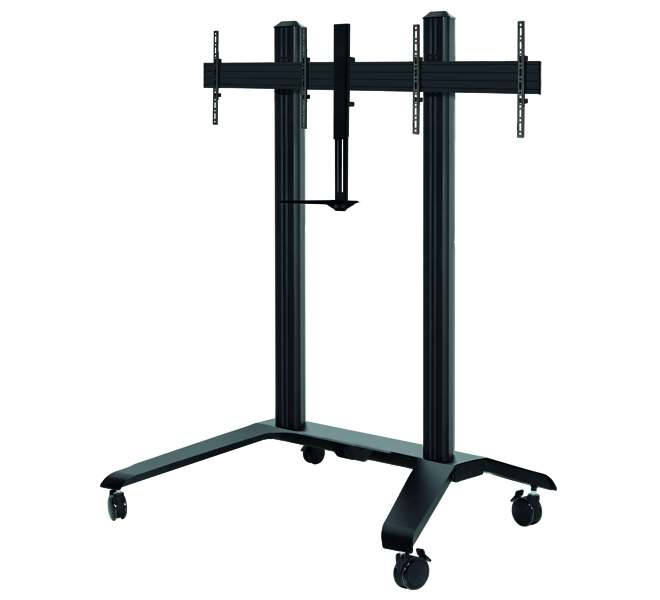

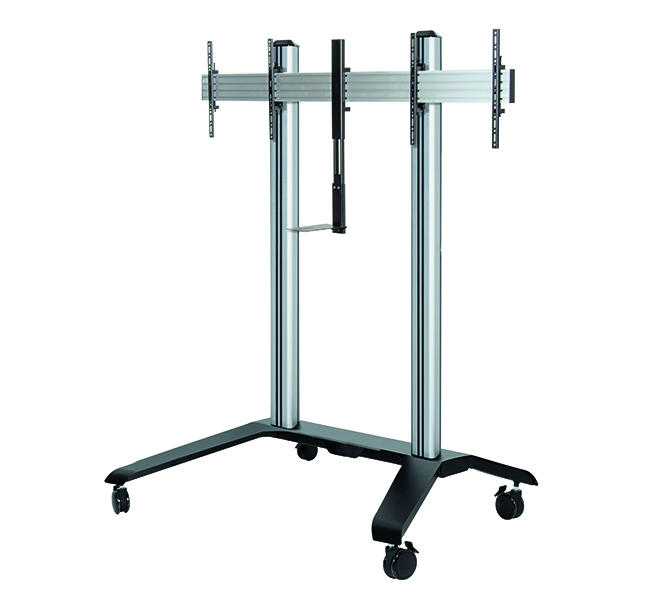

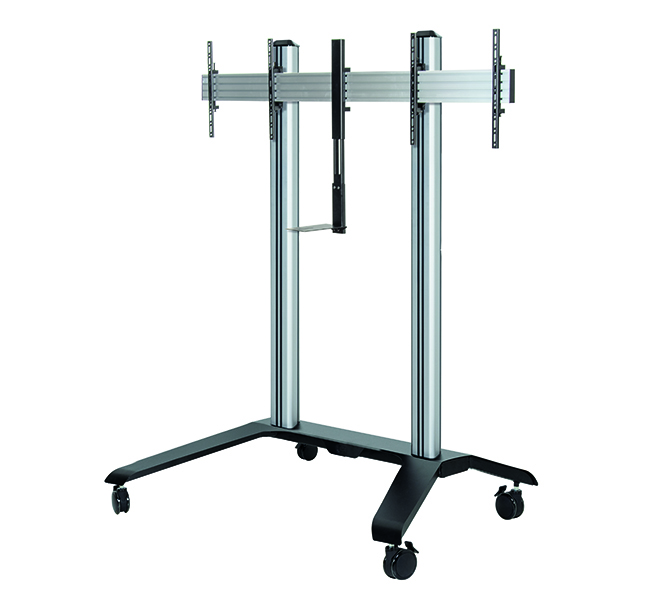

BT8515 - Universal Twin Screen VC Trolley - Black BT8515 - Universal Twin Screen VC Trolley - Silver with Black Base

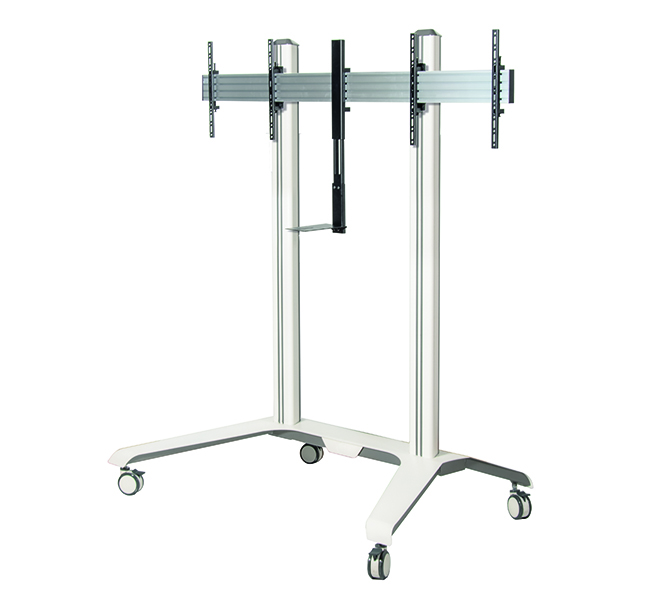

BT8515 - Universal Twin Screen VC Trolley - White with Silver Mounting Rail

Can also be mounted directly to System X vertical columns

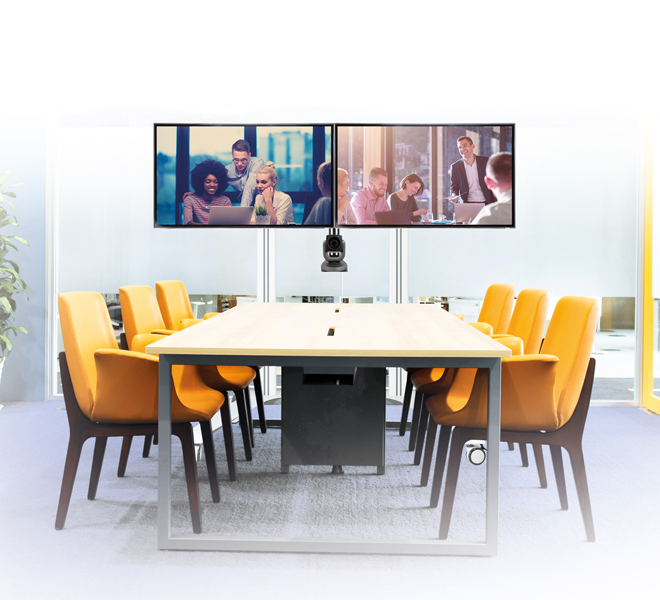

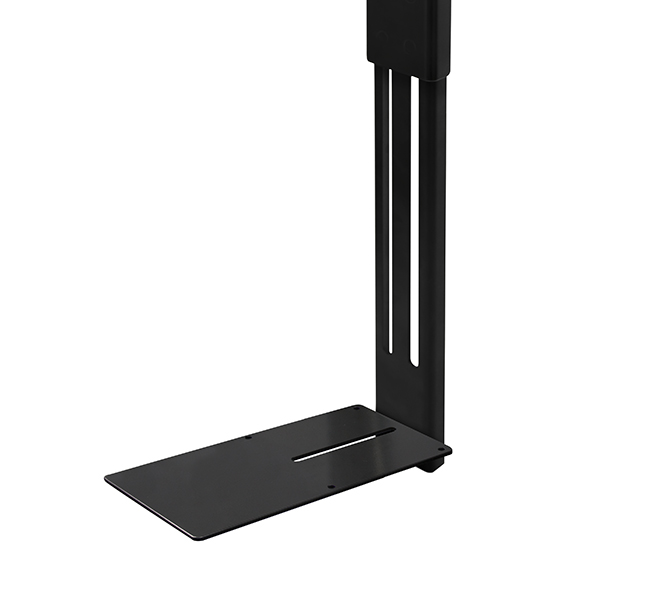

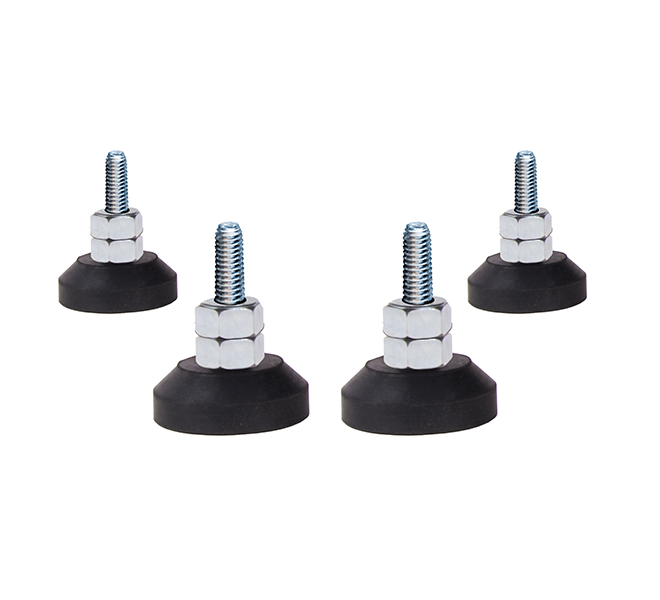

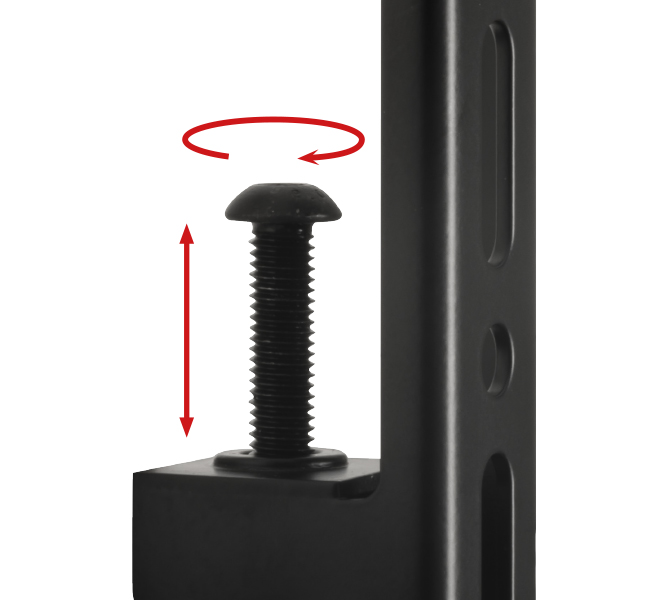

BT8515 - Interface arms include levelling screws to adjust the height of the screen BT8515 - Includes VC shelf which can be fixed above or below the screen BT8515-FEET - Adjustable Levelling Feet are available in packs of 4 and can be fitted to BT8516 for a freestanding installation BT8516 - Universal Twin Screen VC Trolley - Lifestyle Image
