Universal Flat Screen Trolley With Adjustable Height


Universal Flat Screen Trolley
With Adjustable Height


As part of B-Tech’s Designer Trolley range, the BT8563 is a high-end mounting solution which adds a touch of aesthetic class to any mobile display requirement. Available in a choice of black, silver and white, with contrasting dual colour accents and a triangular shaped column, the BT8563 has a modern, contemporary look and is universally suitable for mounting screens in both landscape and portrait orientations. The adjustable height feature is quick and easy to use without the need for tools and levelling screws are included for post-installation screen levelling. Integrated cable management keeps finished installations looking neat and tidy whilst non-marking, braked castors make repositioning quick and easy without marking or scuffing floor surfaces.



  BT8563 - Universal flat screen designer trolley with height adjustment
  • Universal design suitable for displaying screens in a landscape or portrait orientation
  • Easy to use tool-less height adjustment
  • Available in three options to suit a range of screen weights
  • Non-marking locking / braked castors
  • Collar compatible accessories such as shelves (available separately)
    can be fitted directly to the column
  • Integrated cable management for a smart installation
  • Safety screws help prevent unauthorised removal of screen
  • Dual colour options available for a modern, contemporary look
  • Simple ‘hook-on’ screen installation with all mounting hardware included
  • Recomended screen size: up to 70" (178cm)
  • Max load: 70kg (154.3lbs)
  • Weight range for BT8563-01: 19kg (41.9lbs) - 33kg (72.7lbs)
  • Weight range for BT8563-02: 34kg (74.9lbs) - 62kg (136.7lbs)
  • Weight range for BT8563-03: 63kg (138.9lbs) - 70kg (154.3lbs)
  • VESA® & non-VESA fixings: up to 600mm x 400mm
  • Trolley dimensions: H:1932mm (76")* W:1075mm (72.3") D:863mm (34")
  • Tooless height adjustment range: 400mm (15.7")
  • Colour options: Black, Black & Silver or White

    *Measurement from floor to top of vertical column (including end cap)

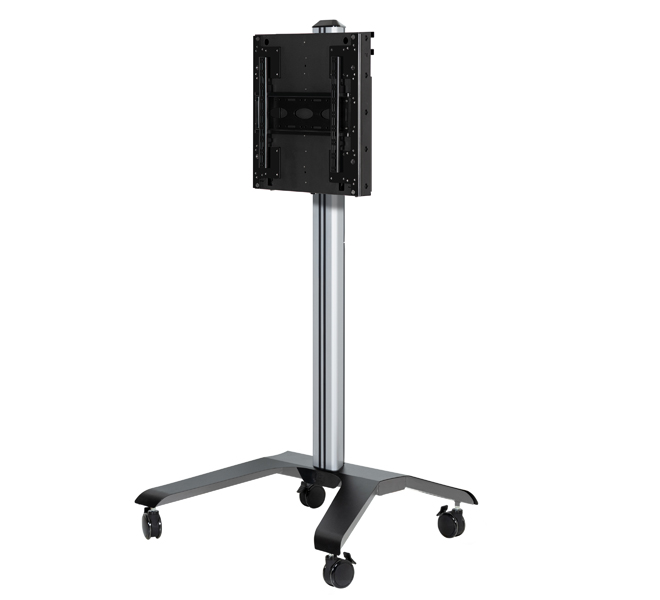

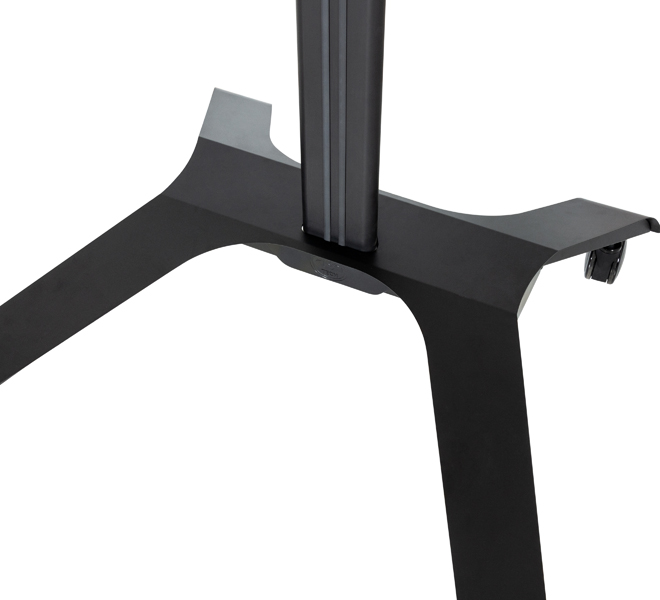

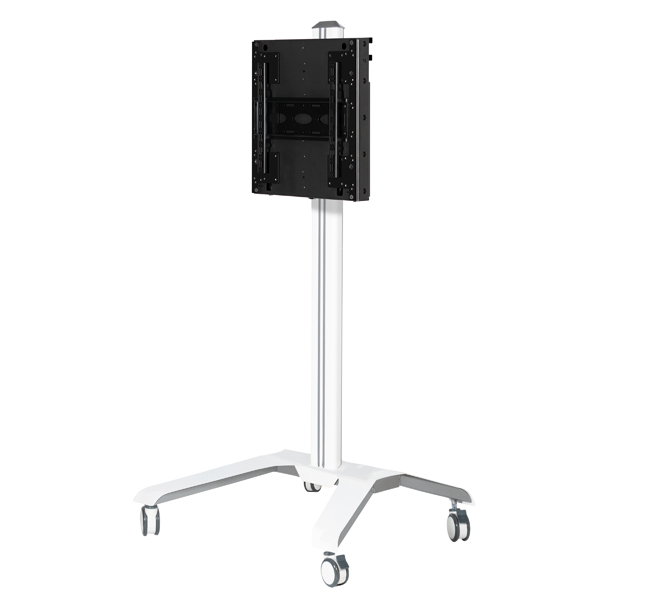

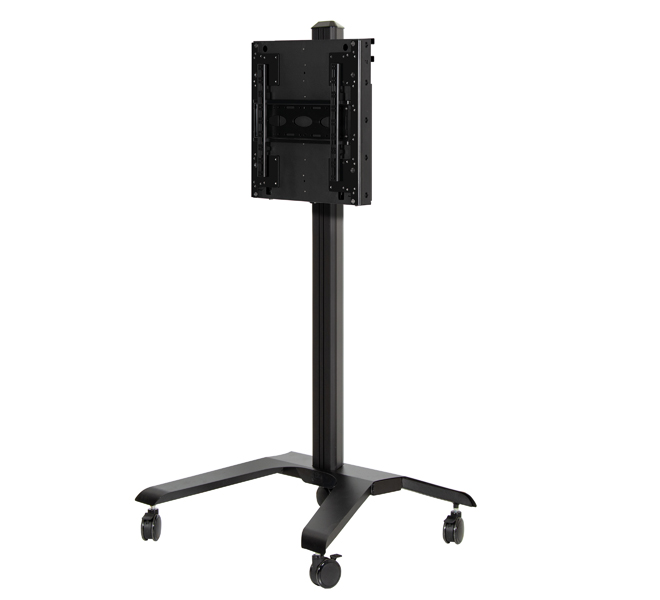

BT8563 - Universal flat screen trolley with height adjustment BT8563 - Universal flat screen trolley with height adjustment - Black / Silver BT8563 - Universal flat screen trolley with height adjustment - White BT8563 - Designer trolley - Base

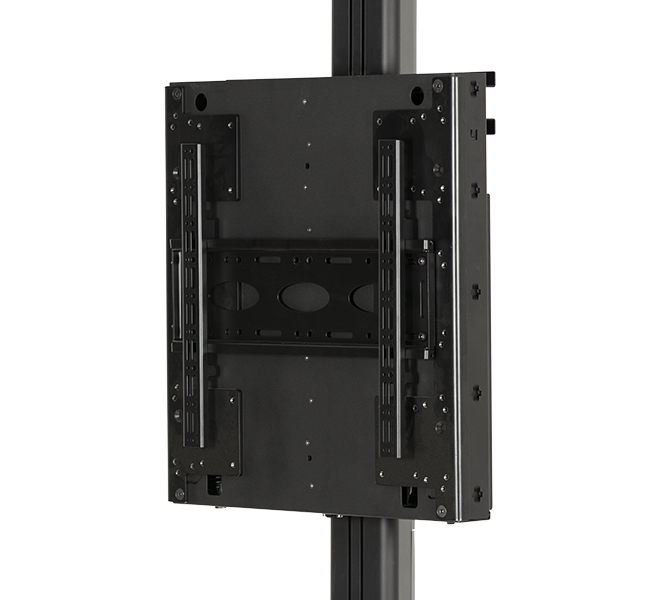

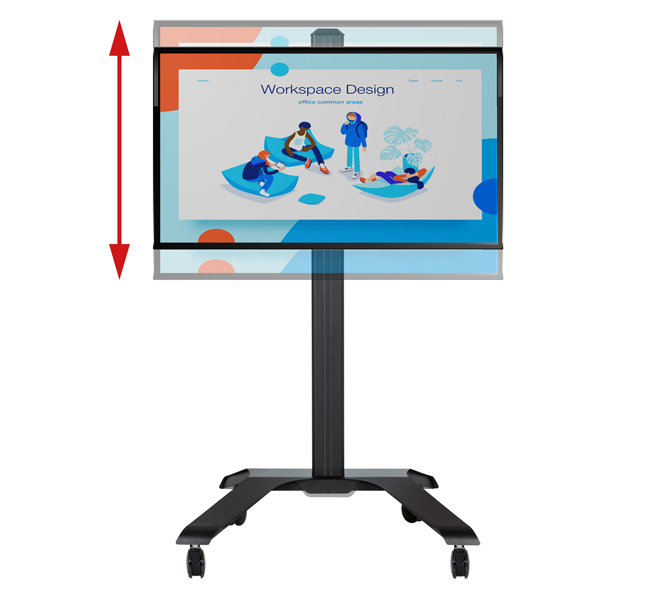

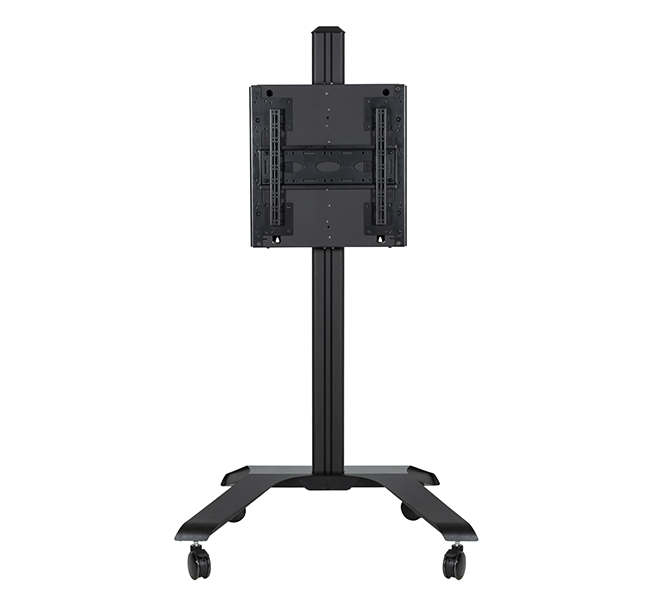

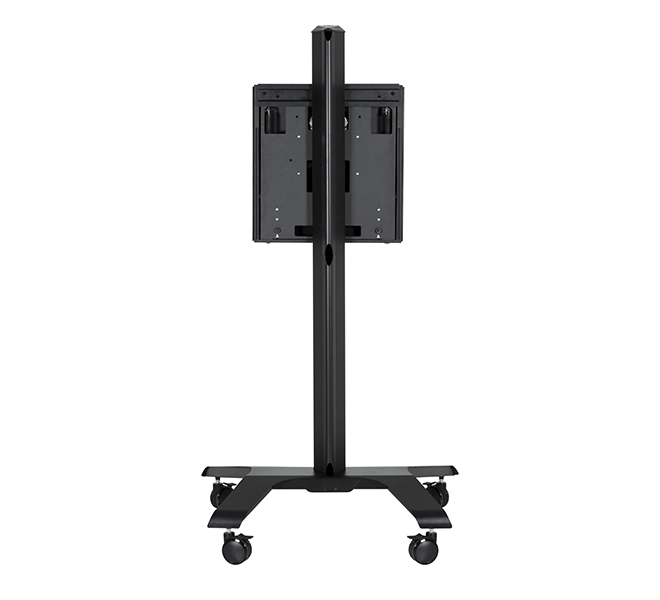

BT8563 - BalanceBox BT8563 - Designer trolley - Front BT8563 - Designer trolley - Rear BT8563 - Height adjustment

Designer Trolley Range

Specification Sheets

Specification Sheet - English (PDF)

Fiche de Spécifications - Français (PDF)

Hoja de Especificación - Español (PDF)

Spezifikationsblatt - Deutsch (PDF)

Specificatieblad - Nederlands (PDF)


Installation Guides

Installation Guide (PDF)


Technical Drawings

Technical Drawing (PDF) - BT8563-01

Technical Drawing (PDF) - BT8563-02

Technical Drawing (PDF) - BT8563-03
