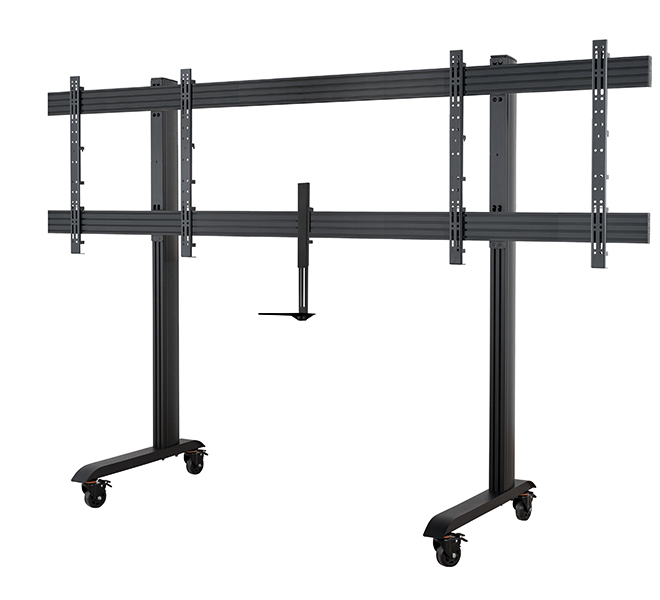

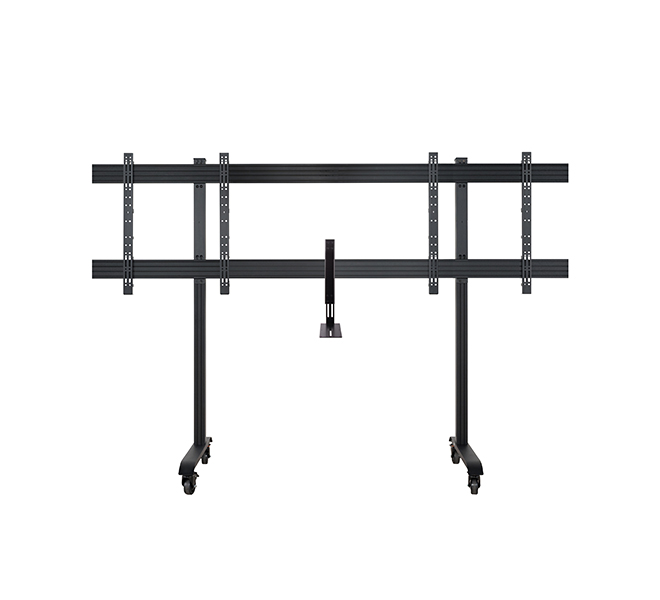

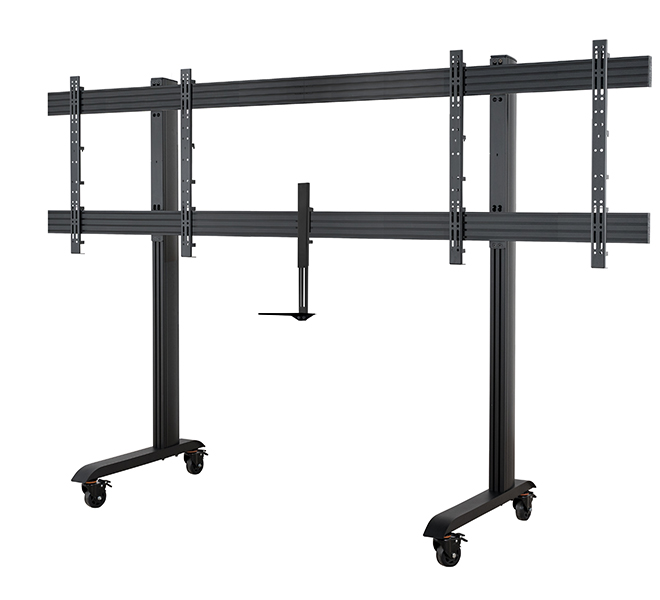

XXL Twin Screen VC Trolley

BT8518

Mobile solution for twin screens up to 86"

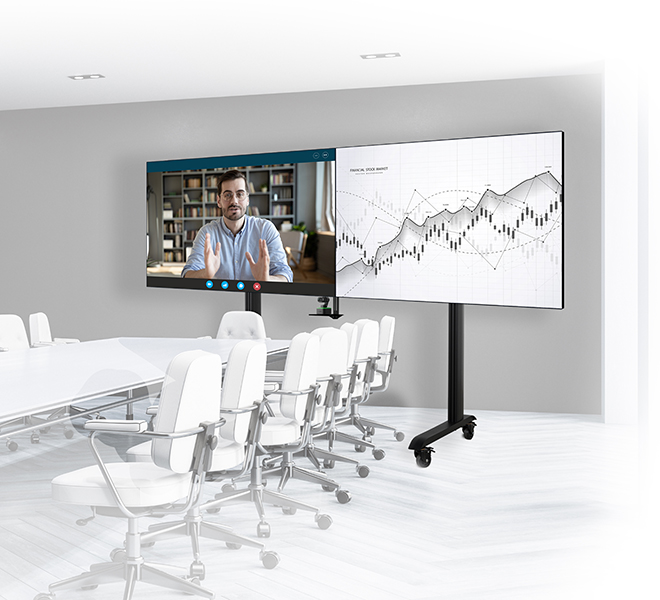

The BT8518 is a premium mobile mounting solution designed to mount two XL screens side by side, ideal for video conferencing applications. The stand features Non-marking braked castors that allow the trolley to be relocated quickly and safely without marking floor surfaces. Integrated cable management hides cables for a tidy installation, and all interface arms include level adjustment screws for easy screen alignment.

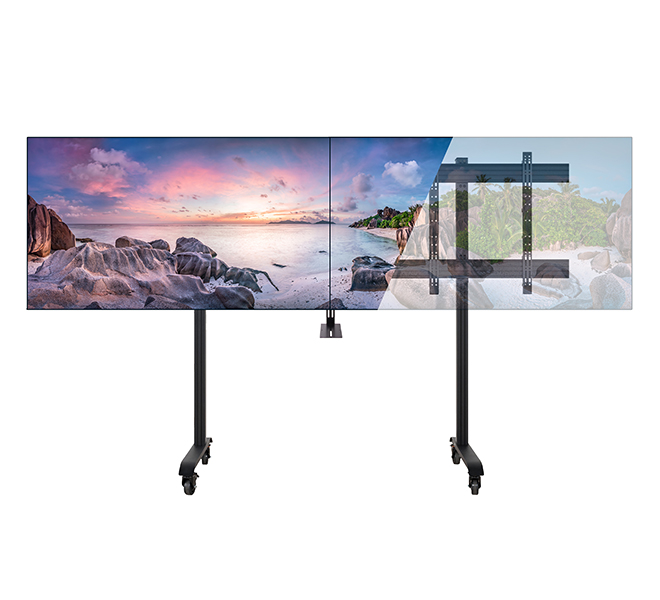

  • Universal design suitable for mounting two XL screens side by side

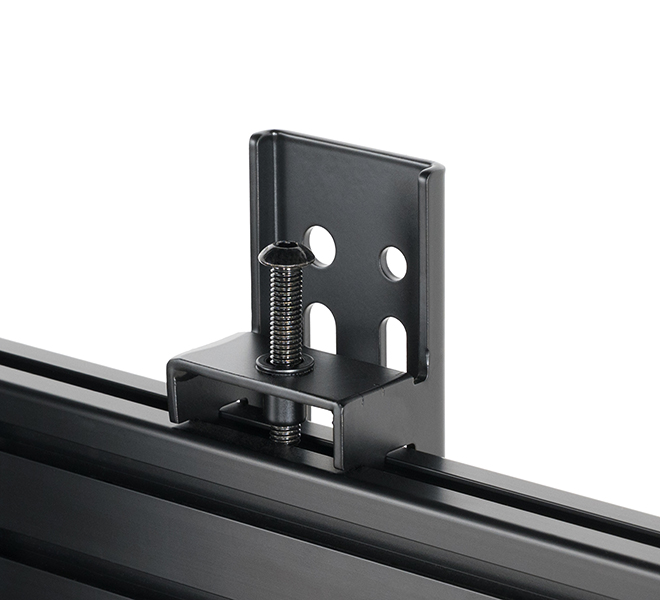

  • Interface arms include levelling screws to adjust the screen height
  • Integrated VC shelf with an adjustable arm allows a camera to be fitted above or below the screen
  • VC shelf fits most cameras with 1/4" thread and 100 x 100mm fixing points
  • Integrated cable management for a tidy installation
  • Safety screws help prevent unauthorised screen removal
  • Lockable non-marking 4" castors
  • Simple 'hook-on' screen installation
  • Recommended screen size: 75-86" (190-220cm)
  • Max load: 100kg (220lbs) per screen
  • VESA® and non-VESA fixings: up to 1000 x 800mm
  • Dimensions (Trolley): W:3000mm (118") H:2026mm (79") D:950mm (37.40")
  • Dimensions (VC Shelf): W:120mm (4.72") H:3mm (0.11") D:235mm (9.25")
  • Colour: Black or Silver & Black

Specification Sheets

Specification Sheet - English (PDF)

Technisches Datenblatt - Deutsch (PDF)



Installation Guide

Coming Soon



Technical Drawings

Technical Drawing (PDF)
