XXL Twin Screen VC Stand

BT8528

Freestanding solution
for twin screens up to 86"

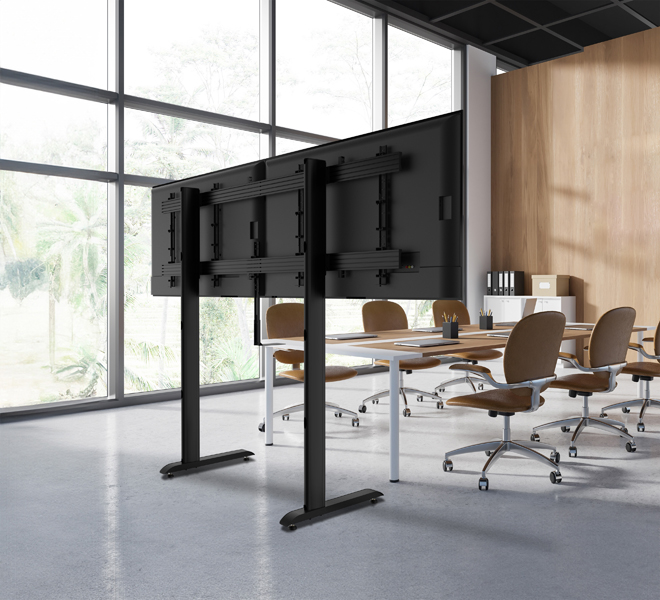

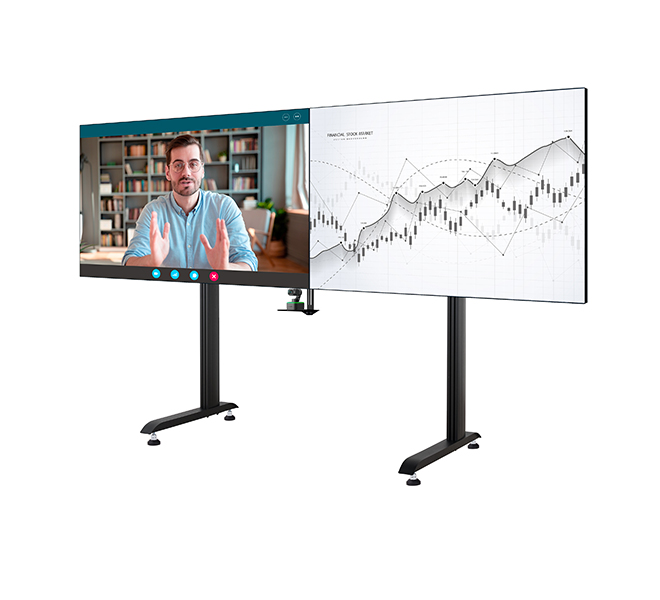

The BT8528 is a premium freestanding mounting solution designed to mount two XL screens side by side, ideal for video conferencing applications. The stand features adjustable levelling feet to position the unit on uneven floors and maintain a level viewing experience. Integrated cable management hides cables for a tidy installation, and all interface arms include level adjustment screws for easy screen alignment.






  • Universal design suitable for mounting two XL screens side by side
  • Interface arms include levelling screws to adjust the screen height
  • Integrated VC shelf with an adjustable arm allows a camera to be fitted above or below the screen
  • VC shelf fits most cameras with 1/4" thread and 100 x 100mm fixing points
  • Integrated cable management for a tidy installation
  • Safety screws help prevent unauthorised screen removal
  • Adjustable levelling feet can be individually adjusted for a level display on an uneven floor
  • Simple 'hook-on' screen installation
  • Recommended screen size: 70-86" (177-220cm)
  • Max load: 100kg (220lbs) per screen
  • VESA® and non-VESA fixings: up to 1000 x 800mm
  • Dimensions (Trolley): W:3000mm (118") H:1926.5mm (76") D:950mm (37.40")
  • Dimensions (VC Shelf): W:120mm (4.72") H:3mm (0.11") D:235mm (9.25")
  • Colour: Black or Silver & Black

Specification Sheets

Specification Sheet - English (PDF)

Technisches Datenblatt - Deutsch (PDF)



Installation Guide

Coming Soon



Technical Drawings

Technical Drawing (PDF)

You must log in to view this content
