Motorised Height Adjustable Floor-To-Wall Stand

BT8559

For screens up to 100"




The BT8559 is a motorised, height-adjustable floor-to-wall stand designed for displays up to 100" in size. Its electronic height adjustment system allows for effortless raising and lowering of the screen via a wired control panel, with an adjustment range of up to 650mm that makes the display accessible to a variety of users. Capable of mounting interactive touchscreens of up to 100kg and featuring a sleek and modern design aesthetic, quick assembly and ease of use, the BT8559’s performance in educational and corporate settings is unmatched. An integrated storage unit at the rear provides convenient space for cable management and AV equipment, making the complete AV set up both neat and practical







BT8559


  • Motorised height-adjustment for precise screen positioning
  • Supplied with a wired control console

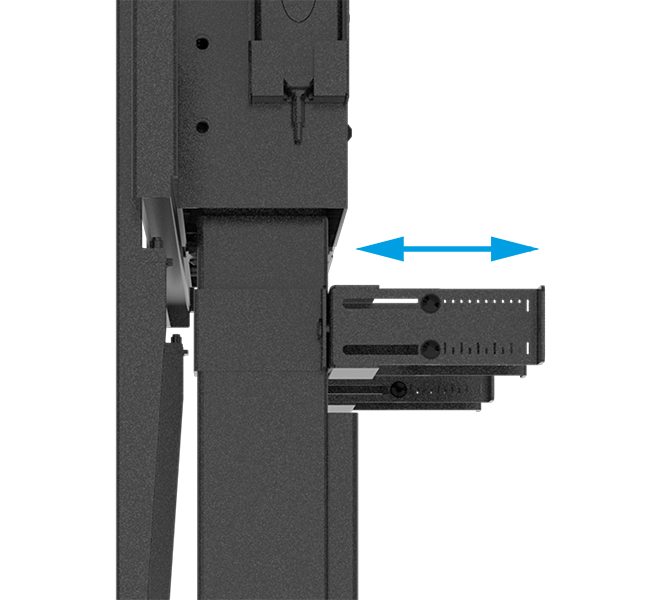

  • Adjustable depth to the wall

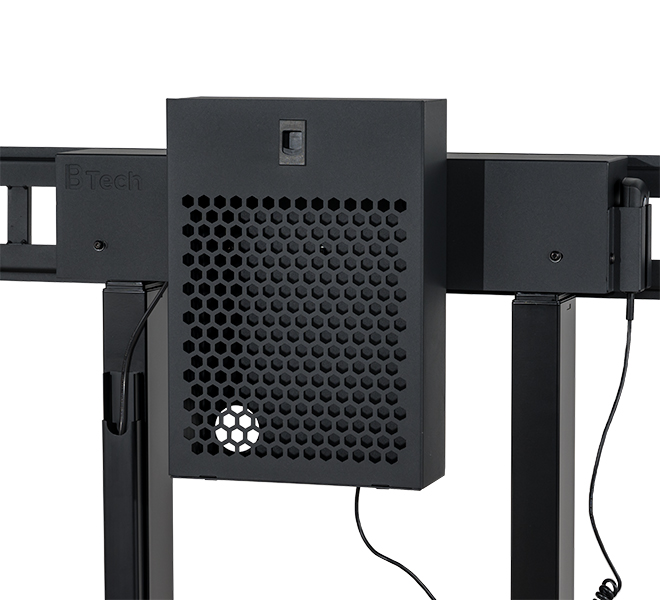

  • Includes storage compartment for cables and AV media equipment
  • Ideal for use with large touchscreens and interactive displays
  • Features auto-stop; screen stops moving when resistance is felt
  • Safety screws help prevent unauthorised removal of the screen
  • Simple hook-on screen installation
  • Integrated cable managment
  • All mounting hardware included
  • Recommended screen size: 55" (140cm) up to 100" (254cm)
  • Max load: 100kg (220lbs)
  • VESA® & non-VESA fixings: up to 900 x 600
  • Dimensions (Stand): H: 1310mm (55.7") - 1960mm (75.1") W: 1000mm (39.3") D: 202mm (7.95") - 252mm (9.92")
  • Dimensions (Inner Storage Box): H: 352.8mm (13.8") W: 257mm (10.1") D: 103mm (4.05")
  • Height adjustment range: up to 650mm (25.6")
  • Height adjustment speed: 35mm (1.37") per second

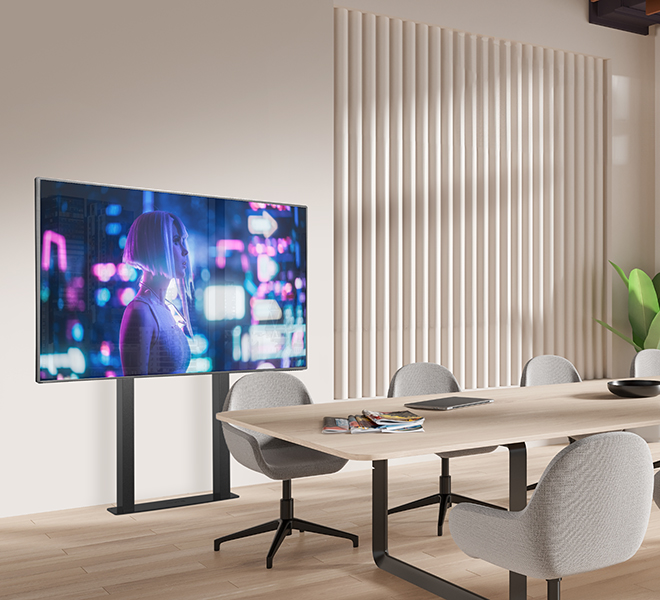

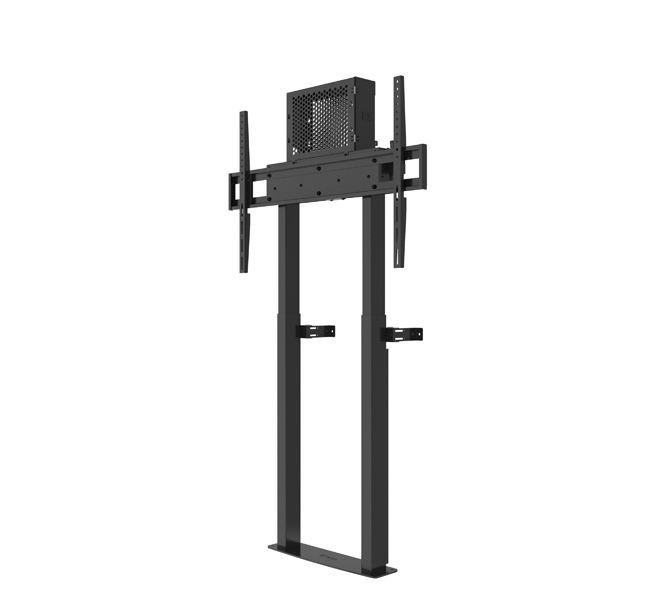

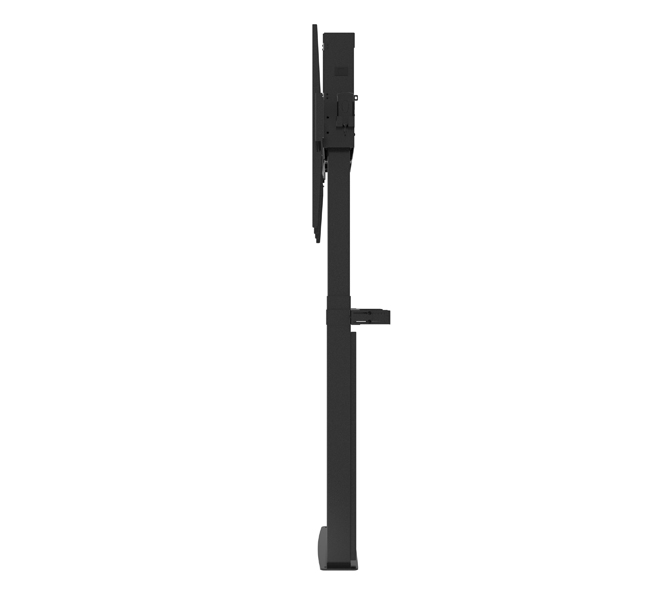

BT8559 - Front 3QTR BT8559 - Front View BT8559 - Side View BT8559 - Lifestyle

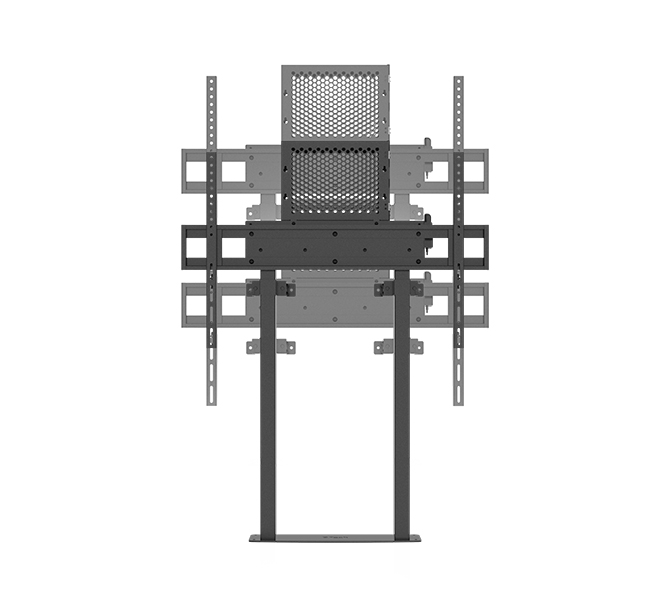

BT8559 - Height Adjustment BT8559 - Supplied with a wired control console BT8559 - Adjustable depth to the wall BT8559 - Includes storage compartment for cables and AV media equipment

Specification Sheet

Specification Sheet - English (PDF)

Specification Sheet - US (PDF)



Installation Guide

Installation Guide (PDF)
