Universal Flat Screen Trolley

BT8562

Universal Flat Screen Trolley

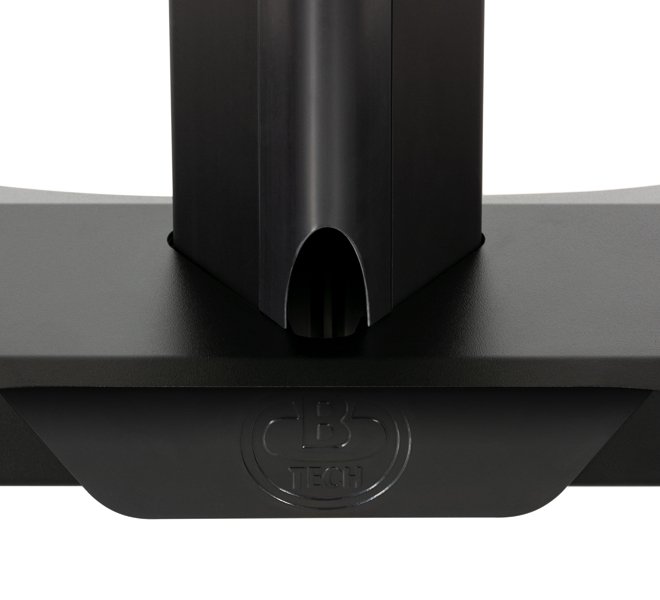

As part of B-Tech’s Designer Trolley range, the BT8562 is a high-end mounting solution which adds a touch of aesthetic class to any mobile display requirement. Featuring a triangular shaped column, the BT8562 has a modern, contemporary look and is universally suitable for mounting screens in both landscape and portrait orientations. Levelling screws allow post-installation screen levelling and integrated cable management keeps finished installations looking neat and tidy. Non-marking, braked castors make repositioning quick and easy without marking or scuffing floor surfaces and AV components such as shelves can be fitted directly to the column to accessorise the install.





  BT8562 - Universal flat screen designer trolley
  • Universal design suitable for displaying screens in a landscape or portrait orientation
  • Non-marking locking / braked castors included
  • Collar compatible accessories such as shelves (available separately)
    can be fitted directly to the column
  • Interface arms include levelling screws to adjust the height of the screen
  • Integrated cable management for a smart installation
  • Safety screws help prevent unauthorised removal of screen
  • Simple ‘hook-on’ screen installation with all mounting hardware included

BT8562 V1 SPECIFICATIONS

  • For screen sizes: up to 75" (190cm)
  • Max load: 70kg (154lbs)
  • VESA® & non-VESA fixings: up to 600mm x 400mm
  • Trolley dimensions: H:1932mm (76") W:1075mm (42.3") D:863mm (34")
  • Colour options: Black, Black/Silver or White



BT8562 V2 SPECIFICATIONS

  • For screen sizes: up to 75" (190cm)
  • Max load: 70kg (154lbs)
  • VESA® & non-VESA fixings: up to 600mm x 400mm
  • Trolley dimensions: H:1885mm (74") W:1029mm (40.5") D:767mm (30.2")
  • Colour options: Black

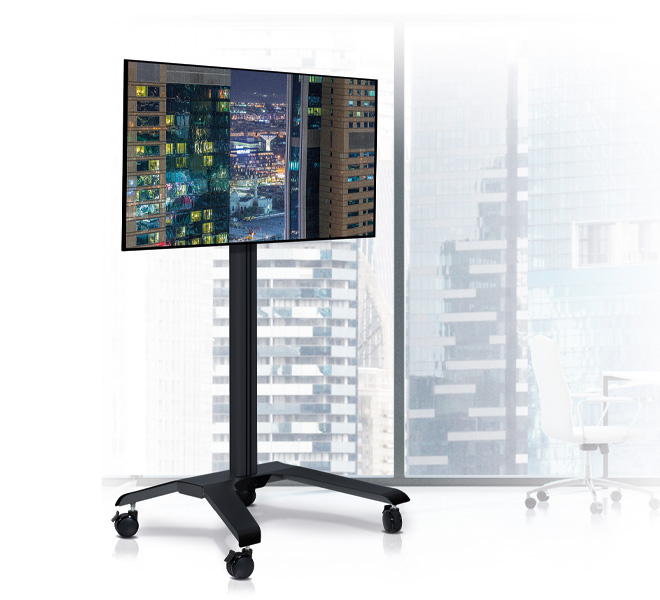

BT8562 - Black designer trolley BT8562 - Designer trolley BT8562 - Designer trolley

Specification Sheets V1

BT8562 V1 - Specification Sheet - English (PDF)

BT8562 V1 - Specification Sheet - US Letter (PDF)

BT8562 V1 - Fiche de Spécifications - Français (PDF)

BT8562 V1 - Hoja de Especificación - Español (PDF)

BT8562 V1 - Spezifikationsblatt - Deutsch (PDF)

BT8562 V1 - Specificatieblad - Nederlands (PDF)


Installation Guide V1

BT8562 V1 Installation Guide (PDF)



Technical Drawing V1

BT8562 V1 Technical Drawing -English (PDF)



Specification Sheet V2

BT8562 V2 - Specification Sheet - English (PDF)



Installation Guide V2

BT8562 V2 Installation Guide (PDF)



Technical Drawing V2

BT8562 V2 Technical Drawing -English (PDF)
