Flat Screen Trolley With Flip Rotation & Height Adjustment

BT8567

Ideal for use with Samsung Fl!p




As part of B-Tech’s Designer Trolley range, the BT8567 is a high-end mounting solution ideal for the use of touchscreen displays such as the Samsung Flip. The mount’s rotational interface allows the user to easily rotate the display 90° for a smooth transition from landscape to portrait. The adjustable height feature is quick and easy to use without the need for tools and levelling screws are included for post-installation screen levelling. Cable management keeps finished installations looking neat and tidy. Non-marking, braked castors make repositioning quick and easy without marking or scuffing floor surfaces and AV components such as shelves can be fitted directly to the column to accessorise the install.

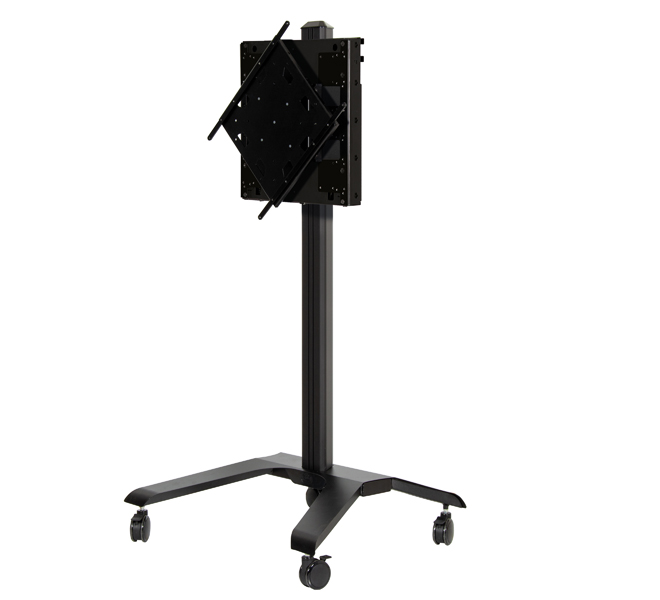

  BT8567 - Flat Screen Trolley With Flip Rotation & Height Adjustment - Black

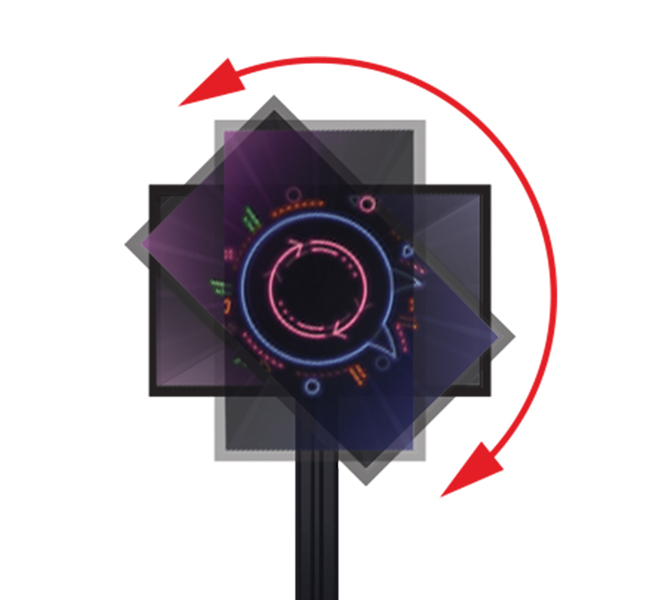

  • Rotational interface allows screens to be rotated from landscape
    to portrait (and vice versa) in one smooth transition

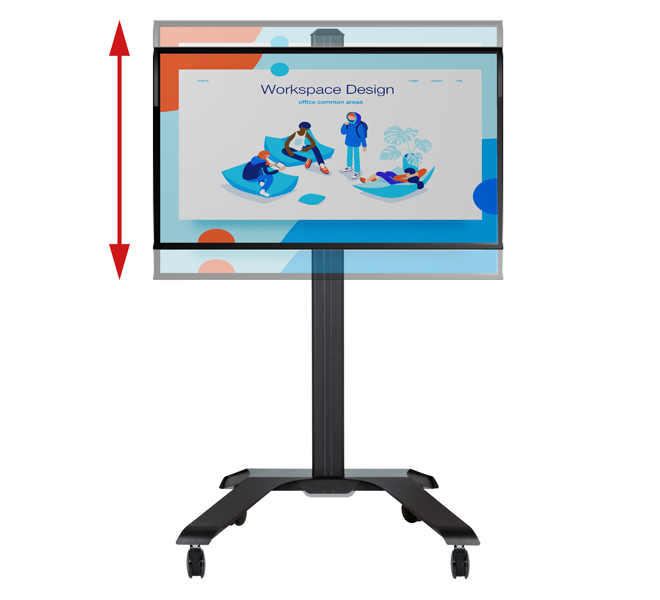

  • Easy to use tool-less height adjustment
  • Available in two options to suit a range of screen weights
  • Rotation can be stopped or fixed at any angle between 0°and 90°
  • -4.5° negative tilt provides an ergonomic, natural writing surface
    (ideal for Samsung Flip)

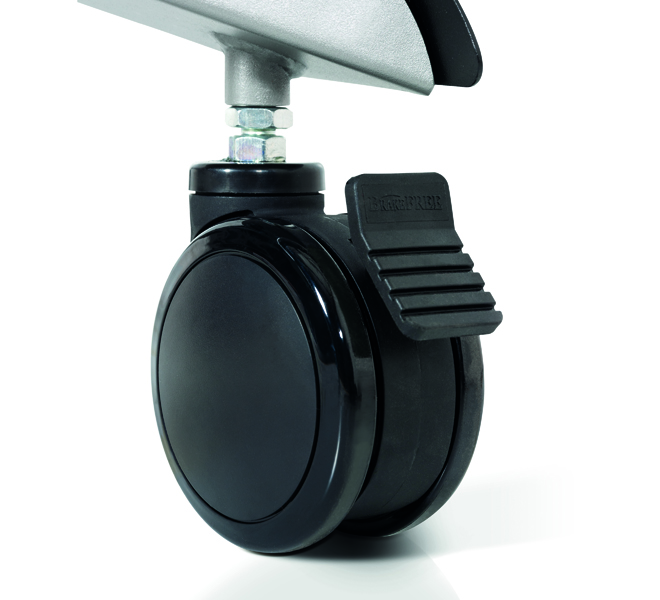

  • Non-marking locking / braked castors
  • Integrated cable management for a smart installation
  • Dual colour options available for a modern, contemporary look
  • Simple ‘hook-on’ screen installation with all mounting hardware included
  • Recomended screen size: 37" - 70"
  • Weight range for BT8567-01: 20-50kg
  • Weight range for BT8567-02: 51-70kg
  • VESA® fixings: up to 600 x 400mm
  • Trolley dimensions: H: 1932* W: 1075 D: 863mm
  • Tooless height adjustment range: 400mm
  • Rotation adjustment range: 90°
  • Tilt: -4.5°
  • Colour options: Black, Black & Silver or White

    *Measurement from floor to top of vertical column (including end cap)

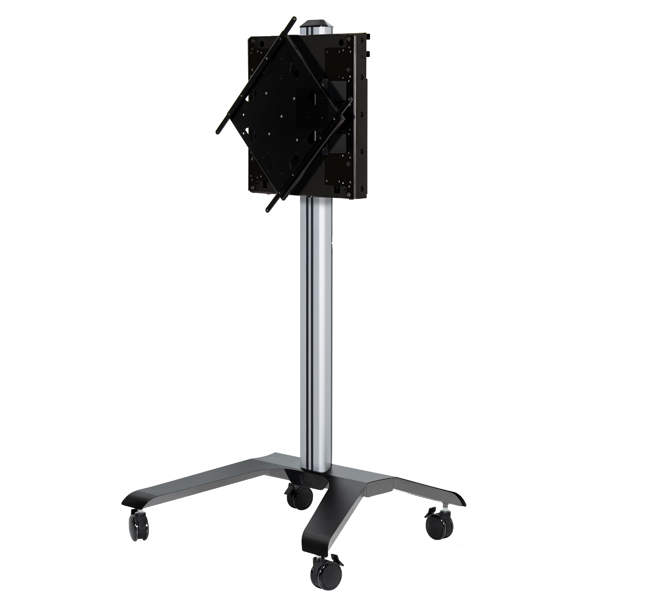

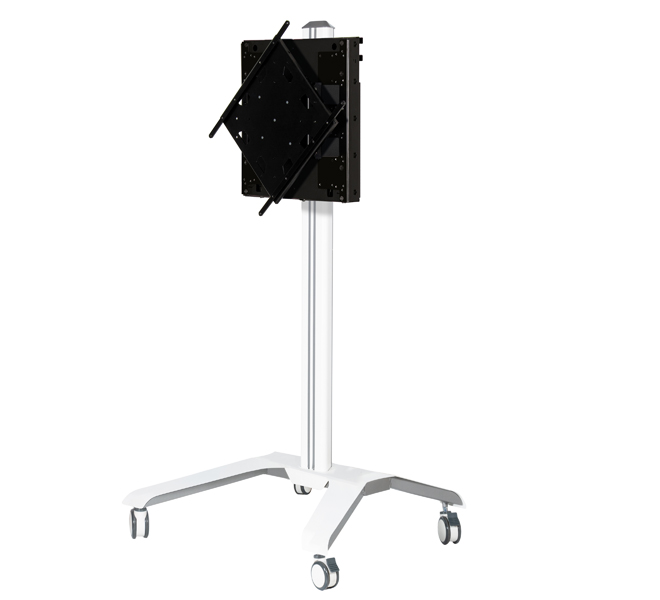

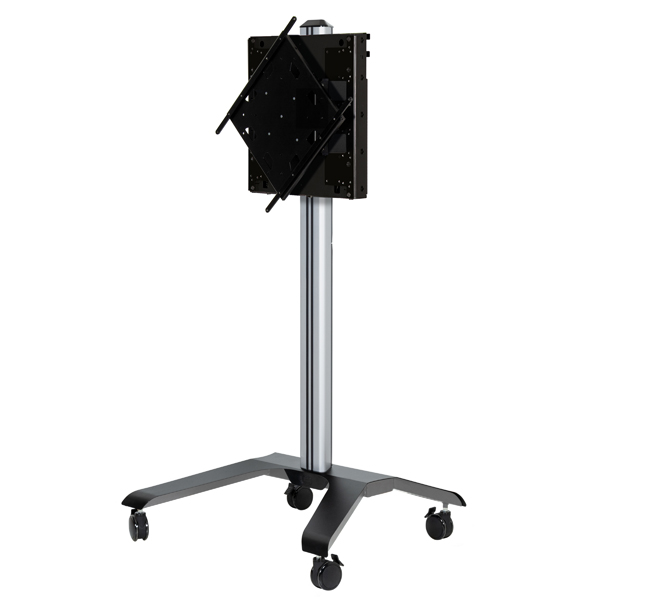

BT8567 - Flat Screen Trolley With Flip Rotation & Height Adjustment - Black BT8567 - Flat Screen Trolley With Flip Rotation & Height Adjustment - Silver / Black BT8567 - Flat Screen Trolley With Flip Rotation & Height Adjustment - White BT8567 - Designer trolley castor
BT8567 - Flip Rotation BT8567 - Height adjustment BT8567 - Flat Screen Trolley With Flip Rotation & Height Adjustment - Lifestyle BT8567 - Flat Screen Trolley With Flip Rotation & Height Adjustment - Lifestyle

Specification Sheet (PDF - English)

Specification Sheet (PDF - Polish)

Installation Guide (PDF)

Technical Drawing (PDF)
