Universal Flat Screen Wall Mount
with Tool-less Height Adjustment


For Medium / Large Screens


Featuring BalanceBox® technology, the BT8601 allows fast and effortless manual height adjustment of a mounted screen, without the use of tools. An ideal solution for mounting interactive touchscreens into education and corporate environments, the universal mounting interface adds lateral adjustment for perfect positioning of the screen and integrated cable management keeps finished installations neat and tidy.





  • Easy height adjustment for accessibility to interactive touchscreens
  • Available in three options to suit a range of weight specifications
  • Tried and tested BalanceBox technology
  • Manual height adjustment requires no electricity, or tools
  • Integrated cable management for a smart installation
  • Lateral adjustment of screen once mounted
  • Security locking screws and Allen key to help prevent unauthorised screen removal
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recomended screen size: up to 65"
  • Weight capacity range:
    BT8601-01: 19kg - 33kg
    BT8601-02: 37kg - 62kg
    BT8601-03: 63kg - 80kg
  • VESA® & non-VESA fixings: up to 600 x 400mm
  • Height adjustment range: 400mm
  • Distance from wall: 124mm

    *Please note the maximum load is reduced to 50kg when single pole mounted

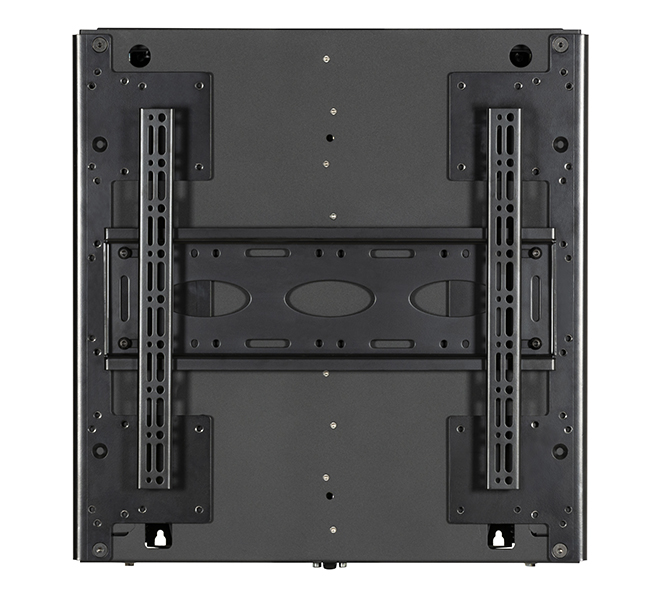

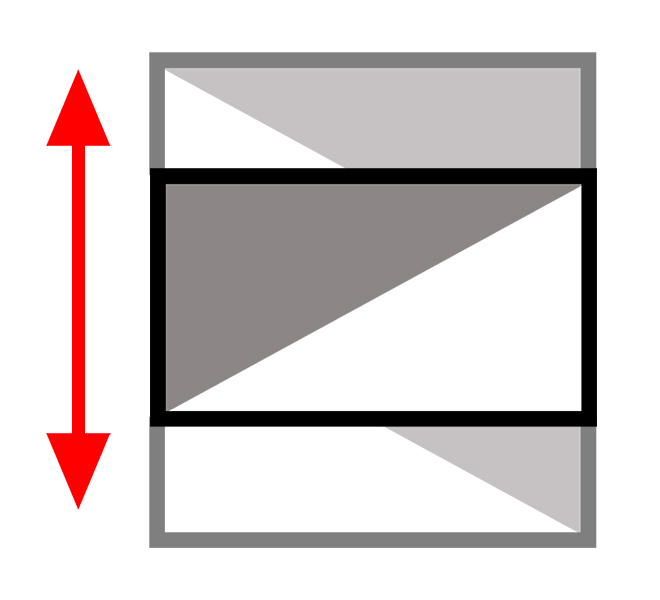

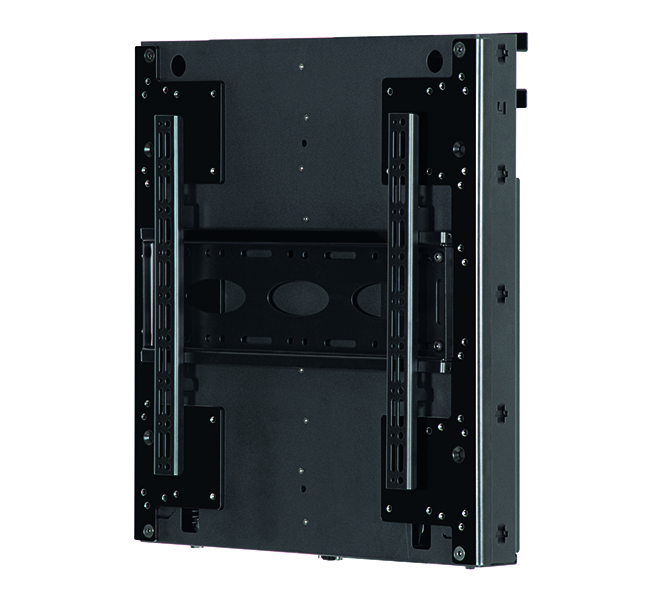

BT8601 - Balance Box BT8601 - Balance Box - Front BT8601 - Balance Box - Height adjustable BT8601 - Lateral  adjustable

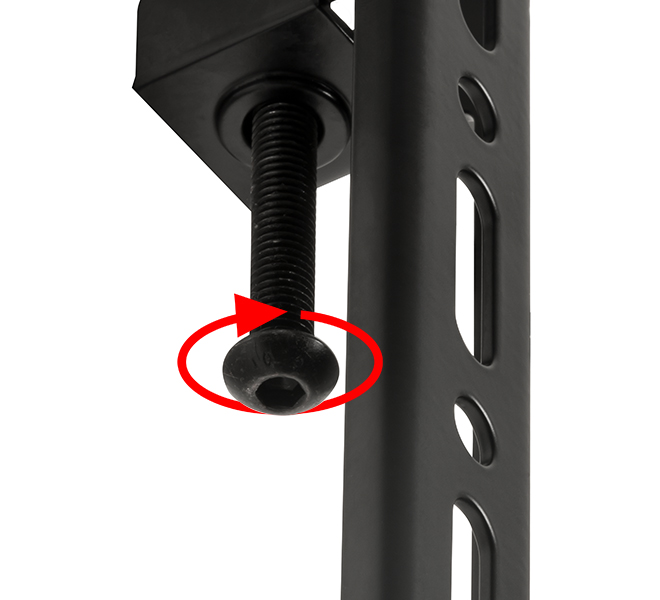

BT8601 - locking mechanism BT8601 - Balance Box - lifestyle

Specification Sheets

Specification Sheet (PDF)


Installation Guide

Installation Guide (PDF)


Technical Drawings

Technical Drawing BT8601-01 19kg - 33kg (PDF)

Technical Drawing BT8601-02 34kg - 62kg (PDF)

Technical Drawing BT8601-01 63kg - 80kg (PDF)
