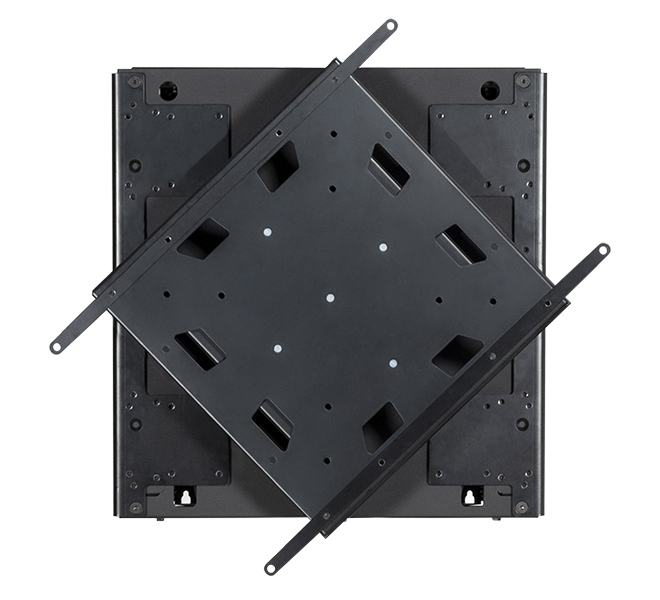

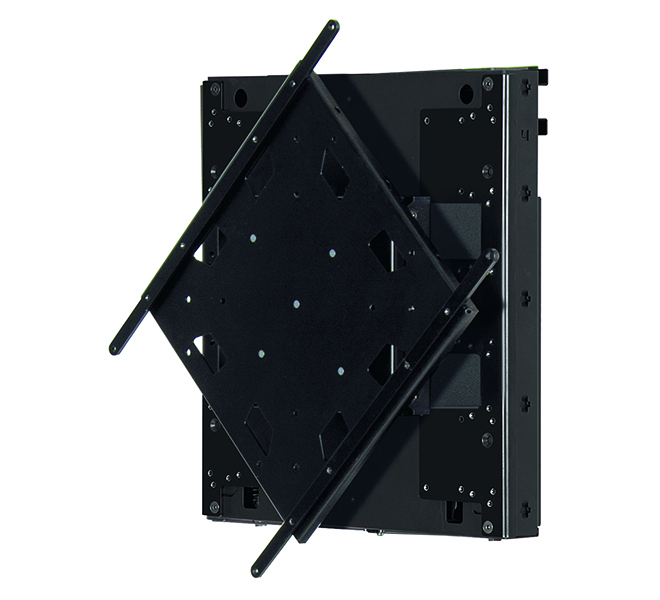

Rotational Flip Mount
with Tool-less Height Adjustment


For Medium / Large Screens


Featuring BalanceBox® technology, the BT8603 allows fast and effortless manual height adjustment of a mounted screen, without
the use of tools. An ideal solution for mounting interactive touchscreens into education and corporate environments, the interface also adds screen rotation functionality, allowing the user to quickly and easily change between landscape and portrait orientations.





  • Easy height adjustment for accessibility to interactive touchscreens
  • Allows mounted screens to rotate from landscape to portrait orientation
    (or vice versa) - ideal for the Samsung Flip® or other similar touch screens
  • Available in three options to suit a range of weight specifications
  • Rotation can be stopped and fixed at any anglebetween 0° and 90°
  • Tried and tested BalanceBox technology
  • Manual height adjustment requires no electricity, or tools
  • Features a negative tilt of 4.5 degrees for easier use of touchscreens
    (ideal for Samsung Flip)
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recomended screen size: 37" - 65"
  • Weight capacity range:
    BT8603-01: 20kg - 50kg
    BT8603-02: 51kg - 70kg
  • VESA® & non-VESA fixings: 200 x 200 up to 600 x 400mm
  • Height adjustment range: 400mm
  • Rotation adjustment range: 90°
  • Tilt: -4.5°
  • Distance from wall: 199mm

    *Please note the maximum load is reduced to 50kg when single pole mounted
Lateral adjustment of screen once mounted
BT8603 - Tilt adjustment BT8603 - Lifestyle

Specification Sheets

Specification Sheet (PDF)


Technical Drawings

Technical Drawing BT8603-01 20kg - 50kg (PDF)

Technical Drawing BT8603-02 51kg - 70kg (PDF)
