Projector Ceiling Mount

BT882

With Adjustable Drop




Designed for projectors up to 10kg, this projector mount is ideal for angled or cathedral ceilings. The BT882 features a unique 'carousel' mounting plate for universal compatabilty and a ball joint adjustment that allows easy positioning so a perfectly aligned projection can be achieved. With a maximum ceiling drop of 830mm, a hand lever provides easy adjustment of the drop once the mount has been fixed into place. Installation is simple with all mounting hardware and fixings supplied, including coverplates for a smart and tidy finish.






  • Designed to mount LCD/LED/DLP projectors up to 10kg
  • Features +/-90° tilt, +/-90° roll and 360° swivel so that a perfectly aligned
    projection can be achieved

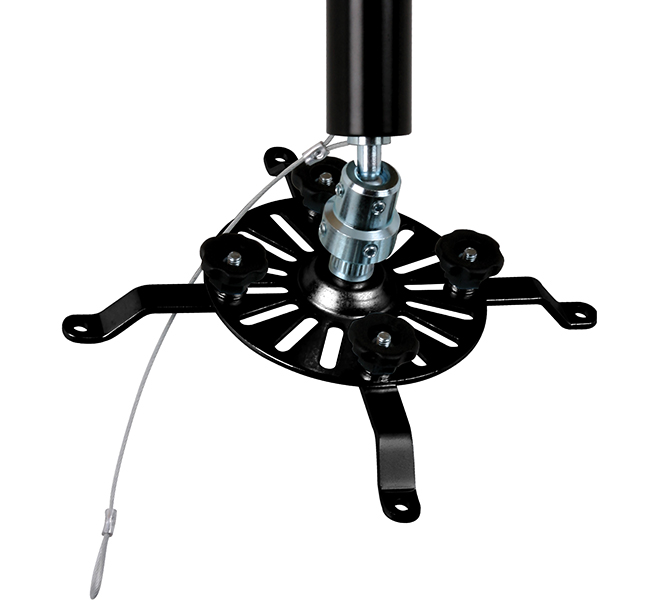

  • Unique 'carousel' mounting plate for universal compatability
  • Ball joint adjustment for easy positioning of projector
  • Hand lever for easy adjustment of ceiling drop, from 580mm to 830mm
  • Quick and easy installation
  • Cover plates included for a smart installation
  • Steel safety wire included for extra security
  • Suitable for projectors with M2.5, M3, M4, M5 and M6 fixings
  • All mounting hardware included
  • Max load: 10kg (22lbs)
  • Tilt (pitch): +/-90°
  • Roll: +/-90°
  • Yaw: +/-90°
  • Ceiling drop: 580mm (22.8") - 830mm (32.7")
  • Max distance between fixings: 340mm (13.4")
  • Colours option: Black or White

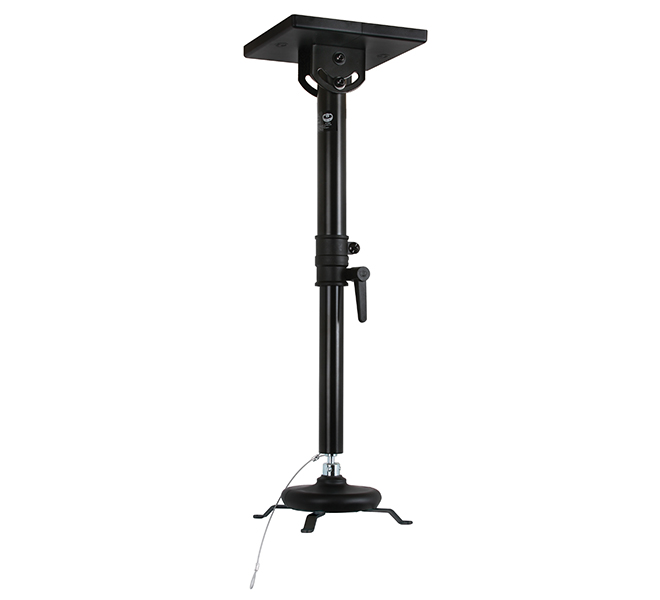

BT882 Universal Projector Ceiling Mount with Extendable Arm - Front View BT882 Universal Projector Ceiling Mount with Extendable Arm - Tilted View

Installation Guide (PDF)

Specification Sheet (PDF)
