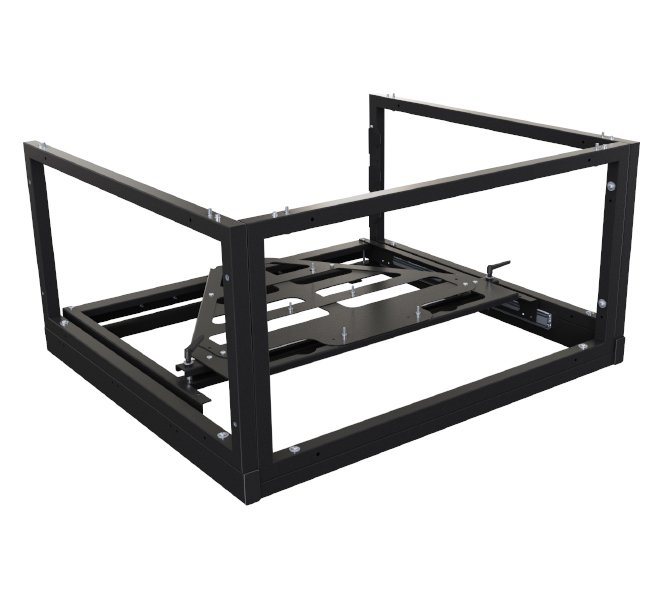

Stackable Heavy Duty Projector Floor Mount


With Pull-out Service Tray


Designed to floor mount projectors up to 75kg, this heavy duty mount can be stacked to create a column of XL projectors. The projector fixes to a slide out tray which allows for quick and easy servicing without needing to disassemble any part of the installation. Pitch, yaw and roll micro-adjustment allows easy alignment of projected images and cable management is included for a neat and tidy installation. This projector can be used independently or in conjunction with the BT898 stackable heavy duty projector mount with enhanced pitch, to meet the demand for a projector stack with increased adjustment in a chosen area.



  • Ideal for projection mapping

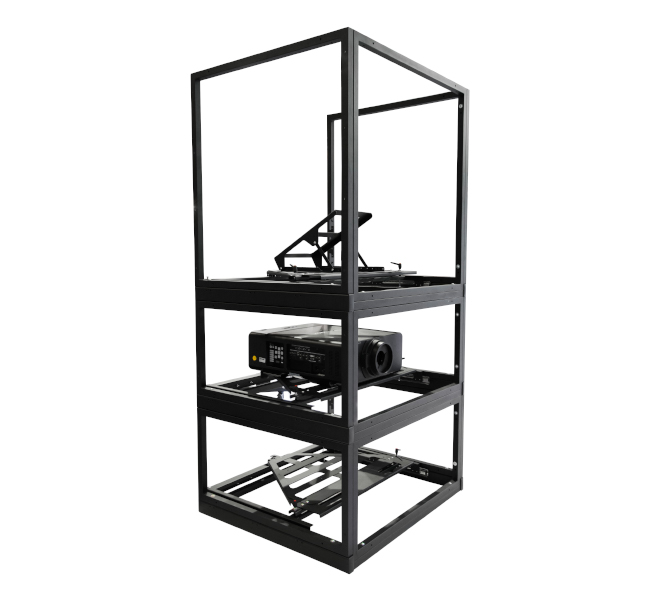

  • Modular design allows mounts to be stacked up to 4 high

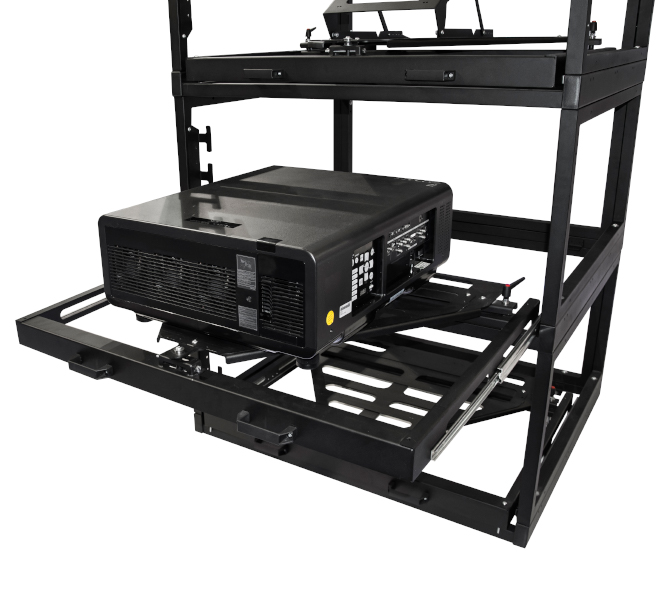

  • Projector tray slides out to allow access to the projector for servicing & adjustment*
  • Projector can be quickly connected or disconnected for off-site servicing if required
  • Tool-less micro adjustment
  • Tilt, pitch and yaw positions are maintained while projector is disconnected,
    eliminating the need to re-calibrate micro-adjustments after servicing
  • Quick and easy assembly
  • Integrated cable management
  • Open design gives suitable ventilation for projectors
  • Designed for indoor or outdoor use when protected in a sheltered environment**

    *Only one projector can be in the service position at one time
    **Projector mount must be bolted to the floor
  • Max load: 75kg (165lbs) per unit
  • Max projector size: up to W: 800mm (31.5") x D: 1000mm (39.4") x H: 350mm (13.8")
  • Tilt (Pitch): 4.5˚
  • Yaw: 2.5˚
  • Roll: 4.5˚
  • Max stack: 4 units
